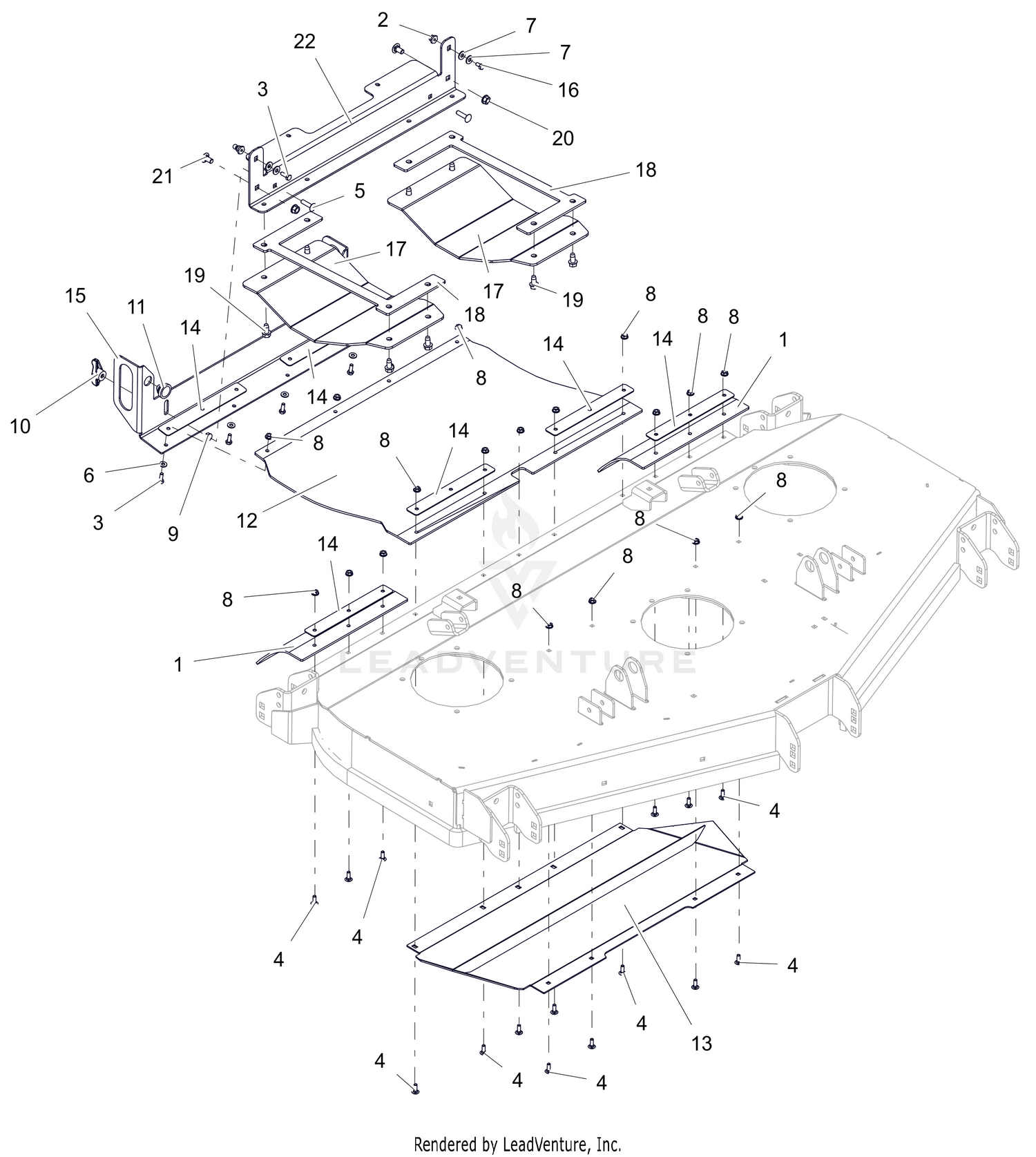

| Ref | Part Number | Description |
|---|
| 1 |
09446700 |
FLAP- REAR DISCHARGE 60" TIRE Price: $25.45 |
| 2 |
05275900 |
STUD, BALL FEMALE .250-20 THREAD Price: $8.45 |
| 3 |
05901716 |
BLT, HEX .25-20X.75 G5 ZCC Price: $0.95 |
| 4 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC Price: $0.95 |
| 5 |
06200310 |
BLT, RHSSN.31-18X1.25 G5 ZCC Price: $1.45 |
| 6 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC Price: $0.45 |
| 7 |
06401124 |
WSHR, FLT .312X.734X.065 ZCC Price: $0.95 |
| 8 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 9 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 10 |
07500105 |
KNOB,WING .31-18 UNC NYL/TALC Price: $3.45 |
| 11 |
07500429 |
COUPLING, RUBBER PUSH-IN Price: $1.95 |
| 12 |
09449000 |
CHUTE, REAR DISCHARGE Price: $79.95 |
| 13 |
09498559 |
WLDMT, DEFLECTOR BAFFLE (ORANGE) Price: $79.95 |
| 14 |
09377751 |
PLATE, CHUTE MTG (BLACK) Price: $2.95 |
| 15 |
09378659 |
HANDLE, CHUTE MOUNTING (ORANGE) Price: $56.45 |
| 16 |
05901705 |
BLT,HEX .25-20X.50 G5 ZCC Price: $0.45 |
| 17 |
09180051 |
PLATE, SKID (BLACK) Price: $44.95 |
| 18 |
09180151 |
PLATE, SKID TENSION (BLACK) Price: $14.50 |
| 19 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC Price: $1.45 |
| 20 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 21 |
06200336 |
BLT, RHSSN .38-16X.75 G5 ZCC Price: $2.45 |
