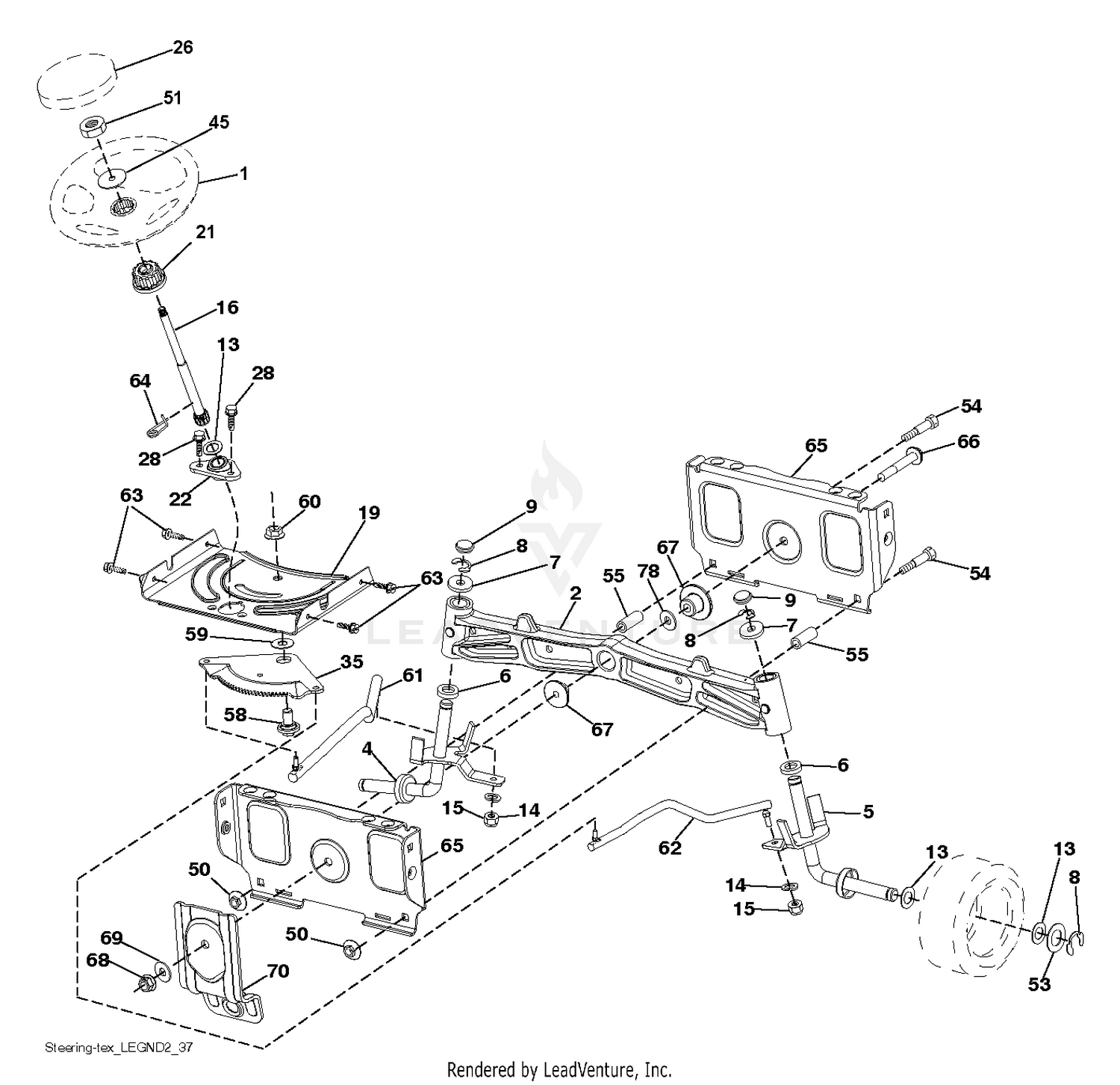

| Ref | Part Number | Description |
|---|
| 1 |
51-7740 |
STOPPER SET Price: $15.31 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD This part replaces 532416480. Price: $69.99 |
| 2 |
51-7730 |
PINION SET Price: $89.08 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 4 |
51-7600 |
SCREW SET Price: $16.49 |
| 5 |
51-7610 |
DISCONTINUED Price: Call Us |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
70-3280 |
BRACKET ASSEMBLY Price: $409.00 |
| 7 |
51-7640 |
LEVER ASM Price: $49.23 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
51-7650 |
SPRING SET Price: $25.07 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
51-7660 |
BRACKET ASM Price: $188.94 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
51-7670 |
SWITCH ASM Price: $506.66 |
| 11 |
51-7690 |
DISCONTINUED Price: Call Us |
| 12 |
70-3260 |
ARMATURE SET Price: $1,177.04 |
| 13 |
107-4398 |
BEARING This part replaces 70-3330. Price: $45.79 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
70-3310 |
BOLT SET Price: $13.66 |
| 15 |
51-7840 |
RUBBER RING Price: $4.27 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
51-7830 |
BRACKET Price: $58.39 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 17 |
70-3290 |
BRUSH HOLDER ASSEMBLY Price: $105.83 |
| 18 |
70-3270 |
DISCONTINUED Price: Call Us |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
70-3300 |
YOKE ASSEMBLY Price: $779.15 |
| 20 |
51-7790 |
PACKING Price: $14.14 |
| 21 |
51-7780 |
COVER SET Price: $28.34 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
51-7770 |
GEAR Price: $57.77 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 23 |
51-7760 |
SHAFT ASM Price: $599.61 |
| 24 |
51-7630 |
OIL SEAL Price: $43.26 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
874760636 |
BOLT Price: $4.99 |
| 55 |
532414736 |
SPACER.BRACE.AXLE Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 65 |
532194734 |
BRACE.AXLE.FRONT.NLT/N Price: $37.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
