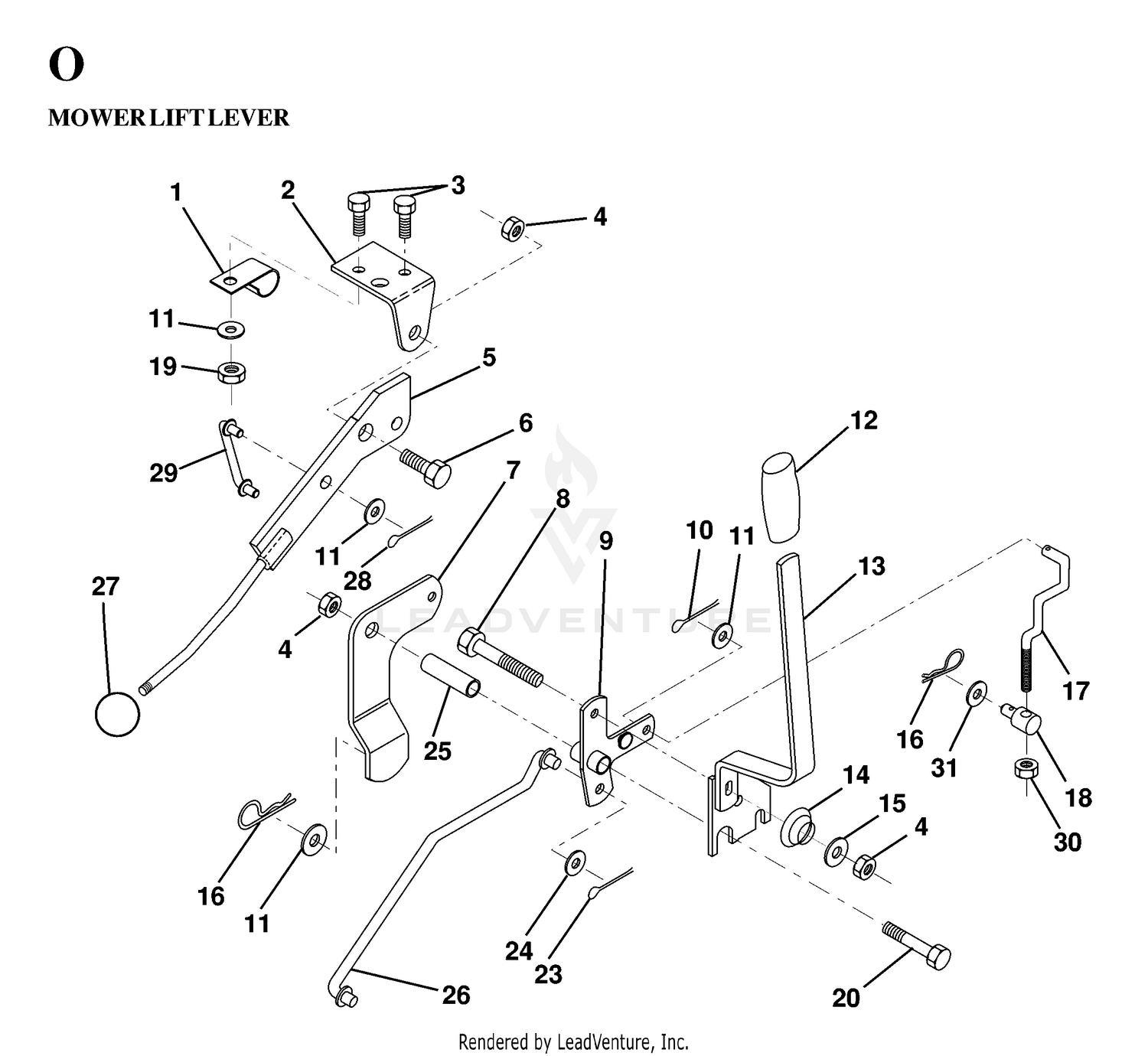

| Ref | Part Number | Description |
|---|
| 1 |
13-3740 |
DISCONTINUED Price: Call Us |
| 1 |
532126470 |
CLIP,INSULATOR Price: $3.99 |
| 2 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 2 |
532122018 |
BRKT CLUTCH Price: $2.38 |
| 3 |
5-1718 |
KEY-CLUTCH Price: $8.57 |
| 3 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 4 |
3247-3 |
SCREW-SET Price: $7.86 |
| 4 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 5 |
532145187 |
CLUTCH LEVER Price: $5.69 |
| 6 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 6 |
532106451 |
BOLT, SHOULDER LT Price: $2.99 |
| 7 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 7 |
532135371 |
ASSEMBLY MOWER CLUTCH ARM Price: $7.93 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
874760636 |
BOLT Price: $4.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 10 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 11 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
532122027 |
GRIP HANDLE Price: $5.72 |
| 13 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 13 |
532139352 |
LIFT HANDLE ASSY Price: $15.88 |
| 14 |
3219-3 |
NUT-HEX Price: $0.34 |
| 14 |
532123496 |
SPRING COMPRESSIO Price: $2.99 |
| 15 |
283-35 |
DISCONTINUED Price: Call Us |
| 15 |
596134901 |
GSPH This part replaces 819131212. Price: $2.99 |
| 16 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 16 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 17 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 17 |
532127359 |
LINK LIFT FRT Price: $19.99 |
| 18 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 13-5490. Price: $337.37 |
| 18 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 Price: $3.99 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 19 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 20 |
3217-8 |
NUT-HEX Price: $1.34 |
| 20 |
874760644 |
BOLT Price: $3.99 |
| 21 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
3247-6 |
SCREW-SET Price: $1.02 |
| 23 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 24 |
13-4880-01 |
SPROCKET This part replaces 13-4880. Price: $784.22 |
| 24 |
596040101 |
Washers This part replaces 819171612. Price: $2.99 |
| 25 |
13-0480 |
SPRING Price: $30.51 |
| 25 |
532121933 |
TUBE SPACER Price: $4.28 |
| 26 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 26 |
532141470 |
LIFT ROD Price: $14.65 |
| 27 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
532121466 |
KNOB Price: $3.99 |
| 28 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 28 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 29 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 29 |
532131655 |
LINK MOWER CLUTCH Price: $4.99 |
| 30 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 30 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 31 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 31 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 34 |
13-0160 |
DISCONTINUED Price: Call Us |
| 35 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 36 |
13-4340 |
DISCONTINUED Price: Call Us |
| 37 |
13-3710 |
WASHER Price: $3.05 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
