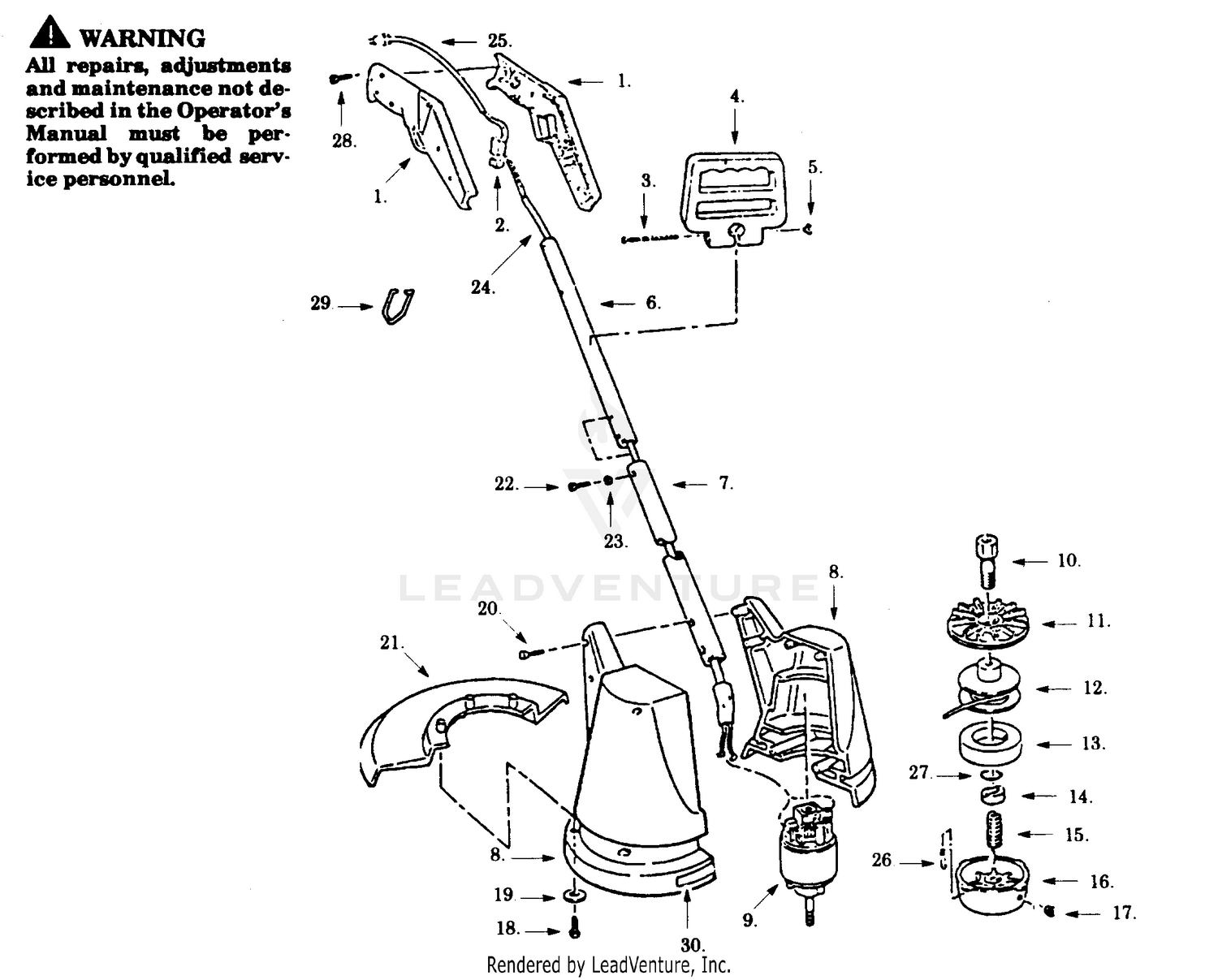

| Ref | Part Number | Description |
|---|
| 1 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 1 |
534356704 |
R.H./L.H. Handle Price: $6.99 |
| 1 |
631830 |
THROTTLE SHAFT Price: $14.54 |
| 2 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 2 |
534193001 |
Trigger Switch Price: $3.33 |
| 2 |
631036 |
SHUTTER Price: $1.20 |
| 3 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 3 |
534218100 |
Bolt Price: $1.99 |
| 3 |
650506 |
SCREW Price: $0.87 |
| 4 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 4 |
534282705 |
Side Handle Price: $3.33 |
| 4 |
630748 |
WELCH PLUG Price: $1.17 |
| 5 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 5 |
534143700 |
Wing Nut Price: $3.33 |
| 5 |
631027 |
WELCH PLUG Price: $1.17 |
| 6 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 6 |
534222502 |
Upper Handle Tube Price: $5.99 |
| 6 |
630735 |
SPRING Price: $1.25 |
| 7 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 7 |
534223200 |
Lower Handle Tube Price: $3.33 |
| 7 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 8 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 8 |
534271614 |
R.H./L.H. Housing Price: $17.99 |
| 8 |
631022 |
CLIP Price: $1.25 |
| 9 |
534225001 |
Motor Price: $3.33 |
| 9 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 10 |
534223325 |
Drive Adapter Price: $5.99 |
| 10 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 11 |
534157305 |
Rear Plate Price: $9.99 |
| 11 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 12 |
534159705 |
Spool & Line Price: $4.80 |
| 12 |
631867 |
FLOAT BOWL Price: $2.34 |
| 13 |
534158600 |
Foam Pad Price: $3.33 |
| 14 |
534156205 |
Drive Adapter Nut Price: $3.33 |
| 15 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 15 |
534157401 |
Spring Price: $0.99 |
| 16 |
534159805 |
Hub Price: $6.24 |
| 16 |
631026 |
POWER SCREW Price: $9.57 |
| 17 |
534157600 |
Eyelet Price: $1.99 |
| 17 |
631838 |
ADJ SCREW This part replaces 631078. Price: $2.71 |
| 18 |
534193800 |
Screw Price: $3.33 |
| 18 |
630740 |
O RING Price: $1.49 |
| 19 |
534653000 |
Washer Price: $0.99 |
| 19 |
630739 |
WASHER Price: $1.25 |
| 20 |
534222400 |
Screw Price: $1.99 |
| 20 |
630738 |
SPRING Price: $1.25 |
| 21 |
534272214 |
Line Cutter Guard Price: $3.33 |
| 21 |
630766 |
SPRING Price: $1.25 |
| 22 |
534970001 |
Screw Price: $3.33 |
| 22 |
650782 |
SCREW Price: $1.20 |
| 23 |
534713000 |
Lockwasher Price: $0.99 |
| 23 |
632527 |
FUEL FITTING This part replaces 631775. Price: $6.03 |
| 23A |
631808 |
FUEL FITTING Price: $9.36 |
| 23B |
632164 |
FUEL FITTING Price: $5.95 |
| 23C |
631802 |
FUEL FITTING Price: $6.48 |
| 24 |
534162401 |
Harness Price: $19.99 |
| 25 |
534234500 |
Power Cord Price: $3.33 |
| 26 |
534270300 |
Cotter Pin Price: $3.33 |
| 27 |
534316201 |
O-Ring Price: $1.99 |
| 28 |
534193700 |
Screw Price: $1.99 |
| 29 |
534270100 |
Hanger Price: $1.99 |
