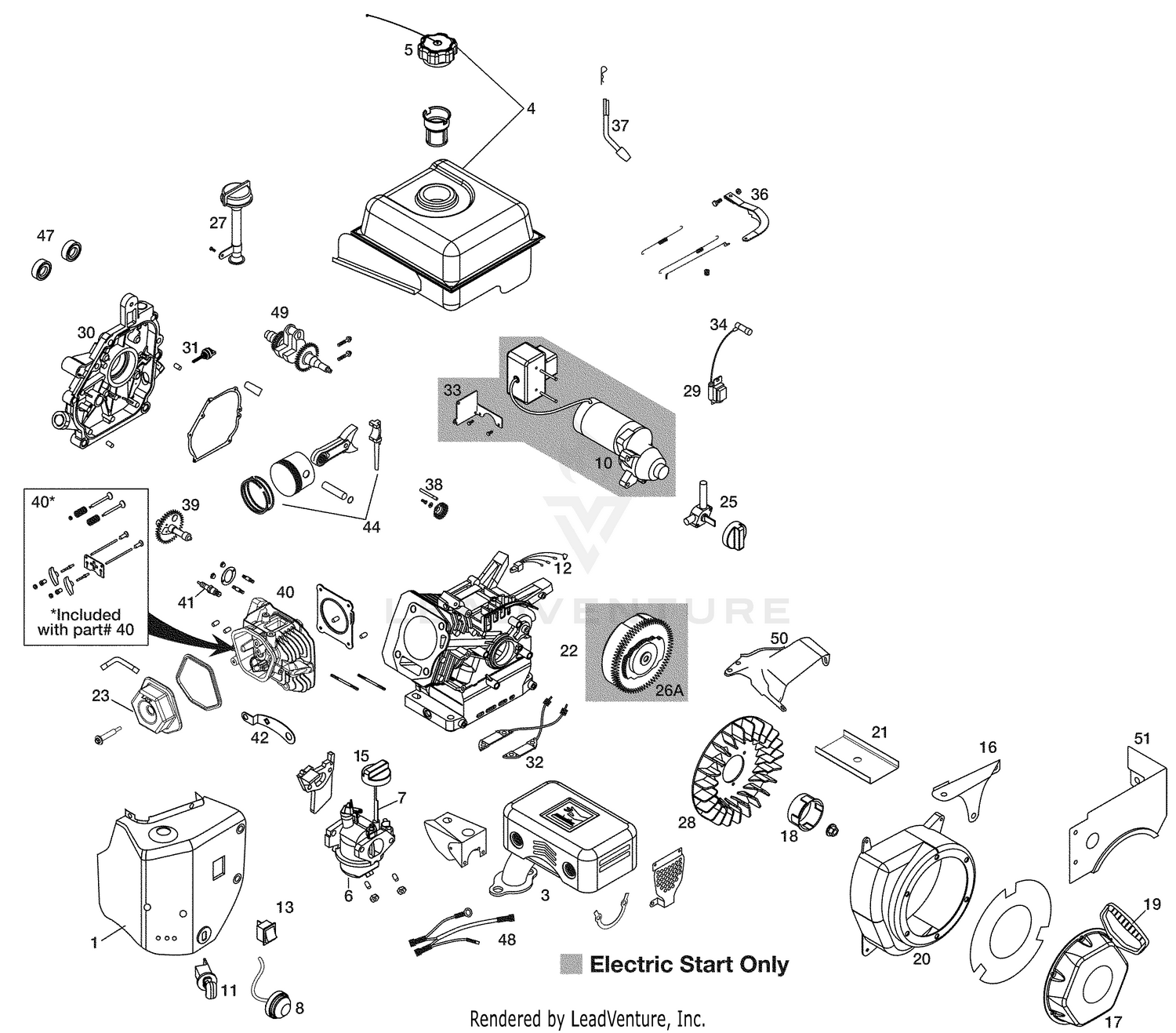

| Ref | Part Number | Description |
|---|
| 1 |
532429206 |
HEATER.BOX.ASSY.SNOW(SKSN2100) Price: $64.99 |
| 3 |
532429208 |
MUFFLER.ASSY.SNOW(SKSN4200) Price: $109.99 |
| 4 |
532429209 |
FUEL.TANK.ASSY.SNOW(SKSN4300) Price: $169.99 |
| 5 |
532424942 |
FUEL CAP OVERSIZED CLICK STYLE This part replaces 532429211. Price: $14.99 |
| 6 |
585020405 |
CARB.ASSY.W/O.SPACER.LCT.291CC This part replaces 532429215. Price: $109.99 |
| 7 |
532429216 |
CHOKE.LVR.CARB-SNOW(SKSN2303) Price: $9.99 |
| 8 |
595079601 |
PRIMER BULB.W/HOSE.LCT. This part replaces 532429218. Price: $8.99 |
| 10 |
532429220 |
ELECTRIC.START.ASSY(SKSN2400.2 Price: $349.99 |
| 11 |
532429221 |
KEY.SWITCH.ASSY.SNOW(SKSN4401) Price: $22.99 |
| 12 |
532429222 |
CDI.BOX.ASSY.SNOW(SKSN4404) Price: $11.99 |
| 13 |
532429223 |
ON/OFF.SWITCH.SNOW(SKSN4403) Price: $14.99 |
| 15 |
532429224 |
CHOKE.KNOW.SNOW(SKSN4500) Price: $7.99 |
| 16 |
532429225 |
GOVERNOR.LINK.SHIELD(SKSN2501) Price: $4.99 |
| 17 |
589524501 |
RECOIL STARTER KIT This part replaces 532429226. Price: $109.99 |
| 18 |
532429227 |
STARTER.CUP.SMALLSNOW(SKSN2601 Price: $14.99 |
| 19 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT This part replaces 532429228. Price: $14.99 |
| 20 |
532429241 |
CRANKCASE.COVER.ASY(SK2913600) This part replaces 532429229. Price: $249.99 |
| 21 |
532429231 |
SHIELD.CYLINDER.SNOW(SK4141010 Price: $3.99 |
| 22 |
532429232 |
SHIELD.U/FYWHL.CHARG(SKSN4604) Price: $4.99 |
| 23 |
532429233 |
VALVE.COVER.SNOW(SK25914500) Price: $22.99 |
| 25 |
532429234 |
FUEL.PETCOCK.SNOW(SKSN4900) Price: $14.99 |
| 26 |
532429288 |
FLYWHL.ASSY.ELECT.(SK2911701) Price: $95.99 |
| 26A |
532429289 |
FLYWHL.ASSY.MANUL.(SK2911700) Price: $89.99 |
| 27 |
532429237 |
HIGHOIL.FILL.ASSY.KIT(SKSN4911 Price: $8.99 |
| 28 |
532429238 |
FLYWHEEL.FAN Price: $14.99 |
| 29 |
532429240 |
IGNITION.COIL.ASSY Price: $39.99 |
| 30 |
532429241 |
CRANKCASE.COVER.ASY(SK2913600) Price: $249.99 |
| 31 |
532429242 |
NONREMVABLE.OIL.PLUG(SK4143715 Price: $8.99 |
| 32 |
532429243 |
CHARGING.COIL.AC/DC(SK4141710) Price: $39.99 |
| 33 |
532429290 |
ELECTRIC.START.BRKT(SKSN4405) Price: $11.99 |
| 34 |
532429291 |
SPARK.PLUG.BOOT(SK2913800.1) Price: $37.99 |
| 36 |
532429248 |
GOVERNOR.ARM.ASSY.(SKSN2502) Price: $9.99 |
| 37 |
532429250 |
GOVERNOR.SHAFT.(SK2913100) Price: $14.99 |
| 38 |
532429292 |
GOVERNOR.GEAR.ASSY(SK2912900) Price: $12.99 |
| 39 |
532429253 |
CAMSHAFT.LCT.291CC Price: $74.99 |
| 40 |
532429254 |
CYLINDER.HEAD.ASSY(SK2911000) Price: $329.99 |
| 41 |
532424939 |
SPARK.PLUG(2083810) This part replaces 532429255. Price: $14.99 |
| 42 |
532429257 |
CDI.BOX.BRKT.SNOW(SKSN4402) Price: $4.99 |
| 44 |
532429258 |
PISTON.AND.ROD.ASSY(SK2911400) Price: $84.99 |
| 46 |
532429213 |
SHIELD.VAPOR(SKSN4606) Price: $44.99 |
| 47 |
532429283 |
OIL.SEAL.KIT(SK2913900) Price: $39.99 |
| 48 |
532429284 |
WIRE.HARNESS(SKSN4406) Price: $27.99 |
| 49 |
532429285 |
CRANKSHAFT.LCT.291CC.SNOW Price: $139.99 |
| 50 |
532435579 |
TOP.SHIELD.LCT. This part replaces 532429286. Price: $7.99 |
