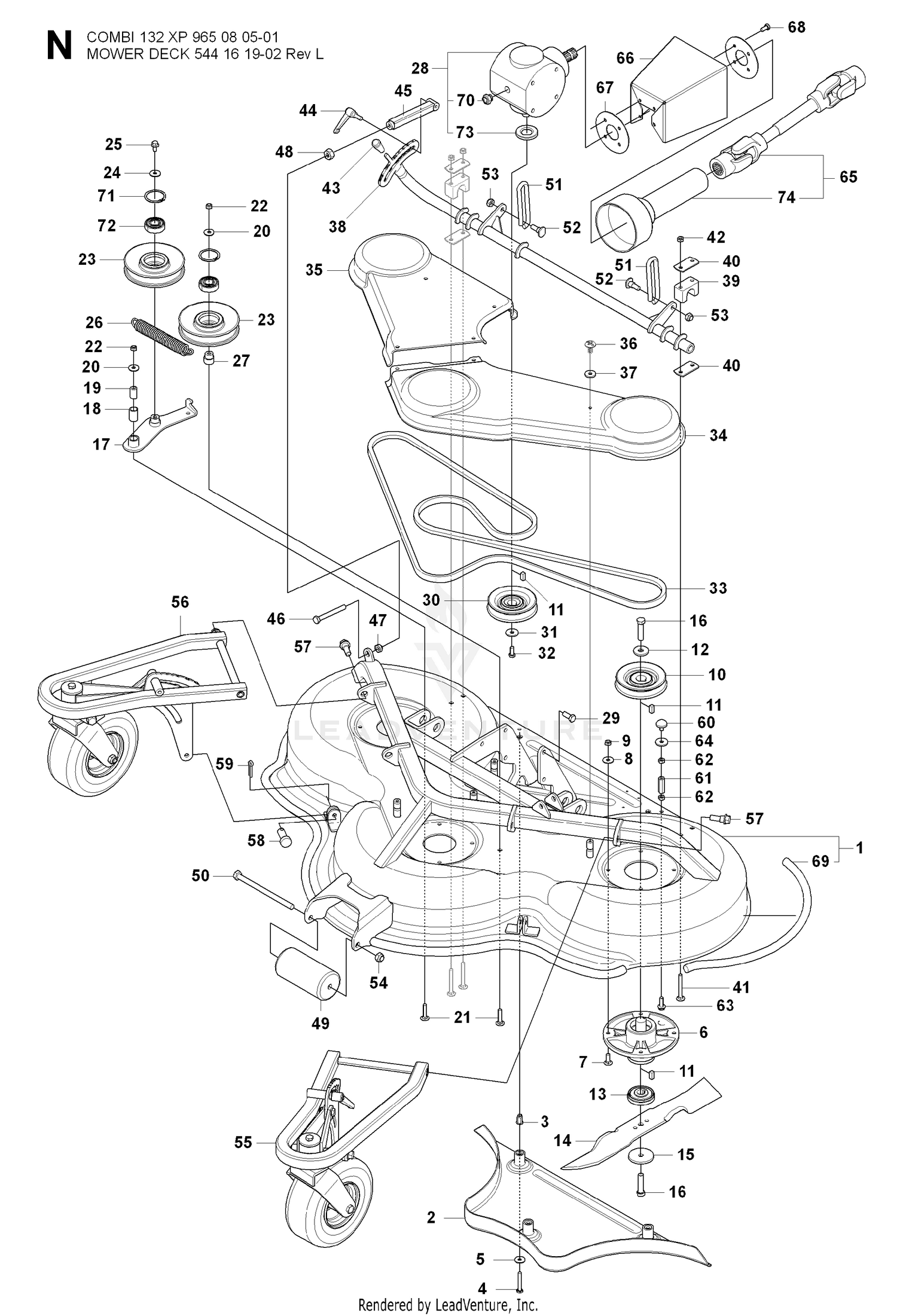

52"/132CM CUTTING DECK 2
Parts (94)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3234-1 | SCREW-HHF Price: $1.62 |
| 1 | 544162502 | CUTTING DECK ASSY C132 Price: $1,299.99 |
| 2 | 119-6972 | VARIABLE HYDRAULIC PUMP ASM Price: $3,033.39 |
| 2 | 544166201 | PLUG Price: $285.99 |
| 3 | 140-6248 | DAMPER This part replaces 76-8870. Price: $159.54 |
| 3 | 506916203 | BLIND RIVET NUT Price: $7.99 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 725246151 | BOLT Price: $4.99 |
| 5 | 125-8822-0P | PLATE-PUMP This part replaces 125-8822-03. Price: $12.30 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 3234-38 | SCREW-HHF Price: $3.33 |
| 6 | 535428602 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 32128-49 | NUT-HHF Price: $1.04 |
| 7 | 535423801 | BOLT Price: $4.99 |
| 8 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 9 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 10 | 340-105 | FITTING-ELBOW, 90 DEG Price: $39.67 |
| 10 | 544183701 | PULLEY SPB DP112 COMPLETE Price: $44.99 |
| 11 | 32128-20 | NUT-HF Price: $0.99 |
| 11 | 506533501 | KEY Price: $3.99 |
| 12 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 12 | 535429201 | Price: Call Us |
| 13 | 322-10 | SCREW-HH Price: $0.70 |
| 13 | 535504201 | Price: Call Us |
| 14 | 321-9 | SCREW-HH Price: $0.27 |
| 14 | 586198810 | BLADE REAR DISCHARGE/MULCH C13 Price: $34.99 |
| 15 | 127-2356-0P | BRKT-CABLE [PRIMED] This part replaces 127-2356-03. Price: $56.76 |
| 15 | 506792302 | WASHER Price: $12.99 |
| 16 | 2411-41 | ROD END-BALL JOINT Price: $40.28 |
| 16 | 725254251 | Screw Price: $4.99 |
| 17 | 115-5300 | PROXIMITY SWITCH ASM Price: $137.95 |
| 17 | 544175501 | BELT TENSIONER CUTTING DECK Price: $74.99 |
| 18 | 117-0265 | LEVER-PUMP Price: $74.01 |
| 18 | 506986103 | Price: $8.66 |
| 19 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 19 | 506992001 | BUSHING Price: $9.99 |
| 20 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 20 | 734116441 | SPACER Price: $3.99 |
| 21 | 32151-72 | RING-RETAINING Price: $1.59 |
| 21 | 727645951 | Screw Mvbf 8 X 40 Price: $2.28 |
| 22 | 3230-6 | BOLT-CARR Price: $0.59 |
| 22 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 23 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 23 | 544396501 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 734116441 | SPACER Price: $3.99 |
| 25 | 725244961 | BOLT FLANGE - M8X16 Price: $7.99 |
| 26 | 544218105 | DRAW SPRING L=122 Price: $14.99 |
| 27 | 535484801 | BUSHING Price: $22.99 |
| 28 | 544183401 | BEVEL GEAR Price: $1,199.99 |
| 29 | 725249371 | Screw M10x25 Price: $1.82 |
| 30 | 544184301 | PULLEY SPB DP112 Price: $37.99 |
| 31 | 544221601 | NEEDS DESCRIPTION Price: Call Us |
| 32 | 725245151 | SCREW 8X20 Price: $4.99 |
| 33 | 589535201 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 544184501 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 544184601 | BELT COVER C132 R Price: $149.99 |
| 36 | 506982601 | SCREW Price: $5.99 |
| 37 | 506559701 | WASHER Price: $4.99 |
| 38 | 544175201 | CROSS BAR Price: $119.99 |
| 39 | 501976801 | BEARING COVER Price: $27.99 |
| 40 | 506813801 | PLATE Price: $5.99 |
| 41 | 535423802 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 43 | 535438201 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 544196801 | TURNING KNOB M 8 Price: $17.99 |
| 45 | 544201001 | PARALLEL ROD C 132 Price: $59.99 |
| 46 | 725250971 | SCREW Price: $6.99 |
| 48 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 49 | 539002472 | ROLLER This part replaces 544185401. Price: $77.99 |
| 50 | 544221001 | Price: Call Us |
| 51 | 544185001 | LINK Price: $17.99 |
| 52 | 544214301 | SCREW LINK Price: $11.99 |
| 53 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 54 | 732252201 | Nut Price: $2.65 |
| 55 | 544173201 | WHEEL SUSPENSION LEFT Price: $699.99 |
| 56 | 544173202 | WHEEL SUSPENSION RIGHT Price: $699.99 |
| 57 | 506895801 | BOLT Price: $6.99 |
| 58 | 721845601 | Price: $16.32 |
| 59 | 721618301 | Split Pin Price: $1.99 |
| 60 | 501976601 | ANTIVIBRATION ELEMENT Price: $8.99 |
| 61 | 544317601 | NEEDS DESCRIPTION Price: Call Us |
| 62 | 731231801 | NUT Price: $3.99 |
| 63 | 506570104 | BOLT Price: $4.99 |
| 64 | 734116441 | SPACER Price: $3.99 |
| 65 | 525571201 | NEEDS DESCRIPTION Price: Call Us |
| 66 | 522750001 | NEEDS DESCRIPTION Price: Call Us |
| 67 | 522750101 | NEEDS DESCRIPTION Price: Call Us |
| 68 | 725244951 | BOLT - M8X16 This part replaces 725244971. Price: $2.99 |
| 69 | 522523501 | NEEDS DESCRIPTION Price: Call Us |
| 70 | 525249701 | NEEDS DESCRIPTION Price: Call Us |
| 71 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 72 | 738220419 | BALL-BEARING 6204-2RS Price: $14.99 |
| 73 | 525249801 | NEEDS DESCRIPTION Price: Call Us |
| 74 | 522750201 | NEEDS DESCRIPTION Price: Call Us |
