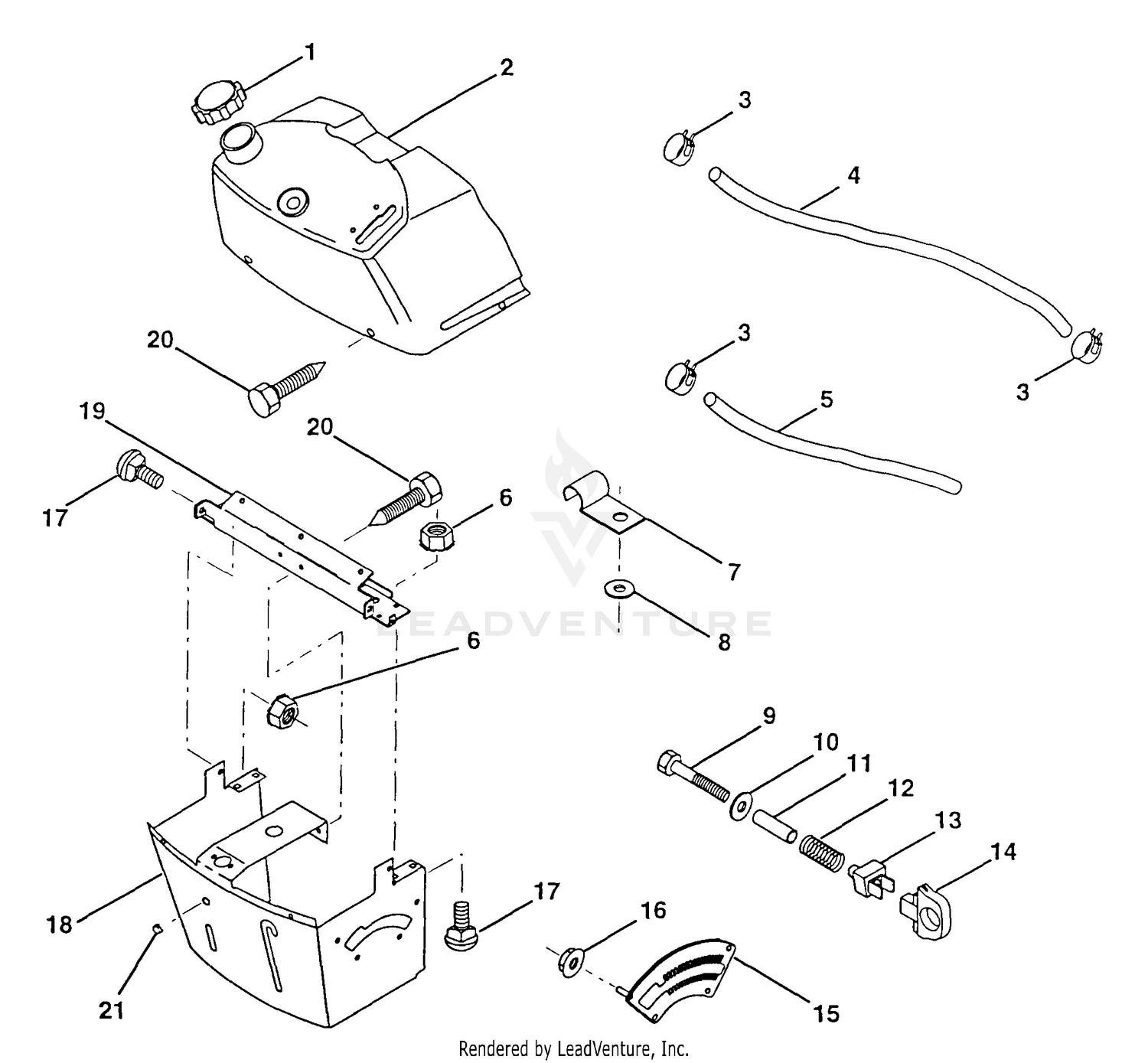

| Ref | Part Number | Description |
|---|
| 0 |
632370A |
CARBURETOR Price: $95.04 |
| 1 |
133-2375 |
BRUSH-WAVE, 18 INCH FAIRWAY Price: $142.87 |
| 1 |
141523 |
Cap, Fuel Price: Call Us |
| 1 |
631776A |
SHAFT & LEV Price: $12.00 |
| 2 |
132-7118 |
SHAFT-BRUSH Price: $255.38 |
| 2 |
138393 |
Assembly, Dash & Fuel Tank Price: Call Us |
| 2 |
631970 |
RET SPRING Price: $3.00 |
| 3 |
123487X |
Clamp, Hose Price: Call Us |
| 4 |
8544R |
Line, Fuel (AYP part number) Price: Call Us |
| 5 |
8548R |
Line, Fuel Price: Call Us |
| 6 |
631778 |
SHUTTER Price: $1.20 |
| 6 |
73640400 |
Nut, Hex, Keps 1/4-20 Price: Call Us |
| 7 |
2751R |
Clip, Fuel Line Price: Call Us |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 9 |
74760428 |
Bolt, Hex, Fin 1/4-20 x 1-3/4 (AYP part number) Price: Call Us |
| 10 |
19091413 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 10 |
632112 |
SHAFT & LEV Price: $5.21 |
| 11 |
121249X |
Spacer, Split Price: Call Us |
| 12 |
3720R |
Spring Price: Call Us |
| 13 |
126450X |
Clip, Height Adjustment Price: Call Us |
| 14 |
126115X |
Knob, Height Stop Price: Call Us |
| 14 |
632174 |
SHUTTER Price: $2.95 |
| 15 |
122023X |
Adjustment, Quadrant Height Price: Call Us |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
124346X |
Nut, Self-Threading 3/16-18 Price: Call Us |
| 16 |
632164 |
FUEL FITTING Price: $5.95 |
| 17 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 17 |
72110404 |
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 Price: Call Us |
| 18 |
130745 |
Support Assembly, Dash Price: Call Us |
| 18 |
630766 |
SPRING Price: $1.25 |
| 19 |
134744 |
Brace, Cross Price: Call Us |
| 20 |
17060408 |
Screw, Self-Tapping 1/4-20 x 1/2 Price: Call Us |
| 20 |
632281 |
IDLE SCREW Price: $2.60 |
| 21 |
630766 |
SPRING Price: $1.25 |
| 22 |
630739 |
WASHER Price: $1.25 |
| 23 |
630740 |
O RING Price: $1.49 |
| 25 |
631951 |
FLOAT BOWL Price: $12.35 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
632816 |
FLOAT This part replaces 632802. Price: $5.90 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
27136A |
DRAIN ASSY Price: $5.96 |
| 33 |
27554 |
GASKET Price: $1.05 |
| 40 |
632239 |
POWER SCREW Price: $10.32 |
| 41 |
630740 |
O RING Price: $1.49 |
| 42 |
630739 |
WASHER Price: $1.25 |
| 43 |
630738 |
SPRING Price: $1.25 |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
