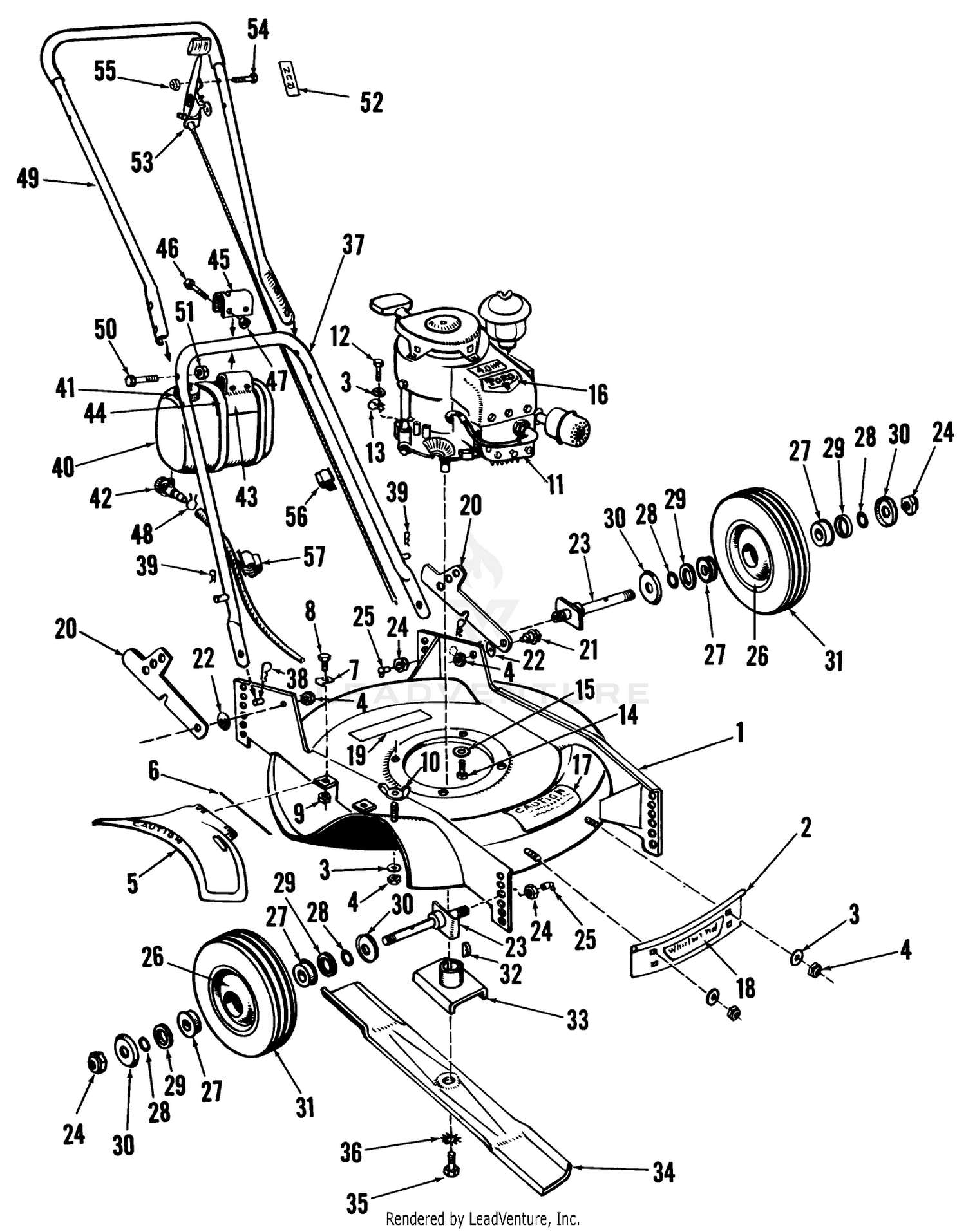

| Ref | Part Number | Description |
|---|
| 1 |
3-9960 |
Housing Price: Call Us |
| 2 |
3-4412 |
Guard Price: Call Us |
| 3 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
3-2644 |
HINGE PIN Price: Call Us |
| 7 |
3-2123 |
Clamp Price: Call Us |
| 8 |
321-4 |
SCREW-HH Price: $0.99 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
3-2625 |
Wing Nut Price: Call Us |
| 11 |
221-225 |
Engine Price: Call Us |
| 12 |
322-7 |
SCREW-HH Price: $0.89 |
| 14 |
322-4 |
SCREW-HH Price: $0.35 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
3-5301 |
Decal Price: Call Us |
| 18 |
3-4813 |
Decal Price: Call Us |
| 19 |
3-6432 |
Decal Price: Call Us |
| 20 |
3-2656 |
Latch Price: Call Us |
| 21 |
5-2490 |
SCREW-SHOULDER This part replaces 3-1846. Price: $8.25 |
| 22 |
3290-211 |
WASHER-SPRING Price: $4.89 |
| 23 |
3-4059 |
Spindle Assembly (Incl. Ref. No.25) Price: Call Us |
| 24 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 25 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
237-30 |
O-RING Price: $2.50 |
| 29 |
3-4417 |
Washer Price: Call Us |
| 30 |
3-4416 |
SLINGER Price: Call Us |
| 32 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 33 |
3-8570 |
BLADE RETAINER WA Price: Call Us |
| 34 |
3-5215 |
Blade Price: Call Us |
| 35 |
3-5246 |
SPECIAL SCREW Price: Call Us |
| 37 |
3-6850 |
Lower Handle Price: Call Us |
| 38 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 39 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 41 |
222-15 |
Cap Price: Call Us |
| 43 |
3-6345 |
FUEL TANK BRACKET Price: Call Us |
| 44 |
3-6346 |
TANK STRAP Price: Call Us |
| 45 |
22-5060 |
Clamp This part replaces 3-6477. Price: Call Us |
| 48 |
2412-36 |
CLAMP-HOSE This part replaces 2210-87. Price: $1.28 |
| 49 |
26-7840 |
UPPER HANDLE This part replaces 2-4549. Price: $119.83 |
| 50 |
321-8 |
SCREW-HH Price: $0.34 |
| 51 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 52 |
3-2067 |
Decal Price: Call Us |
| 53 |
29-6720 |
Control, Throttle This part replaces 3-5136. Price: Call Us |
| 55 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 56 |
WA-85 |
Clamp Price: Call Us |
