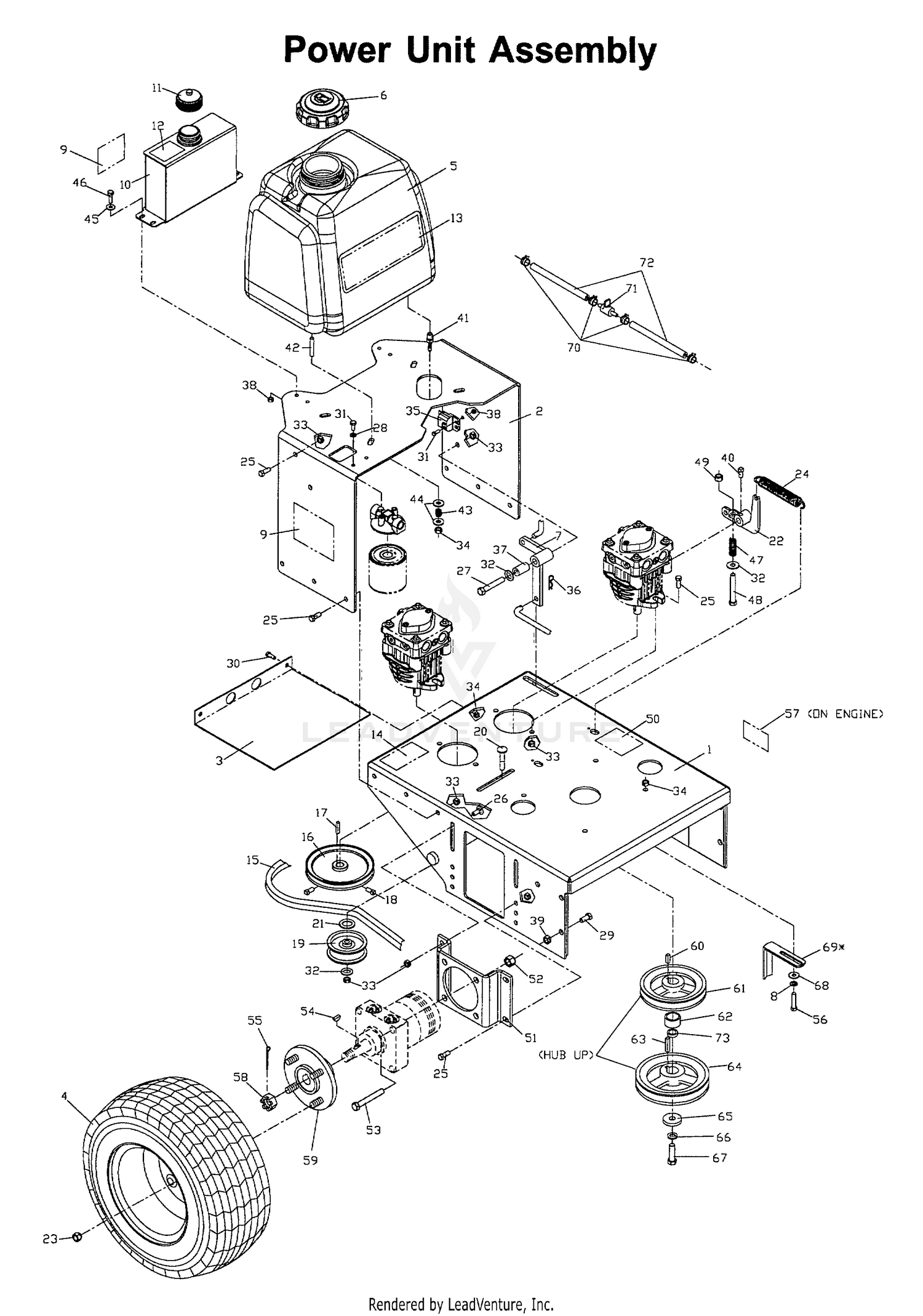

DRIVE

DRIVE

Parts (75)

RefPart NumberDescription
1 539106560 REAR DECK W/DECALS Price: $47.42
2 539105922 TANK SUPPORT Price: $97.35
3 539104547 LOWER BELT SHIELD Price: $37.99
4 539104553 WHEEL, COMPLETE Price: $110.99
5 539105630 FUEL TANK Price: $201.99
6 539130394 FUEL CAP, GENERIC This part replaces 539106188. Price: $27.99
8 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99
9 539104789 DECAL, CROWN H Price: $3.10
10 539105985 OIL TANK BLK Price: $131.99
11 539101202 HYDRAULIC CAP Price: $19.99
12 539105301 DECAL, MOBIL 1 Price: $3.99
13 539104792 DECAL, WH4817 Price: $12.25
14 539105744 DECAL, BELT DRIVE Price: $5.99
15 539101228 TRANSMISSION BELT Price: $37.99
16 539102228 PULLEY Price: $42.99
17 539101177 KEY 5 MM SQ X 25 MM Price: $4.99
18 539102717 SCREW 5/16C X 5/8 SQ HEAD Price: $2.99
19 539919078 IDLER PULLEY Price: $27.99
20 595901401 Bolts This part replaces 539100145. Price: $2.99
21 595316401 Washers This part replaces 539990550. Price: $2.99
22 539105913 PUMP ARM WELDMENT Price: $59.99
23 587653903 Nuts This part replaces 539101173. Price: $3.99
24 539916159 SPRING-TRANS Price: $5.99
25 596564401 Bolts This part replaces 539990563. Price: $3.99
26 595316801 Bolts This part replaces 539990645. Price: $3.99
27 539990588 HCS 3/8C X 2 Price: $3.99
28 596564801 Washers This part replaces 539990052. Price: $1.99
29 596238601 Bolts This part replaces 539100143. Price: $2.99
30 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99
31 596582501 Bolts This part replaces 539990072. Price: $2.99
32 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
33 595305901 Nuts This part replaces 539990546. Price: $2.99
34 596580701 Nuts This part replaces 539990184. Price: $2.99
35 539101781 MODULE Price: $54.99
36 596580601 Pins This part replaces 539976988. Price: $3.99
37 539101836 BUSHING, SLEEVE Price: $2.99
38 539990761 NUT 1/4C CENTER LOCK Price: $2.99
39 539990839 NUT 7/16C CENTERLOCK Price: $2.99
41 539102650 HOSE BARB 90 DEGREE Price: $4.99
42 539102502 STUD, 5/16C Price: $8.99
43 539102845 SPRING Price: $2.99
44 596134901 GSPH This part replaces 539990692. Price: $2.99
45 597338501 Washers This part replaces 539990598. Price: $12.99
46 596230901 Screws This part replaces 539990580. Price: $2.99
47 539101224 SPRING Price: $19.99
48 539106492 HEX SCREW 3/8-20 X 2.75 Price: $2.99
49 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
50 596024201 DECALS.WARN.CA.SPKARREST/PROP This part replaces 539101881. Price: $1.99
51 539102220 MOTOR MOUNT, 48 Price: $30.85
52 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
53 539101332 HCS 1/2C X 2 3/4 Price: $4.99
54 539101465 KEY, #808 WOODRUFF Price: $2.99
55 539990297 COTTER PIN Price: $2.99
56 874780528 SCREW This part replaces 539990669. Price: $4.99
57 539100128 DECAL, EXHAUST Price: $1.99
58 539101468 NUT 3/4-16 HEX SLTD GR5 ZD Price: $2.99
59 539101109 HUB.WHEEL.ZTR Price: $84.99
60 539102067 KEY 1/4 SQ X 3/4 Price: $2.99
61 539101719 PULLEY Price: $84.99
62 539101720 SPACER Price: $12.99
63 539101995 KEY 1/4 SQ X 1 1/8 Price: $2.99
64 539101834 PULLEY, ENGINE Price: $49.99
65 596770301 Washers This part replaces 539106504. Price: $4.99
66 596238901 Washers This part replaces 539990247. Price: $2.99
67 539100141 HCS 7/16F X 1 1/2 Price: $7.99
68 596134901 GSPH This part replaces 539990692. Price: $2.99
69 539102036 BELT GUIDE Price: $14.99
70 539912222 HOSE CLAMP Price: $2.99
71 539916325 FUEL VALVE Price: $9.99
72 539932956 GAS LINE 10" Price: $6.99
73 539102050 BUSHING, 10GA MACHINERY Price: $2.99
539101548 539101548 TIRE Price: $49.53
539103462 539103462 BELT GUIDE - LONG Price: $9.99
539104628 539105805 TIRE/WHEEL ASSY This part replaces 539104628. Price: $159.99
539912234 539912234 VALVE STEM TR-412 Price: $3.99
