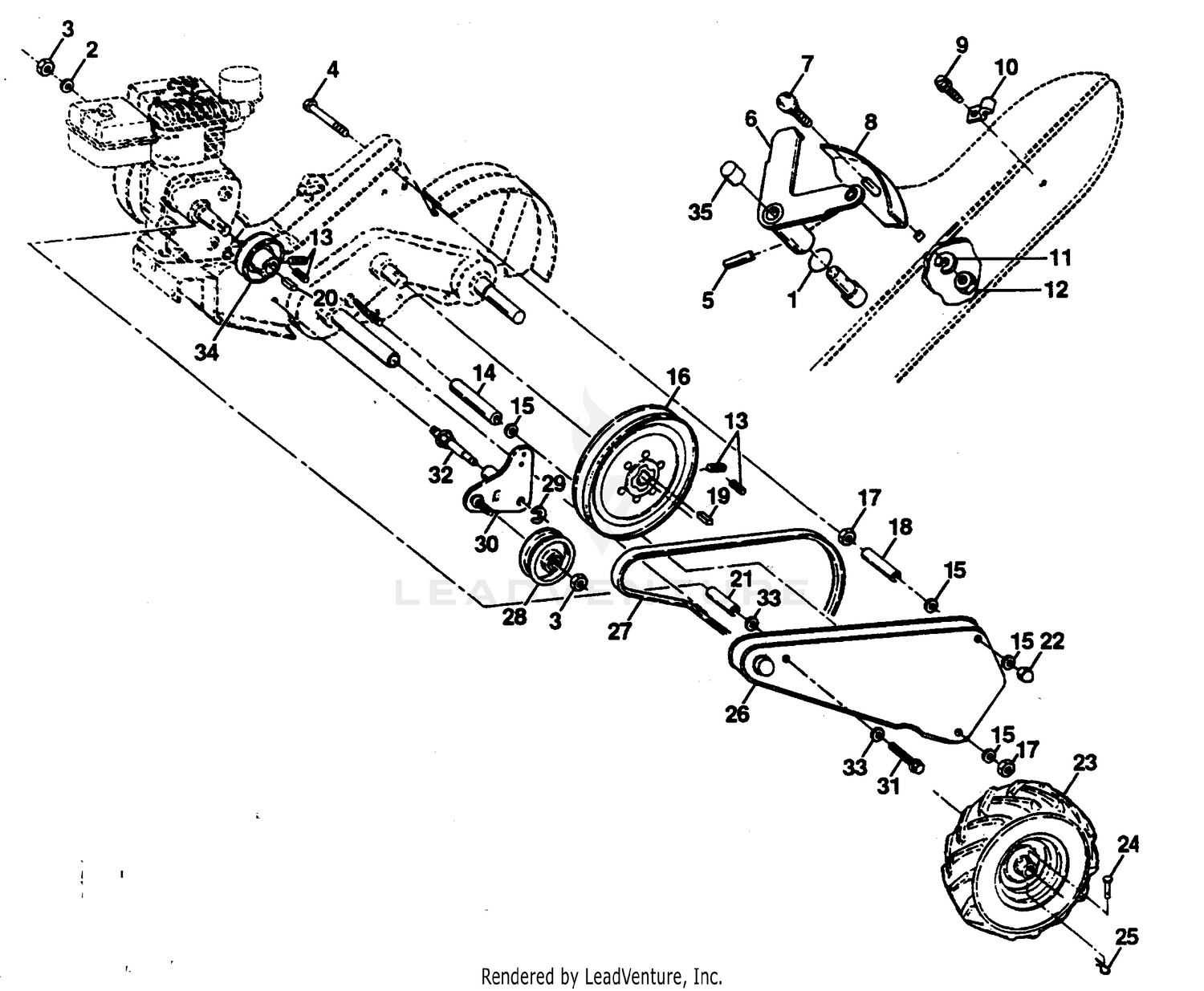

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
532106160 |
O-Ring Price: $3.99 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 3 |
873220600 |
Nut, Hex 3/8-16 Price: $3.99 |
| 4 |
874930572 |
Bolt, Hex Head 5/16-18 x 4-1/2 Price: $1.99 |
| 4 |
99-6940-03 |
AXLE SUPPORT ASM Price: $974.39 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
532002882 |
DRIVE PIN This part replaces 532124963. Price: $2.99 |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 6 |
532110111 |
Lever, Shift Price: $11.99 |
| 7 |
872110404 |
Bolt, Carriage 1/4-20 x 1/2 Grade 5 Price: $3.99 |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 8 |
532008700 |
Plate, Shift Indicator Price: $2.99 |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 9 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 This part replaces 532086777. Price: $1.99 |
| 10 |
532009484 |
Clip Price: $3.99 |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
810040400 |
Washer, Lock 1/4 Price: $3.99 |
| 12 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
823230506 |
Screw, Set, Hex 5/16-18 x 3/8 Price: $2.99 |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 14 |
532008382 |
Spacer, Split Price: $2.38 |
| 15 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 16 |
532100473 |
Sheave, Transmission Price: $30.75 |
| 17 |
873220500 |
Nut, Hex 5/16-18 Price: $3.99 |
| 18 |
532008381 |
Spacer Price: $2.99 |
| 19 |
532002649 |
Key, Square 3/16 x 1-1/8 Price: $2.99 |
| 20 |
532004914 |
Key, Square Price: $2.99 |
| 21 |
532139155 |
Spacer, Split .523 x .718 x 2 Price: $2.99 |
| 22 |
532104214 |
Nut, Cap 5/16-18 Price: $2.99 |
| 23 |
532005015 |
Tire Price: $97.99 |
| 24 |
532004929 |
Rivet, Drilled Price: $3.99 |
| 25 |
532004921 |
Retainer Spring This part replaces 532124961. Price: $3.99 |
| 26 |
532144565 |
Guard, Belt Price: Call Us |
| 27 |
532138399 |
V-Belt Price: $35.99 |
| 28 |
532004371 |
PULLEY, IDLER This part replaces 532104680. Price: $11.49 |
| 29 |
812000032 |
Ring, Klip Price: $3.99 |
| 30 |
532159229 |
BRACKET.ASM.IDLER This part replaces 532105611. Price: $18.99 |
| 31 |
874770844 |
Bolt, Hex Head 1/2-20 x 2-3/4 Price: $2.99 |
| 32 |
532139401 |
Shaft, Idler Arm Price: $4.99 |
| 33 |
532052160 |
Washer This part replaces 819171616. Price: $3.99 |
| 34 |
532004368 |
Sheave, Engine Price: $13.99 |
| 532005014 |
Rim |
Price: $122.99 532005014 |
| 532065139 |
Stem |
Valve This part replaces 532124718. Price: $5.99 532065139 |
