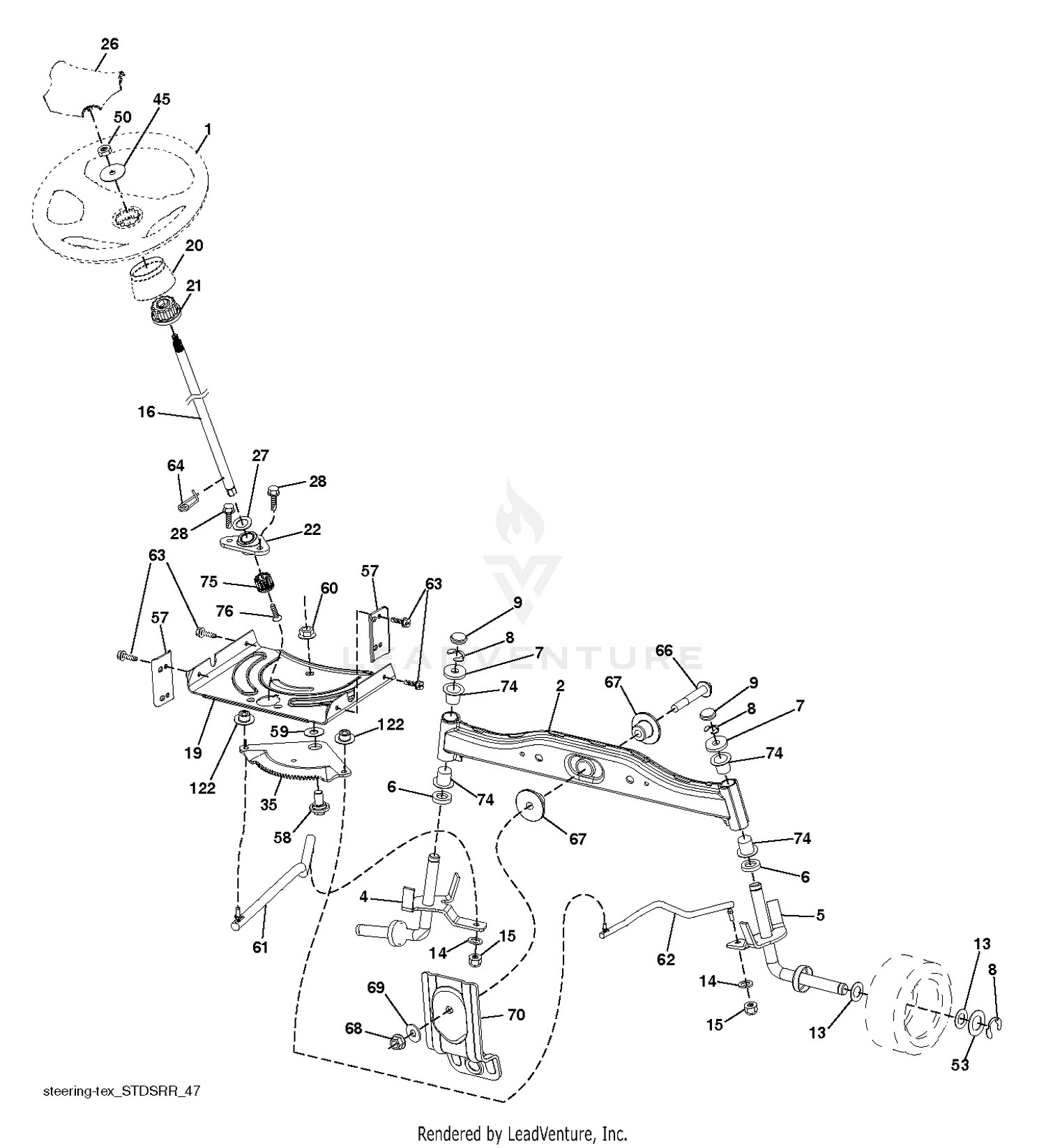

| Ref | Part Number | Description |
|---|
| 1 |
532424543 |
WHEEL.STEERING.HARD.RIM.BLAC Price: $27.99 |
| 2 |
532418168 |
AXLE HALF ASM-WELDED Price: $34.99 |
| 4 |
532403087 |
SPINDLE.WELDED.LH.15"TEX Price: $22.99 |
| 5 |
532403088 |
SPINDLE.WELDED.RH.15"T Price: $22.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number) Price: $1.99 |
| 8 |
812000029 |
Ring, Klip #T5304-75 (AYP part number) Price: $1.99 |
| 9 |
532121232 |
Cap Spindle Fr Top Blk (AYP part number) Price: $1.99 |
| 13 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $1.99 |
| 14 |
539990118 |
SLW 3/8 STD Price: $1.99 |
| 15 |
873540600 |
Nut, Crownlock 3/8-24 (AYP part number) Price: $1.99 |
| 16 |
587016002 |
SHAFT.STEER.2HIGH.SPLND.PLATED Price: $11.99 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 20 |
532424740 |
BOOT.STRNG.PREDATOR.YT/GT.428 Price: $2.99 |
| 21 |
586840201 |
ADAPTER.WHEEL.STEER.SPLND.ALUM Price: $2.99 |
| 22 |
585029802 |
BEARING.SHAFT.STEER.LOWER.625 Price: $1.99 |
| 26 |
532424691 |
INSERT, WHEEL STEERING Price: $4.99 |
| 27 |
819211616 |
Washer 21/32 x 1 x 16 Gauge (AYP part number) Price: $3.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $19.99 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $1.99 |
| 50 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $2.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
532194740 |
DRAGLINK.LH.BALLSTUD.D Price: $44.99 |
| 62 |
532194741 |
DRAGLINK.RH.BALLSTUD.D Price: $44.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 70 |
585338801 |
BRACKET.FRT.DECK.SUSP.RR.MT431 Price: $5.99 |
| 74 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 75 |
580683702 |
PINION.ZINC PLATED This part replaces 580683701. Price: $2.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $1.99 |
