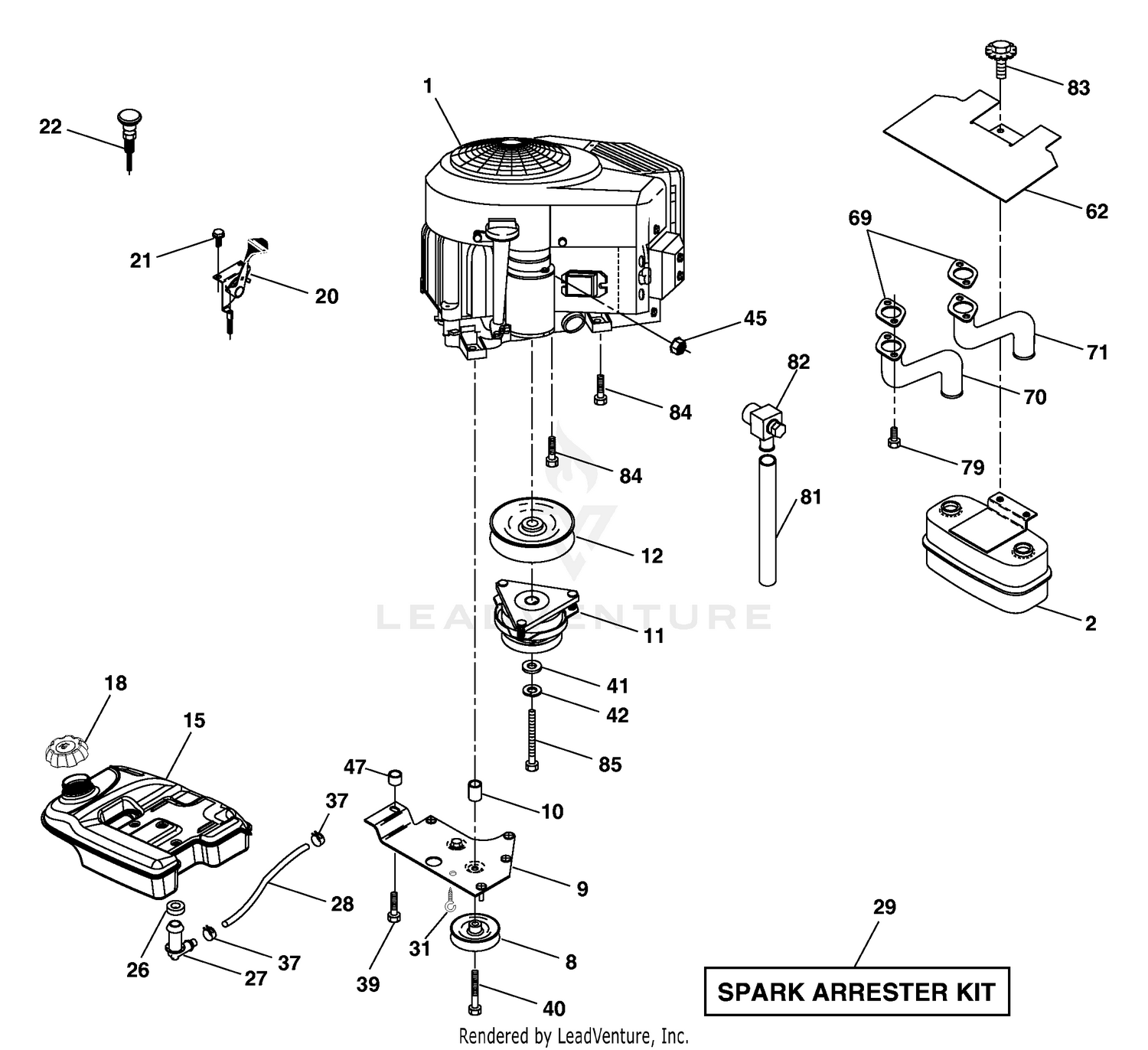

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
Muffler Side Price: $45.99 |
| 8 |
532139123 |
Pulley, V-Idler This part replaces 532121361. Price: $22.99 |
| 9 |
532177748 |
Keeper Asm. Belt Engine VGT Price: $11.99 |
| 10 |
532175287 |
Bushing Price: $14.99 |
| 11 |
532414737 |
KIT.SVC.CLTCH.OG.1.125" This part replaces 532179335. Price: $225.99 |
| 12 |
532143996 |
Pulley Engine VGT Elect Clutch Price: $32.99 |
| 15 |
532179115 |
Tank Fuel Price: $86.99 |
| 18 |
532182902 |
CAP.ASM.FUEL.BLACK This part replaces 532181803. Price: $21.99 |
| 20 |
532175437 |
CONTROL THROTTLE This part replaces 532178385. Price: $25.99 |
| 21 |
532416358 |
SCREW, NO. 10 This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
Control Choke Price: $23.99 |
| 26 |
532003645 |
Bushing This part replaces 532124952. Price: $2.99 |
| 27 |
532139277 |
Stem Tank Fuel Price: $5.99 |
| 28 |
532188669 |
Fuel Line Price: $6.99 |
| 29 |
532137180 |
Spark Arrester Kit Price: $128.99 |
| 31 |
532145006 |
Clip Push-In Hinged Price: $2.99 |
| 37 |
532123487 |
Clamp Hose Price: $3.99 |
| 39 |
817490636 |
Screw TT 3/8-16 x 2-1/4 unc Price: $3.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
Washer 1-1/2 OD x 15/32 ID x .250 Price: $4.99 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 47 |
532175288 |
Bushing Price: $3.99 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
Gasket Price: $9.99 |
| 70 |
532176069 |
Tube Exhaust LH Price: $51.99 |
| 71 |
532176070 |
Tube Exhaust RH Price: $53.99 |
| 79 |
532183906 |
Screw Socket Head 5/16-18 x 1 Price: $3.99 |
| 81 |
532188800 |
Tube Drain Price: $2.99 |
| 82 |
532188799 |
Valve Oil Drain Price: $45.99 |
| 83 |
532171877 |
Bolt 5/16-18 unc x 1-3/4 W/Sems Price: $3.99 |
| 84 |
817060624 |
Screw 3/8-16 x 1-1/2 Price: $3.99 |
