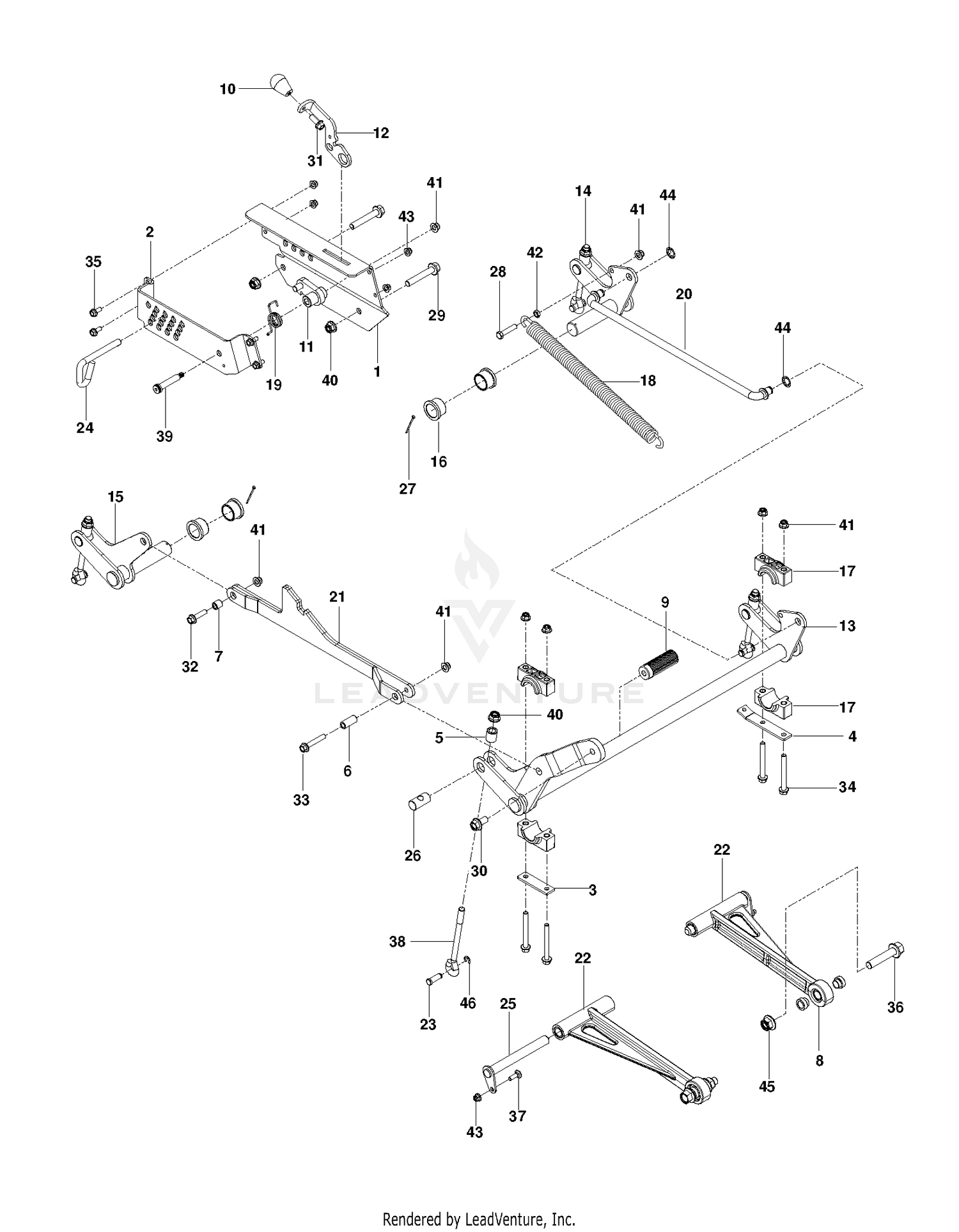

| Ref | Part Number | Description |
|---|
| 1 |
3234-30 |
SCREW-HHF Price: $0.41 |
| 1 |
576480002 |
PLATE, HEIGHT INNER ORG Price: $84.99 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
576480102 |
PLATE, HEIGHT OUTER ORG Price: $59.99 |
| 3 |
593634102 |
PLATE.PNT.PILLOW.BLOCK.EDIP This part replaces 525822201. Price: $2.99 |
| 3 |
74-4980 |
SHROUD-TOP Price: $112.09 |
| 4 |
576646701 |
PLATE, SPRING ANCHOR Price: $7.99 |
| 4 |
76-8750 |
PLATE-WARNING Price: $9.67 |
| 5 |
3290-271 |
RIVET-POP Price: $0.25 |
| 5 |
576485802 |
Spacers This part replaces 576485801. Price: $3.99 |
| 6 |
576623102 |
Spacers This part replaces 576623101. Price: $3.99 |
| 6 |
74-3410 |
RADIATOR ASM Price: $2,099.35 |
| 7 |
14-0939 |
RADIATOR MOUNT WA *B Price: $838.74 |
| 7 |
576623002 |
Spacers This part replaces 576623001. Price: $2.99 |
| 8 |
596839401 |
Spacers This part replaces 510362501. Price: $5.99 |
| 8 |
76-6800 |
DISCONTINUED Price: Call Us |
| 9 |
510408302 |
Pedals This part replaces 510408301. Price: $27.99 |
| 9 |
76-6363 |
DISCONTINUED Price: Call Us |
| 10 |
114-3995 |
OIL COOLER ASM This part replaces 82-3740. Price: $1,388.56 |
| 10 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 11 |
510406802 |
Latch This part replaces 510406801. Price: $19.99 |
| 11 |
82-3640 |
DISCONTINUED Price: Call Us |
| 12 |
576638901 |
LEVER, TRANSPORT RELEASE Price: $19.99 |
| 12 |
82-3650 |
DISCONTINUED Price: Call Us |
| 13 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 13 |
583623801 |
SHAFT.DECK.LIFT.FT This part replaces 576479201. Price: $219.99 |
| 14 |
576479901 |
SHAFT, LIFT LEFT REAR Price: $89.99 |
| 14 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 15 |
576479401 |
SHAFT, LIFT RIGHT REAR Price: $89.99 |
| 15 |
82-3730 |
DISCONTINUED Price: Call Us |
| 16 |
510089401 |
BUSHING, FLANGE 1.25 X 1.0 Price: $17.99 |
| 16 |
82-3630 |
DISCONTINUED Price: Call Us |
| 17 |
510023902 |
BLOCK, PILLOW Price: $11.99 |
| 17 |
67-1300 |
DECAL Price: $29.99 |
| 18 |
576676601 |
SPRING, EXTENSION Price: $22.99 |
| 19 |
510376601 |
SPRING, TORSION Price: $2.99 |
| 20 |
510089802 |
Rods This part replaces 510089801. Price: $119.99 |
| 20 |
94-8010 |
HOSE ASM This part replaces 76-9540. Price: $148.03 |
| 21 |
237-65 |
O-RING Price: $2.50 |
| 21 |
576622602 |
Strap This part replaces 576622601. Price: $299.99 |
| 22 |
510106501 |
ASSEMBLY, STRUT Price: $99.99 |
| 22 |
76-6362 |
DISCONTINUED Price: Call Us |
| 23 |
37-8770 |
BOLT-SHOULDER Price: $1.02 |
| 23 |
596919401 |
Pins This part replaces 510090101. Price: $4.99 |
| 24 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 24 |
510016502 |
Pins This part replaces 510016501. Price: $7.99 |
| 25 |
340-72 |
FITTING-BULKHEAD, 90 DEG Price: $41.27 |
| 25 |
515988202 |
Pins This part replaces 515988201. Price: $37.99 |
| 26 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 26 |
576485602 |
Pins This part replaces 576485601. Price: $4.99 |
| 27 |
539124704 |
COTTER PIN 1/8 X 2 This part replaces 539102889. Price: $2.99 |
| 27 |
74-6400 |
FILTER LINE TUBE ASM Price: $97.62 |
| 28 |
596583901 |
Bolts This part replaces 539990730. Price: $2.99 |
| 28 |
74-6390 |
DISCONTINUED Price: Call Us |
| 29 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 29 |
596789601 |
Bolts This part replaces 525828901. Price: $3.99 |
| 30 |
574210602 |
Screws This part replaces 574210601. Price: $2.99 |
| 30 |
76-6381 |
STRIP-SEALING, RADIATOR Price: $4.29 |
| 31 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 31 |
74-5460-03 |
ANGLE-SUPPORT, RADIATOR This part replaces 74-5460. Price: $65.15 |
| 32 |
3234-27 |
SCREW-HHF Price: $5.97 |
| 32 |
576621602 |
Screws This part replaces 576621601. Price: $1.99 |
| 33 |
577098301 |
HHFS 3/8-16 X 2.25 GD 8 This part replaces 574496901. Price: $5.99 |
| 33 |
74-4990 |
DISCONTINUED Price: Call Us |
| 34 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 34 |
525822101 |
HHFS 3/8-16 X 3.5 GD 5 ZD Price: $4.99 |
| 35 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 35 |
74-6020 |
HOSE-RADIATOR, LOWER Price: $48.93 |
| 36 |
525829001 |
HHFS 5/8-11 X 3.0 GD 8 ZD Price: $27.99 |
| 36 |
76-6382 |
STRIP-SEALING, FAN SHROUD Price: $4.22 |
| 37 |
304-46 |
DRAINCOCK Price: $7.55 |
| 37 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 38 |
2811-1 |
ELBOW-STREET, 45 DEG Price: $21.35 |
| 38 |
576479002 |
Hardware This part replaces 576479001. Price: $5.99 |
| 39 |
516035502 |
Bolts This part replaces 516035501. Price: $4.99 |
| 39 |
74-5930 |
DISCONTINUED Price: Call Us |
| 40 |
322-3 |
SCREW-HH Price: $0.79 |
| 40 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 41 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 41 |
74-9120 |
HOSE-OVERFLOW, RADIATOR Price: $9.97 |
| 42 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 42 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 43 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 43 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 44 |
532429164 |
NUT.PUSH.625 This part replaces 539109304. Price: $4.99 |
| 45 |
525829102 |
Nuts This part replaces 525829101. Price: $2.99 |
