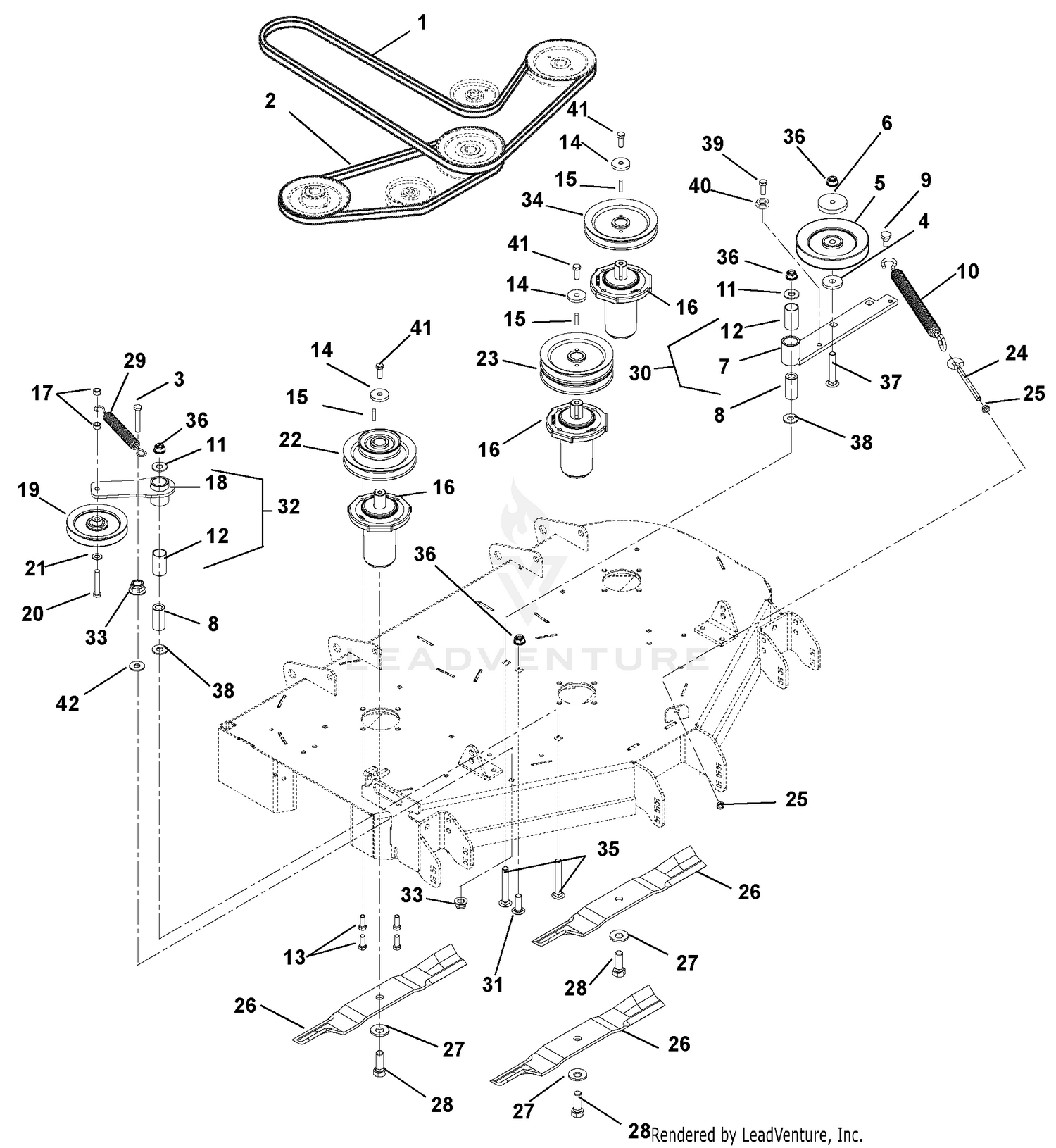

| Ref | Part Number | Description |
|---|
| 3 |
05901814 |
BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45 |
| 4 |
05500905 |
BSHG, SPCR .502X.997X.50 PM Price: $10.45 |
| 5 |
07300527 |
SHV, .50"ID X 6.00"OD V-IDLER Price: $47.95 |
| 6 |
00450100 |
CAP, IDLER BEARING SEALING Price: $13.45 |
| 7 |
03774251 |
WMT, IDLER ARM Price: $61.45 |
| 8 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 9 |
07000034 |
BLT,SHLDR EP .38-16X.30 HEX YZ Price: $3.45 |
| 11 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06430200. Price: $0.95 |
| 12 |
05501234 |
BSHG, 1.00X1.125X1.937 This part replaces 05500123. Price: $9.95 |
| 13 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 14 |
04530500 |
RETAINER, SHEAVE Price: $7.95 |
| 15 |
06611200 |
KEY, SQ .25X.25X1.00 RC 40-50 Price: $2.95 |
| 16 |
59125000 |
ASM, MAINT FREE ALUM SPINDLE This part replaces 59215400. Price: $214.45 |
| 17 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 18 |
03774151 |
WMT, IDLER ARM - BLACK This part replaces 03774100. Price: $45.95 |
| 19 |
07351800 |
IDLER, V, 5.00X.38 This part replaces 07340100. Price: $27.95 |
| 20 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 21 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 22 |
07329467 |
PULLEY, DBL-1"IDX5.75"&3.50"OD Price: $89.95 |
| 23 |
07329200 |
PULLEY, DOUBLE 1.000 ID X 5.750 OD This part replaces 07329267. Price: $72.45 |
| 24 |
07001604 |
BOLT, .38-16X6.00 .62 DIA EYE This part replaces 07000030. Price: $6.45 |
| 25 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 26 |
00450200 |
BLADE, 16.19" MOWER (HI-LIFT) Price: $25.95 |
| 27 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 28 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 31 |
06200006 |
BLT-RDHDSHSQNKFT.50-13X1.50 G5 Price: $5.45 |
| 33 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 34 |
07329300 |
PULLEY, V - 1.000 ID X 5.750 OD This part replaces 07329367. Price: $63.95 |
| 35 |
06200317 |
BLT, RHSN .50-13X3.50 G5 ZCC This part replaces 06225000. Price: $5.45 |
| 36 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 38 |
06400829 |
WSHR-FLT .640X1.75X.250 Price: $3.95 |
| 39 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 40 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 41 |
05901813 |
BLT, HEX .38-16X2.75 G8 ZCC This part replaces 05963000. Price: $1.45 |
