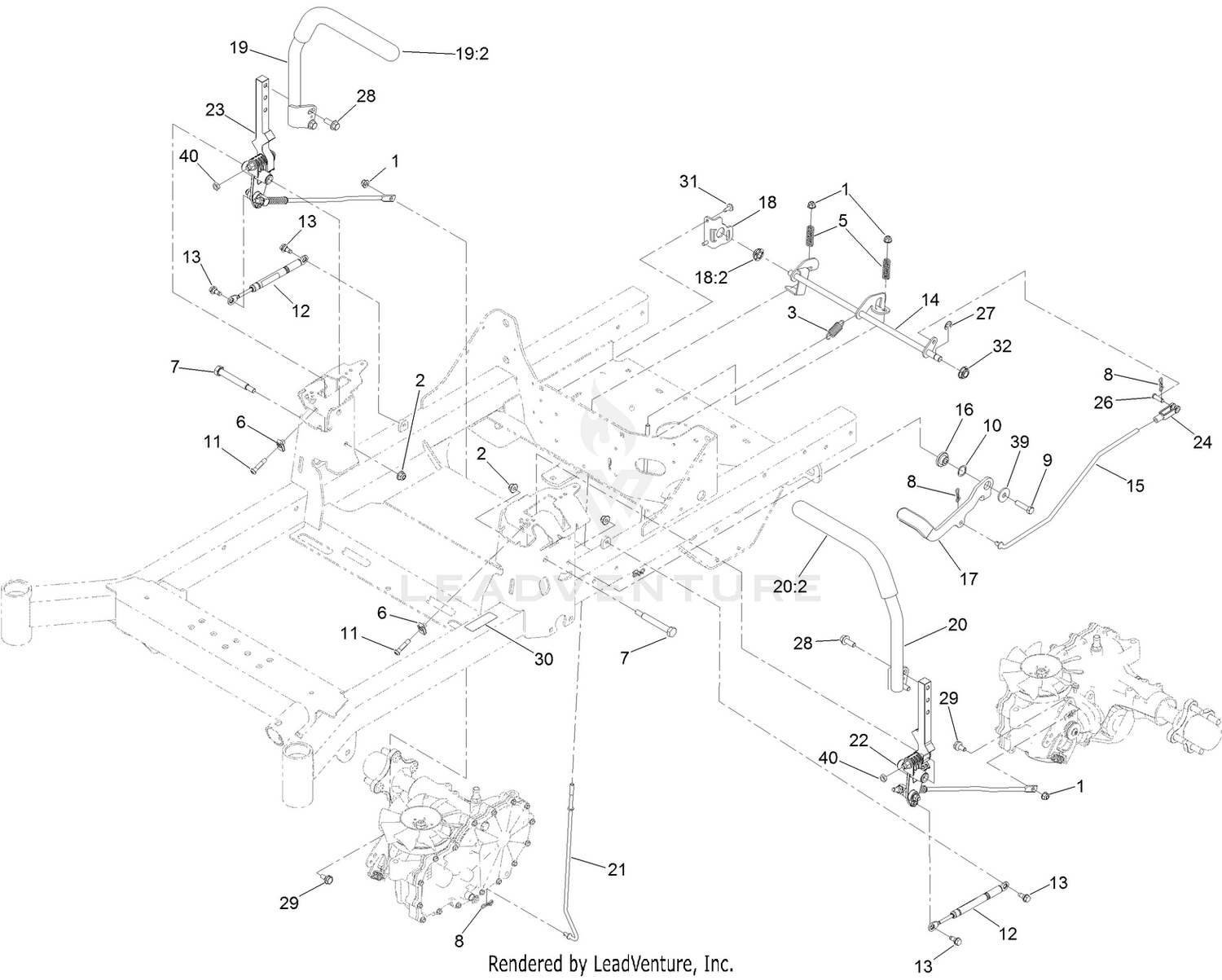

| Ref | Part Number | Description |
|---|
| 1 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
107-1045 |
SPRING-EXTENSION Price: $4.89 |
| 5 |
109-7694 |
SPRING-COMPRESSION Price: $4.31 |
| 6 |
112-3306 |
NUT Price: $0.82 |
| 7 |
115-5099 |
BOLT-PIVOT Price: $2.32 |
| 8 |
119-1415 |
PIN-COTTER, LOCKING Price: $0.22 |
| 9 |
323-8 |
SCREW-HH Price: $1.20 |
| 10 |
119-4164 |
WASHER-WAVE Price: $2.73 |
| 11 |
126-4299 |
SCREW-HSBH Price: $1.41 |
| 12 |
126-4322 |
DAMPER Price: $46.78 |
| 13 |
126-4424 |
SCREW-SHOULDER Price: $1.69 |
| 14 |
126-5813 |
SHAFT-BRAKE Price: $26.72 |
| 15 |
126-5819 |
LINKAGE-BRAKE, UPPER Price: $9.07 |
| 16 |
126-5989 |
PIVOT-FLANGE Price: $1.21 |
| 17 |
126-9490 |
LEVER-BRAKE (WITH GRIP) Price: $18.71 |
| 18 |
126-6456 |
BRACKET-BRAKE Price: $8.00 |
| 19 |
126-9191 |
RH CONTROL HANDLE ASM Price: $45.41 |
| 20 |
126-9192 |
LH CONTROL HANDLE ASM Price: $45.41 |
| 21 |
126-7217 |
LINKAGE-BRAKE, LOWER Price: $9.07 |
| 24 |
1-303105 |
YOKE-ADJUSTABLE Price: $11.99 |
| 26 |
1-808280 |
PIN-CLEVIS Price: $1.70 |
| 27 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 28 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 29 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 30 |
115-9625 |
DECAL-BRAKE, PARKING Price: $2.69 |
| 31 |
126-6266 |
SCREW-TORX Price: $0.91 |
| 32 |
126-5820 |
BEARING-SPHERICAL Price: $5.07 |
| 39 |
2844 |
WASHER Price: $2.69 |
