| Ref | Part Number | Description |
|---|
| 1 |
132564 |

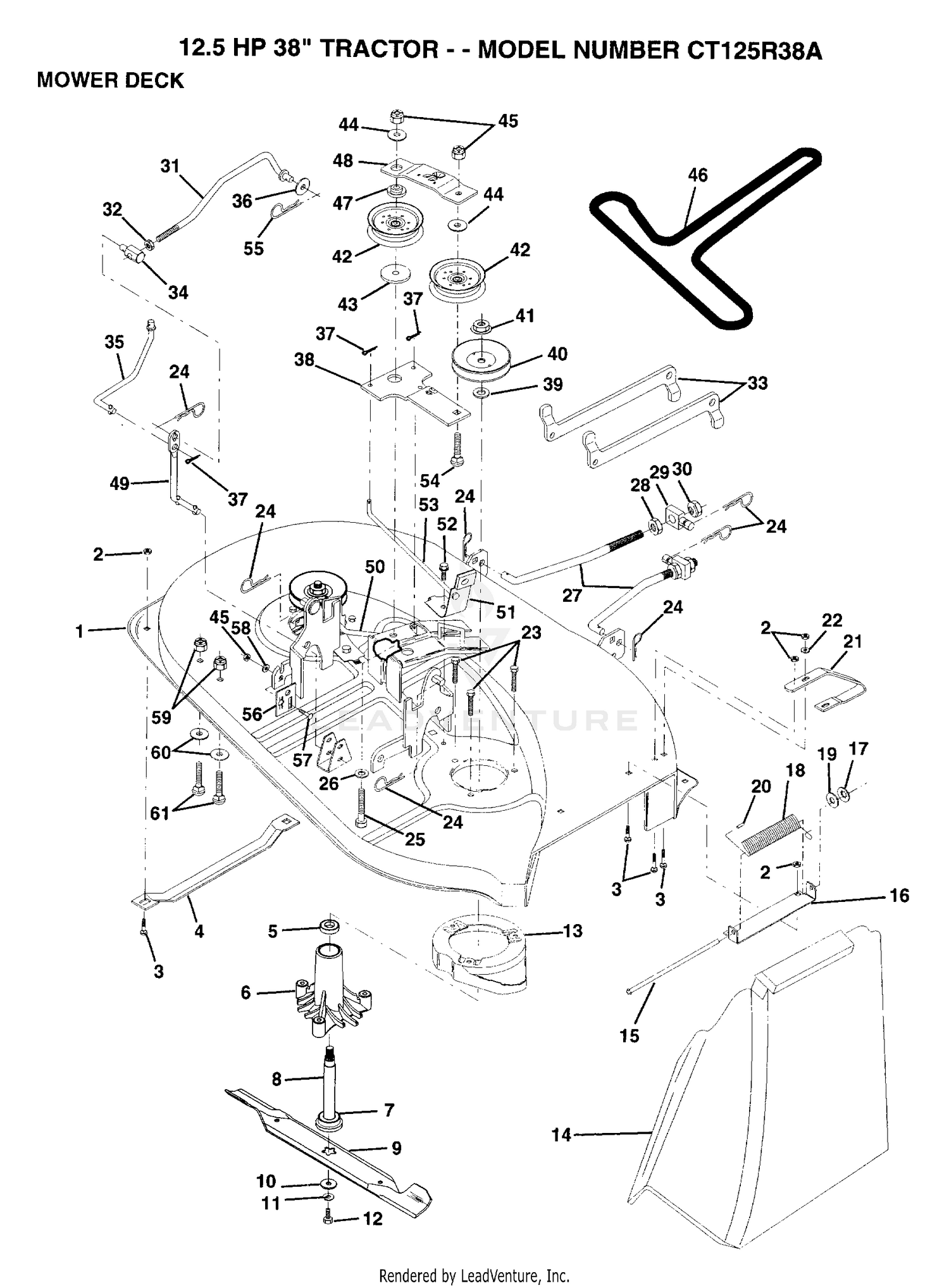

MOWER DECK ASSY Price: Call Us |
| 1 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 2 |
73680500 |
SUB= 73690500 Price: Call Us |
| 2 |
74-3190 |
LEVER-LIFT Price: $102.52 |
| 3 |
72140506 |
BOLT Price: Call Us |
| 4 |
7631J |
RUNNER-LH M Price: Call Us |
| 5 |
110485X |
BEARING Price: Call Us |
| 5 |
60-5690 |
CLIP Price: $3.58 |
| 6 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 6 |
58-1520 |
PIN Price: $12.55 |
| 7 |
129895 |
BEARING.BALL Price: Call Us |
| 7 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 8 |
133172 |
SUB= 137646 Price: Call Us |
| 9 |
63-4800 |
MOTOR-SPOOL, VALVE Price: $2,291.65 |
| 10 |
129962 |
WASHER BLADE Price: Call Us |
| 10 |
340-88 |
FITTING-STRAIGHT Price: $11.24 |
| 11 |
10030600 |
SUB= 10040600 Price: Call Us |
| 12 |
58-7190 |
SPRING Price: $19.74 |
| 12 |
850857 |
BLADE BOLT Price: Call Us |
| 13 |
128961 |
SUB= 140329 Price: Call Us |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 14 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
106735X |
ROD-HINGE T Price: Call Us |
| 16 |
105896X |
SUB= 137607 Price: Call Us |
| 16 |
58-3830 |
PIN-CLEVIS Price: $1.84 |
| 17 |
110452X |
NUT PUSH M Price: Call Us |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 18 |
106734X |
SUB= 123713X Price: Call Us |
| 18 |
58-4450 |
LEVER Price: $81.85 |
| 19 |
19111016 |
WASHER Price: Call Us |
| 19 |
233-10 |
KNOB-LEVER Price: $47.39 |
| 20 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 20 |
58-4460 |
CLEVIS Price: $112.62 |
| 21 |
128772 |
RUNNER RH Price: Call Us |
| 21 |
58-1570 |
LINK Price: $15.74 |
| 22 |
19111216 |
WASHER M Price: Call Us |
| 22 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 23 |
60-0550 |
BUSHING Price: $16.69 |
| 23 |
78158 |
SUB= 17580520 Price: Call Us |
| 24 |
3217-6 |
NUT-HEX Price: $1.19 |
| 24 |
4939M |
SUB= 85902 Price: Call Us |
| 25 |
74600636 |
BOLT Price: Call Us |
| 26 |
19131612 |
WASHER GT Price: Call Us |
| 26 |
32121-118 |
PIN-ROLL Price: $0.36 |
| 27 |
132256 |
SEAL.COVER.BAGGER Price: Call Us |
| 28 |
58-5520 |
VALVE-RELIEF, ADJUSTABLE Price: $410.76 |
| 28 |
73350800 |
NUT Price: Call Us |
| 29 |
130171 |
TRUNION Price: Call Us |
| 29 |
322-9 |
SCREW-HH Price: $3.09 |
| 30 |
73800800 |
NUT.LK.W/WSH.1/2. Price: Call Us |
| 31 |
132553 |
CLUTCH ROD PRI Price: Call Us |
| 31 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 32 |
73350600 |
NUT Price: Call Us |
| 33 |
132559 |
SUSP ARM REAR Price: Call Us |
| 33 |
59-7130 |
KNOB-CONTROL, SPEED Price: $25.40 |
| 34 |
133604 |
TRUNNION Price: Call Us |
| 34 |
58-1510 |
SHAFT Price: $74.91 |
| 35 |
132554 |
CLUTCH ROD SEC Price: Call Us |
| 35 |
59-7910 |
GROMMET Price: $2.07 |
| 36 |
19131316 |
WASHER Price: Call Us |
| 36 |
60-2110 |
PIN Price: $1.42 |
| 37 |
76020312 |
SUB= 3145 Price: Call Us |
| 38 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 38 |
340-80 |
FITTING-STR Price: $47.82 |
| 39 |
129963 |
WASHER Price: Call Us |
| 40 |
129206 |
SUB= 153532 Price: Call Us |
| 40 |
58-2150 |
BLOCK-MANIFOLD Price: $325.81 |
| 41 |
66-5410 |
ORIFICE (.109) Price: $24.26 |
| 41 |
73050900 |
SUB= 139729 Price: Call Us |
| 42 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 43 |
122052X |
SPACER RETAINER Price: Call Us |
| 44 |
19131612 |
WASHER GT Price: Call Us |
| 44 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 45 |
73680600 |
SUB= 73690600 Price: Call Us |
| 46 |
131290 |
BELT-V.88.12.MW Price: Call Us |
| 46 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 47 |
133502 |
RETAINER SPACER Price: Call Us |
| 47 |
33113-016 |
SCREW-HH Price: $0.34 |
| 48 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 48 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 49 |
133551 |
PIVOT ROD Price: Call Us |
| 49 |
58-3810 |
PIN-CLEVIS Price: $6.22 |
| 50 |
131289 |
BRAKE ROD LH Price: Call Us |
| 50 |
58-1560 |
LINK Price: $7.20 |
| 51 |
130840 |
BRAKE ASM Price: Call Us |
| 51 |
48-7890 |
NUT-HEX Price: $0.25 |
| 52 |
17490512 |
SCREW Price: Call Us |
| 52 |
340-86 |
FITTING-TEE Price: $35.23 |
| 53 |
131288 |
BRAKE ROD RH Price: Call Us |
| 53 |
93-7768 |
COUPLING Price: $123.16 |
| 54 |
52-6430 |
WASHER Price: $0.25 |
| 54 |
72110614 |
BOLT Price: Call Us |
| 55 |
4497H |
RETAINER M Price: Call Us |
| 55 |
66-5860 |
FITTING-ELBOW, 45 DEG Price: $92.86 |
| 56 |
136782 |
PLATE ADJ LINK LH Price: Call Us |
| 56 |
58-5490 |
VALVE-CONTROL, FLOW Price: $1,092.55 |
| 57 |
340-3 |
FITTING-STRAIGHT Price: $10.42 |
| 57 |
72140606 |
BOLT Price: Call Us |
| 58 |
19131212 |
WASHER T Price: Call Us |
| 59 |
58-1540 |
SPACER-NYLON Price: $11.85 |
| 59 |
73800500 |
NUT Price: Call Us |
| 60 |
19111112 |
WASHER.34X.68X16 Price: Call Us |
| 60 |
33113-050 |
SCREW-HH Price: $0.62 |
| 61 |
72140506 |
BOLT Price: Call Us |
| 62 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 63 |
353-947 |
CAP-DUST, RUBBER Price: $7.73 |
| 64 |
321-3 |
SCREW-HH Price: $0.28 |
| 65 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 66 |
3217-5 |
NUT-HEX Price: $0.25 |
| 67 |
63-4690-03 |
BRACKET-VALVE Price: $23.58 |
| 68 |
3296-8 |
NUT-HEX Price: $1.29 |
| 69 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 70 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 71 |
321-11 |
SCREW-HH Price: $0.36 |
| 72 |
63-4700 |
VALVE-FLOW, REGULATOR Price: $295.76 |
| 76 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 77 |
92-9258 |
ADAPTER-CHECK Price: $125.92 |
| 79 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 81 |
340-159 |
FITTING-HYD, 90 DEG Price: $55.33 |
