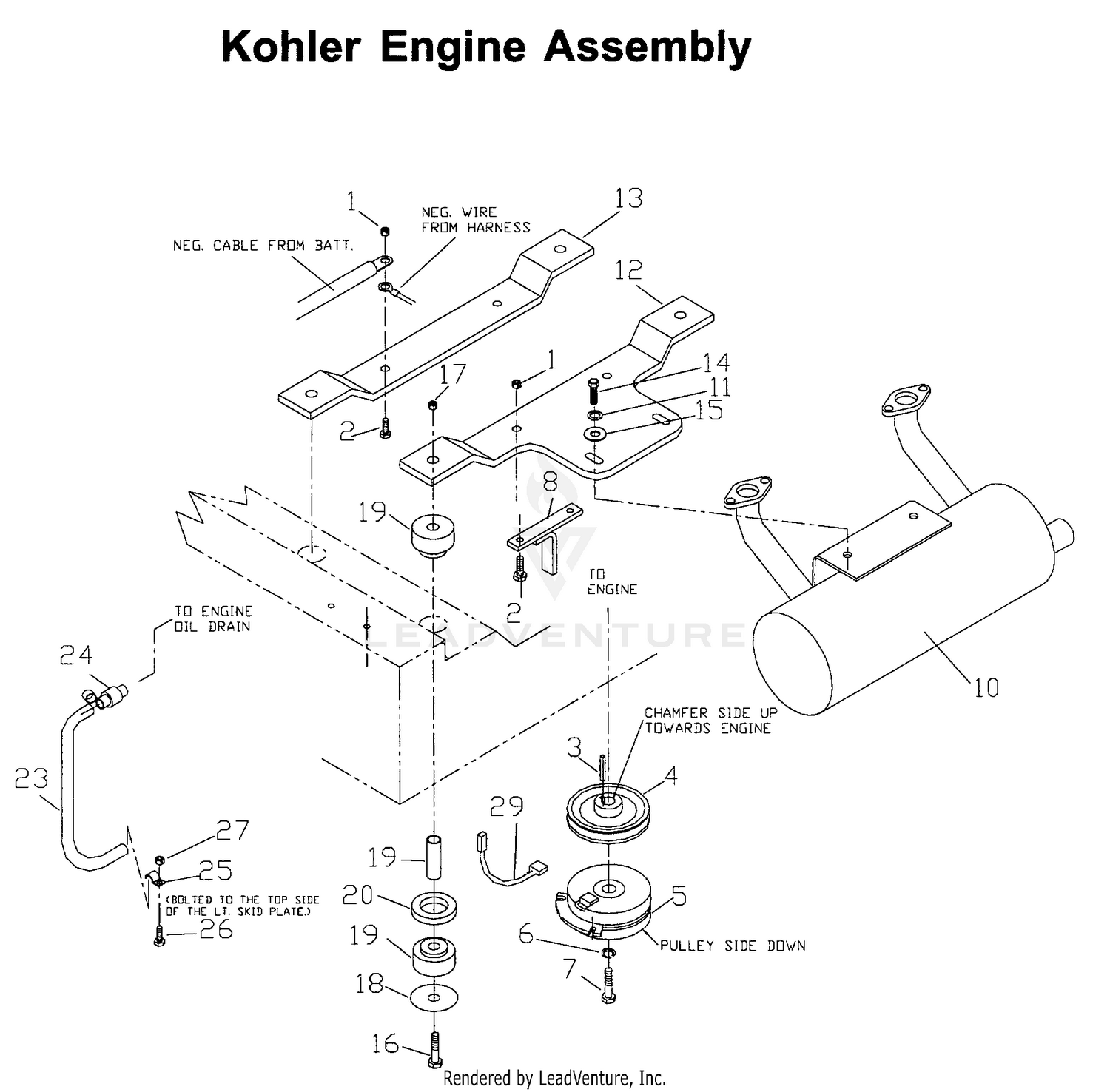

ENGINE 2
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7243 | GASKET SET Price: $584.62 |
| 1 | 596580701 | Nuts This part replaces 539990184. Price: $2.99 |
| 2 | 125-7049 | GASKET-HEAD Price: $103.63 |
| 2 | 874780528 | SCREW This part replaces 539990669. Price: $4.99 |
| 3 | 125-6909 | O-RING Price: $2.55 |
| 3 | 539100152 | KEY 1/4" SQ X 1 7/8" Price: $2.99 |
| 4 | 125-6957 | O-RING Price: $3.51 |
| 4 | 539106057 | PULLEY Price: $54.99 |
| 5 | 125-7197 | O-RING Price: $2.55 |
| 5 | 539105406 | ELECTRIC CLUTCH W/CABLE Price: $329.99 |
| 6 | 125-7199 | O-RING Price: $2.20 |
| 7 | 125-7177 | WASHER-SEAL Price: $6.86 |
| 7 | 539991120 | BOLT 7/16F X 2 1/2 Price: $5.99 |
| 8 | 125-6915 | SEAL-STEM, VALVE Price: $6.77 |
| 8 | 539106819 | CLUTCH TIE DOWN Price: $36.99 |
| 9 | 125-6916 | SEAL-STEM, VALVE Price: $6.77 |
| 9 | 539104416 | KOH PIGTAIL Price: $34.99 |
| 10 | 125-6921 | PROTECTOR Price: $15.17 |
| 10 | 539105896 | MUFFLER KOHLER GEN II Price: $299.99 |
| 11 | 125-6911 | SEAT-VALVE Price: $4.19 |
| 11 | 596238801 | WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 12 | 125-7060 | GASKET Price: $69.94 |
| 12 | 539105410 | REAR ENGINE MOUNT Price: $60.99 |
| 13 | 539105025 | ENGINE MOUNT Price: $19.99 |
| 13 | 93-0418 | O-RING Price: $7.29 |
| 14 | 125-7066 | GASKET Price: $23.44 |
| 14 | 596030501 | SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 15 | 125-7028 | GASKET Price: $3.06 |
| 15 | 596134901 | GSPH This part replaces 539990692. Price: $2.99 |
| 16 | 125-7096 | GASKET Price: $8.58 |
| 16 | 539103433 | HCS 1/2C X 3 1/4 Price: $5.99 |
| 17 | 125-7070 | GASKET Price: $4.75 |
| 17 | 596135601 | GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 18 | 125-7071 | GASKET Price: $7.59 |
| 18 | 539104959 | ISOLATOR WASHER Price: $12.99 |
| 19 | 125-7022 | GASKET Price: $7.07 |
| 19 | 539104958 | ISOLATORS Price: $32.99 |
| 20 | 125-7024 | GASKET Price: $3.16 |
| 20 | 539105034 | ISOLATOR SPACER Price: $11.99 |
| 21 | 125-7174 | WASHER-SEAL Price: $5.45 |
| 22 | 125-7175 | WASHER-SEAL Price: $6.16 |
| 23 | 125-7193 | GASKET Price: $1.28 |
| 23 | 539107937 | OIL DRAIN HOSE Price: $2.99 |
| 24 | 125-7198 | O-RING Price: $7.26 |
| 24 | 532428287 | VALUE.OIL.DRAIN This part replaces 539110093. Price: $14.99 |
| 25 | 125-7047 | GASKET Price: $5.13 |
| 25 | 539101363 | CLAMP Price: $2.99 |
| 26 | 125-7048 | O-RING Price: $2.87 |
| 26 | 596230901 | Screws This part replaces 539990580. Price: $2.99 |
| 27 | 125-6978 | GASKET Price: $2.00 |
| 27 | 539990761 | NUT 1/4C CENTER LOCK Price: $2.99 |
| 28 | 125-7192 | GASKET Price: $1.14 |
| 28 | 539102733 | CHOKE CONTROL, COMPLETE Price: $49.99 |
| 29 | 125-7026 | GASKET Price: $2.90 |
| 29 | 539105637 | CLUTCH HARNESS Price: $22.99 |
| 30 | 125-7110 | GASKET Price: $3.76 |
| 31 | 125-6979 | GASKET Price: $2.55 |
| 32 | 125-6967 | GASKET Price: $10.09 |
| 33 | 125-7000 | GASKET Price: $2.71 |
| 34 | 125-7021 | GASKET Price: $2.87 |
| 35 | 125-7038 | HONE Price: $610.17 |
