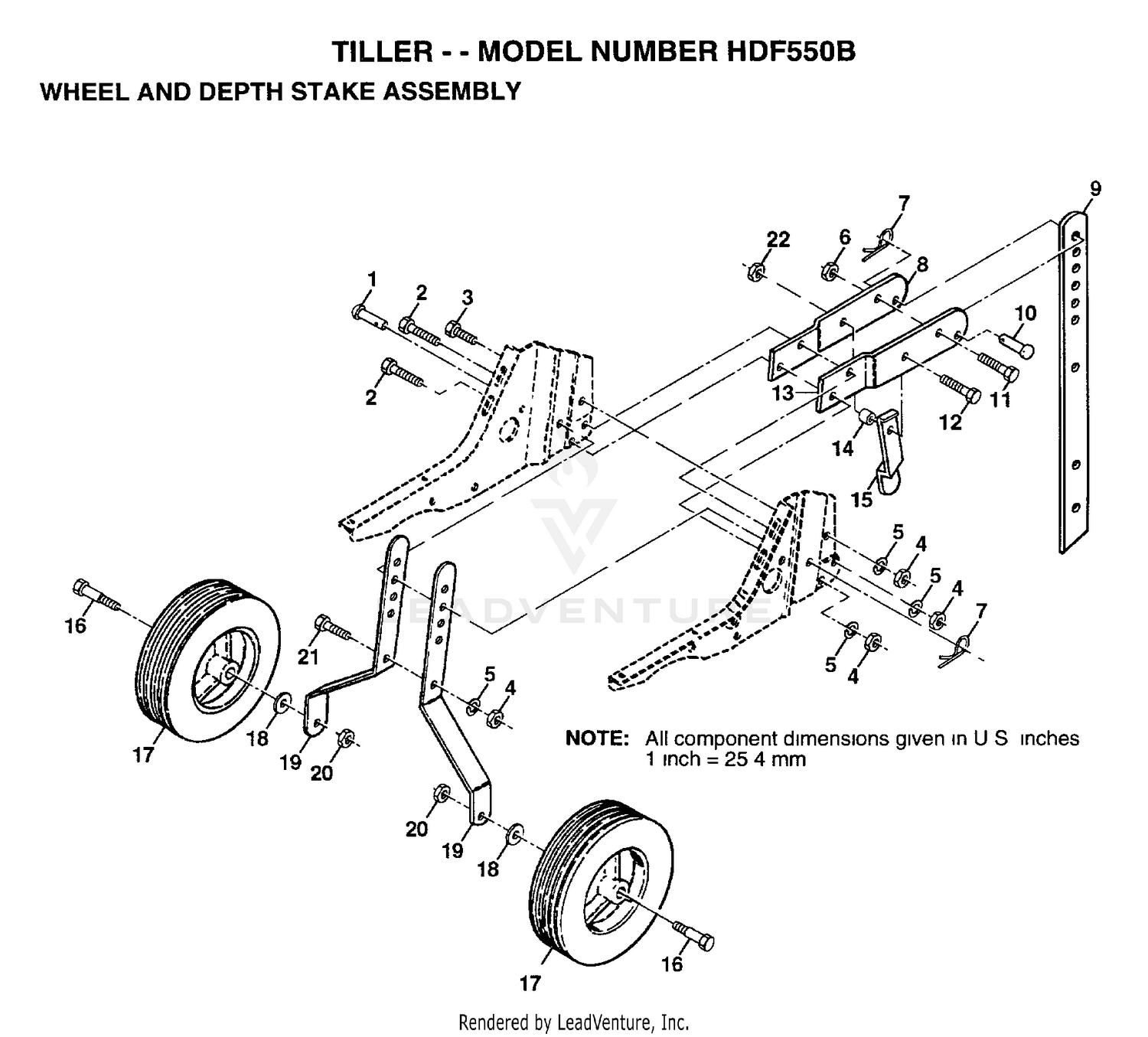

| Ref | Part Number | Description |
|---|
| 1 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5498. Price: $82.04 |
| 1 |
9194R |
DRILLED RIVET RT Price: Call Us |
| 2 |
3219-3 |
NUT-HEX Price: $0.34 |
| 2 |
74760520 |
BOLT Price: Call Us |
| 3 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 3 |
74760512 |
BOLT Price: Call Us |
| 4 |
109-2230 |
SPRING-COMPRESSION Price: $8.99 |
| 4 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 5 |
112-1676 |
SWIVEL Price: $41.95 |
| 6 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5494. Price: $82.04 |
| 6 |
73800600 |
NUT Price: Call Us |
| 7 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 7 |
4921H |
SPRING.RETAINER Price: Call Us |
| 8 |
1952J |
SUB= 1952J500 Price: Call Us |
| 8 |
65-2720 |
RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 9 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 9 |
122233X |
SUB= 2582J Price: Call Us |
| 10 |
323-6 |
SCREW-HH Price: $0.66 |
| 10 |
326J |
SUB= 4929H Price: Call Us |
| 11 |
1-633268 |
GRIP-LEVER Price: $13.99 |
| 11 |
74780628 |
BOLT Price: Call Us |
| 12 |
108-5214-03 |
BRAKE HANDLE ASM Price: $81.91 |
| 12 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 13 |
1951J |
SUB= 1951J500 Price: Call Us |
| 13 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 14 |
120958X |
WASHER Price: Call Us |
| 14 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 15 |
5388J |
STAKE SPRING TI Price: Call Us |
| 15 |
95-8900 |
SWITCH Price: $95.42 |
| 16 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 16 |
121117X |
BOLT SHOULDER Price: Call Us |
| 17 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 17 |
9188R |
SUB= 107644X Price: Call Us |
| 18 |
19131311 |
WASHER Price: Call Us |
| 18 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 19 |
110-9754 |
BRAKE PIVOT ASM Price: $32.85 |
| 19 |
9190R |
SUB= 9190R500 Price: Call Us |
| 20 |
1-513140 |
BEARING-CONTROL Price: $4.99 |
| 20 |
73680600 |
SUB= 73690600 Price: Call Us |
| 21 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
74760516 |
SUB= 77394 Price: Call Us |
| 22 |
1-633131 |
YOKE-LINKAGE, BRAKE Price: $14.99 |
