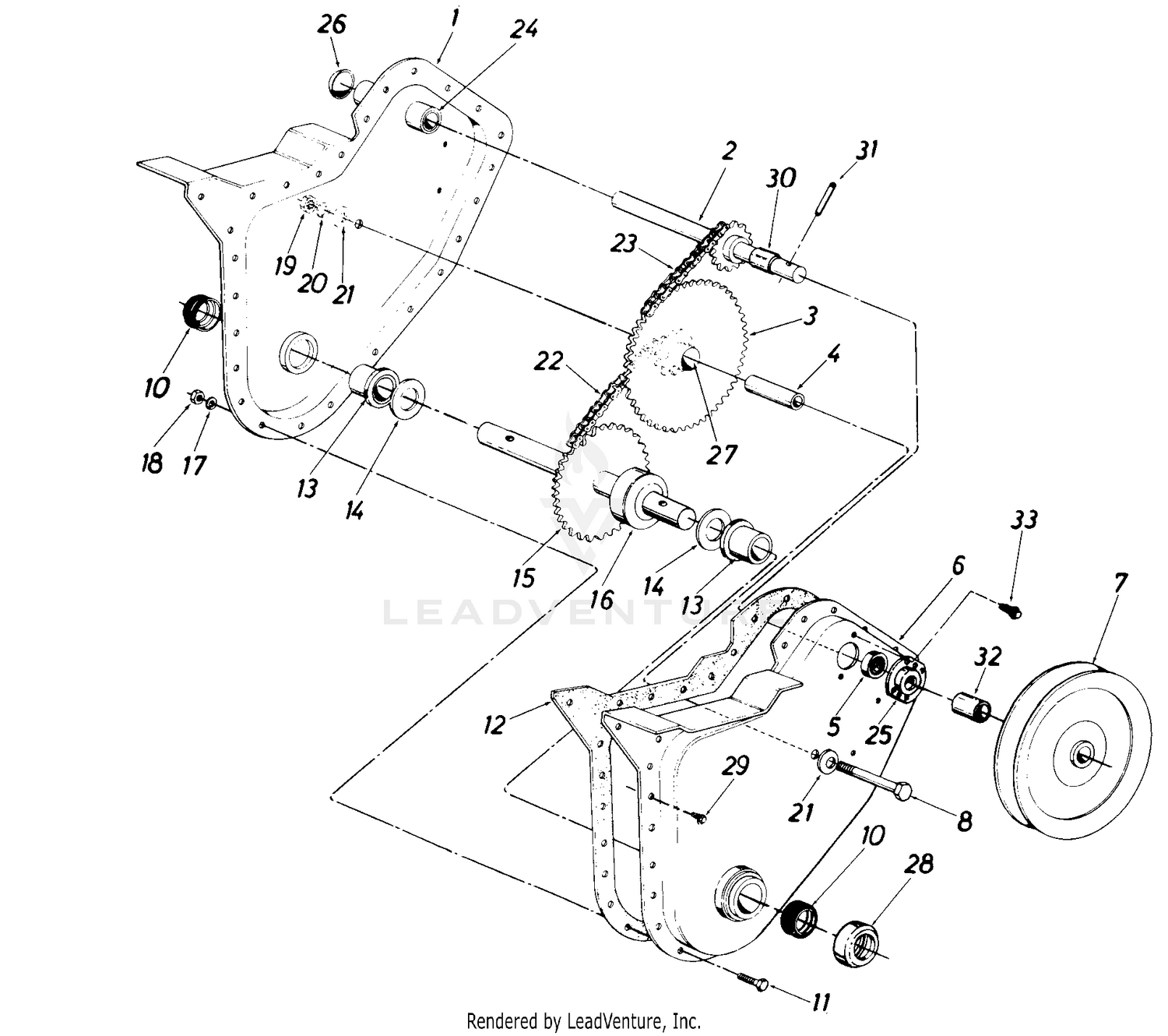

| Ref | Part Number | Description |
|---|
| 1 |
04926 |
Chain Case Ass'y.-R.H. Price: Call Us |
| 2 |
04756 |
SHAFT ASSEMBLY-INPUT Not Available Price: |
| 3 |
04757 |
SPROCKET & HUB ASSEMBLY Not Available Price: |
| 4 |
750-0351 |
SLEEVE .623 OD x .380 ID x 1.5 LG Not Available Price: |
| 5 |
941-0155 |
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. This part replaces 741-0155. Price: $22.09 |
| 6 |
15863 |
CASE ASSEMBLY Not Available Price: |
| 8 |
710-0369 |
Hex Bolt 3/8-24 x 2.50" Lg. Price: $5.59 |
| 11 |
910-0195 |
HEX SCREW 1/4-28 x .62 Not Available This part replaces 710-0195. Price: |
| 12 |
921-0156A |
GASKET Not Available This part replaces 721-0156. Price: |
| 13 |
741-0227 |
Flange Brg. .879 I.D. Price: $10.23 |
| 14 |
736-0265 |
FLAT WASHER .88 x 1.50 x .030 Not Available Price: |
| 15 |
04920 |
SHAFT ASSEMBLY-TINE Not Available Price: |
| 16 |
750-0354A |
SPACER Not Available This part replaces 750-0354. Price: |
| 17 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 18 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 19 |
712-0116 |
Hex Ins. L-Nut 3/8-24 Thd. Price: $3.95 |
| 20 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 21 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 24 |
748-0154 |
BEARING Not Available Price: |
| 25 |
05034A |
BEARING HOUSING Not Available This part replaces 05034. Price: |
| 26 |
726-0164 |
EXPANSION PLUG Not Available Price: |
| 27 |
741-0228 |
BEARING Not Available Price: |
| 29 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 30 |
750-0471 |
SPACER Not Available Price: |
