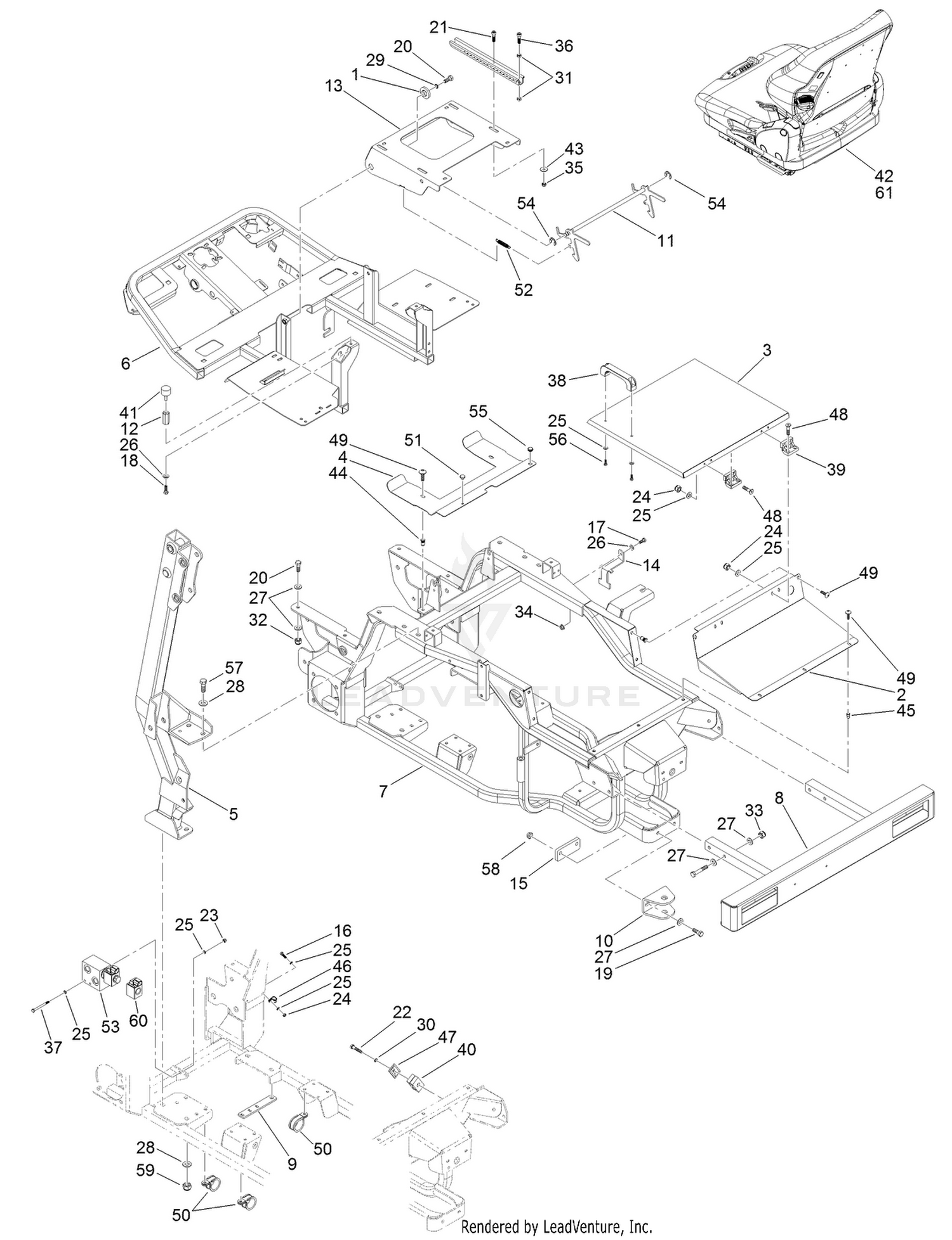

Frame Assembly
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0689 | BUSHING Price: $6.53 |
| 2 | 134-0796 | COVER-ENGINE, REAR Price: $42.02 |
| 3 | 134-0797 | HOOD Price: $90.83 |
| 4 | 134-0798 | COVER-ENGINE, FRONT Price: $35.29 |
| 5 | 134-0810 | BRACKET Price: $446.32 |
| 6 | 134-0837 | FOOTREST Price: $615.02 |
| 7 | 134-0851 | FRAME Price: $2,409.84 |
| 8 | 134-0874 | BUMPER Price: $220.07 |
| 9 | 134-0891 | BRACKET Price: $5.06 |
| 10 | 134-0904 | BAR-TOW Price: $20.16 |
| 11 | 134-0911 | HOOK-SEAT Price: $47.47 |
| 12 | 134-0912 | COLUMN Price: $6.05 |
| 13 | 134-0941 | SUPPORT-SEAT Price: $61.86 |
| 14 | 134-0974 | BRACKET Price: $9.51 |
| 15 | 134-0975 | BRACKET Price: $9.86 |
| 16 | 134-1009 | SCREW Price: $0.32 |
| 17 | 134-1011 | SCREW Price: $0.32 |
| 18 | 134-1015 | SCREW Price: $0.46 |
| 19 | 134-1019 | SCREW Price: $0.75 |
| 20 | 134-1023 | SCREW Price: $0.70 |
| 21 | 134-1026 | SCREW Price: $0.49 |
| 22 | 134-1027 | SCREW Price: $0.64 |
| 23 | 134-1041 | NUT Price: $0.25 |
| 24 | 134-1042 | NUT Price: $0.25 |
| 25 | 134-1044 | WASHER Price: $0.25 |
| 26 | 134-1045 | WASHER Price: $0.25 |
| 27 | 134-1046 | WASHER Price: $0.25 |
| 28 | 134-1047 | WASHER Price: $0.25 |
| 29 | 134-1051 | WASHER Price: $0.32 |
| 30 | 134-1054 | WASHER Price: $0.32 |
| 31 | 134-1078 | NUT Price: $0.25 |
| 32 | 134-1079 | NUT Price: $0.42 |
| 33 | 134-1081 | NUT Price: $0.70 |
| 34 | 134-1082 | NUT Price: $0.36 |
| 35 | 134-1092 | NUT Price: $0.25 |
| 36 | 134-1115 | SCREW Price: $0.64 |
| 37 | 134-1116 | SCREW Price: $1.17 |
| 38 | 134-1140 | HANDLE Price: $8.94 |
| 39 | 134-1147 | HINGE-PLASTIC Price: $10.64 |
| 40 | 134-1152 | COLLAR Price: $2.55 |
| 41 | 134-1163 | PAD-RUBBER Price: $9.37 |
| 42 | 134-1171 | SEAT-GRAMMER Price: $1,575.56 |
| 43 | 134-3126 | WASHER This part replaces 134-1233. Price: $0.25 |
| 44 | 134-1253 | INSERT-THREADED Price: $2.19 |
| 45 | 134-1257 | INSERT-THREADED Price: $0.70 |
| 46 | 134-1262 | CLAMP Price: $5.18 |
| 47 | 134-1274 | PLATE-SMALL Price: $3.71 |
| 48 | 134-1297 | SCREW Price: $0.32 |
| 49 | 134-1304 | SCREW Price: $1.24 |
| 50 | 134-1319 | CLAMP Price: $4.28 |
| 51 | 134-1326 | MAGNET Price: $5.20 |
| 52 | 134-1353 | SPRING Price: $5.50 |
| 53 | 134-0584 | VALVE-LOCK, DIFFERENTIAL Price: $530.12 |
| 54 | 134-2964 | RING-SNAP Price: $0.39 |
| 55 | 134-3007 | PLUG-RUBBER Price: $0.85 |
| 56 | 134-3008 | SCREW Price: $0.27 |
| 57 | 134-2999 | SCREW Price: $0.57 |
| 58 | 134-3009 | NUT Price: $0.51 |
| 59 | 134-2969 | NUT Price: $0.51 |
| 60 | 134-3095 | HYDRAULIC COMP Price: $131.18 |
