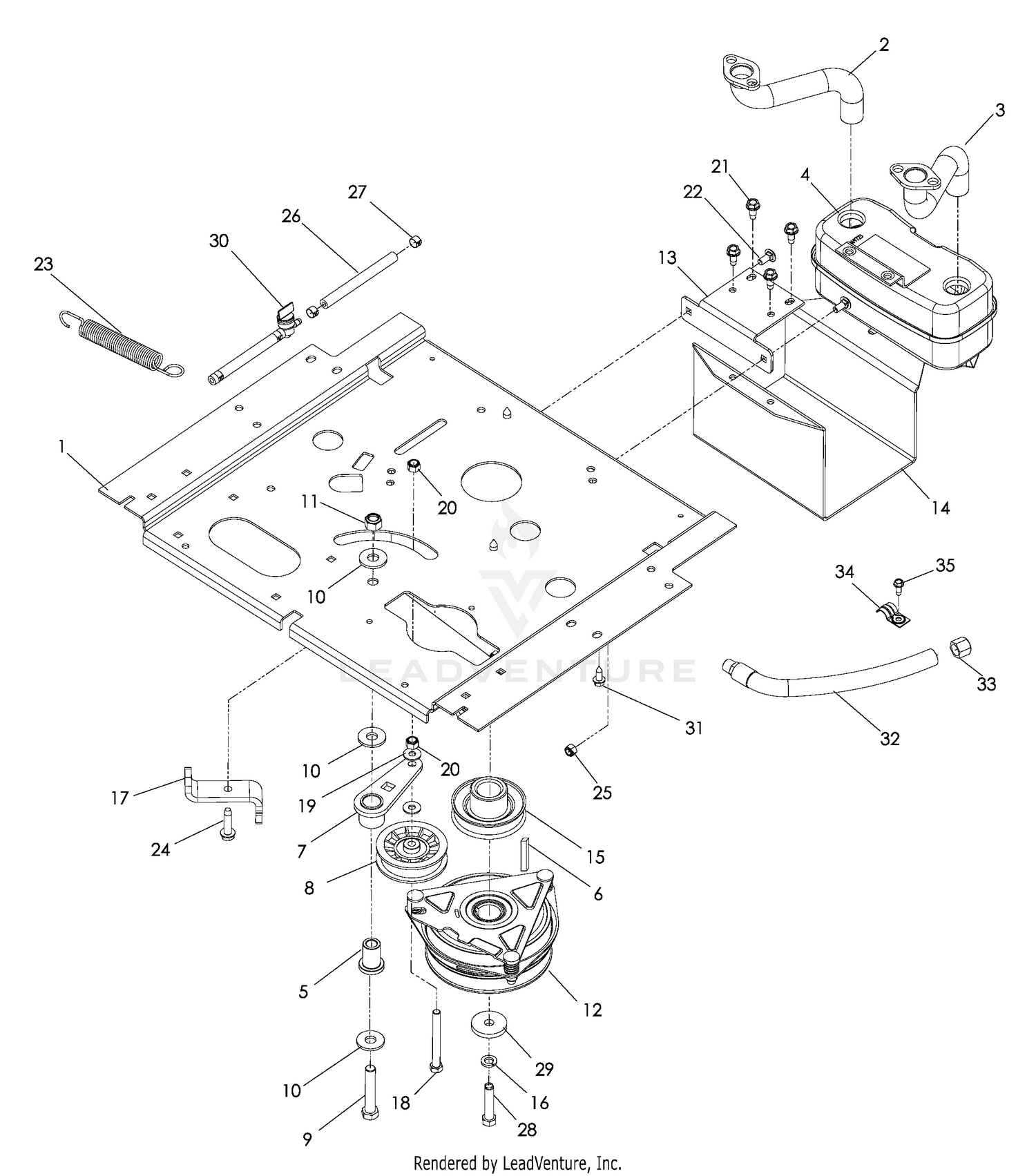

| Ref | Part Number | Description |
|---|
| 1 |
516007502 |
PLATE, ENGINE, BLACK Price: $166.99 |
| 1 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 2 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 2 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 3 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 3 |
98-9653 |
PIPE-INJECTION Price: $69.17 |
| 4 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 4 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 5 |
522432501 |
PIVOT, IDLER Price: $8.99 |
| 5 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 6 |
539910210 |
KEY 1/4 SQ X 2 Price: $4.99 |
| 6 |
98-9420 |
OVERFLOW PIPE ASM Price: $3.91 |
| 7 |
583593901 |
ARM.IDLER This part replaces 539112092. Price: $11.99 |
| 8 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 8 |
98-9620 |
OVERFLOW PIPE ASM Price: $44.29 |
| 9 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 9 |
98-9468 |
NOZZLE HOLDER ASM Price: $341.86 |
| 10 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 10 |
98-9631 |
CORD-PLUG, GLOW Price: $12.41 |
| 11 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 11 |
98-9623 |
PLUG-GLOW This part replaces 98-9695. Price: $93.76 |
| 12 |
539113437 |
CLUTCH, 150 FT/LBS Price: $399.99 |
| 12 |
98-7676 |
GASKET Price: $2.73 |
| 13 |
581886702 |
BRACKET MUFFLER MS431BLK This part replaces 510260402. Price: $19.99 |
| 13 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 14 |
510260502 |
GUARD, MUFFLER, BLACK Price: $54.99 |
| 14 |
98-7654 |
GASKET Price: $8.84 |
| 15 |
525435001 |
PULLEY, C'SHAFT, 3.57 OP This part replaces 539113436. Price: $24.99 |
| 15 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 16 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 16 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 17 |
522459704 |
STOP, CLUTCH, OGURA, BLK Price: $22.99 |
| 17 |
99-8377 |
NUT-FLANGE Price: $2.56 |
| 18 |
539109389 |
HCS 3/8-16X3 1/2 GR5 Price: $4.99 |
| 19 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 20 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 21 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 22 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 23 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 24 |
539110025 |
BOLT 3/8-16 X 1 1/2 ZINC CLEAR Price: $3.99 |
| 25 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 26 |
587044805 |
HOSE.1/4".LOW.PERM.FUEL.LN.5" This part replaces 539110425. Price: $2.99 |
| 27 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 28 |
539111990 |
HCS 7/16-20 X 2 G8 ZN Price: $2.99 |
| 29 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 30 |
539916325 |
FUEL VALVE Price: $9.99 |
| 31 |
817120616 |
SCREW 3/8-16X1 This part replaces 532120616. Price: $4.99 |
| 32 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 33 |
539101364 |
DRAIN CAP Price: $5.99 |
| 34 |
539101363 |
CLAMP Price: $2.99 |
