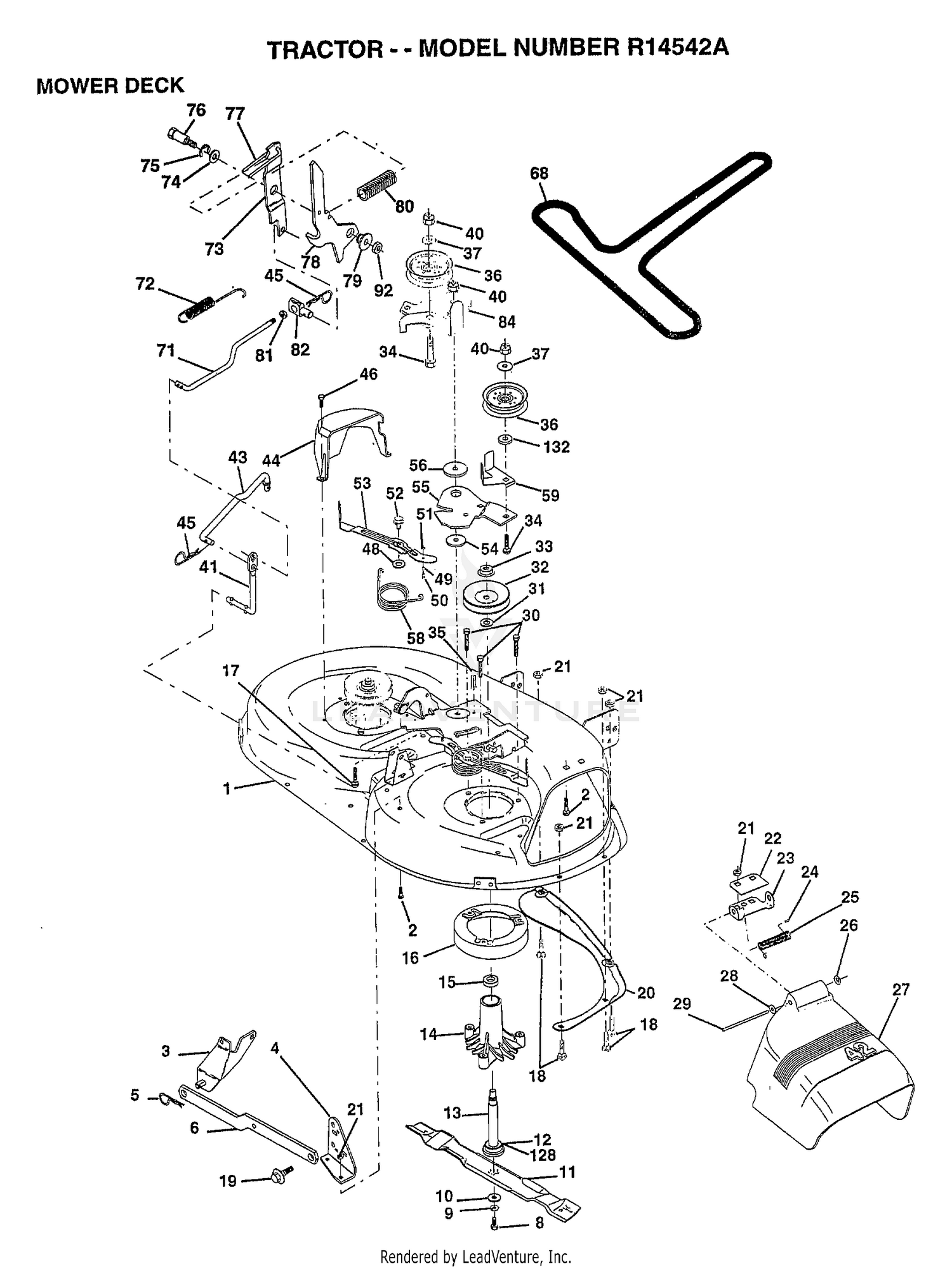

| Ref | Part Number | Description |
|---|
| 1 |
144393 |
DECK.WELD.42. Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
93-7830 |
DECAL-TORQUE Price: $23.91 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
93-7836 |
DECAL-PEDAL, TRACTION Price: $14.38 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 5 |
70-2200 |
DECAL Price: $5.09 |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 7 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 8 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
32128-21 |
NUT-HF Price: $0.39 |
| 11 |
98-3866-01 |
BRACE-UPPER Price: $164.20 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
98-3865-01 |
BRACE-RIGHT, LOWER Price: $104.46 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
98-3864-01 |
BRACE-LEFT, LOWER Price: $107.85 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
3290-472 |
NUT-CLINCH Price: $5.04 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
256-126 |
BUSHING Price: $9.36 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
155066 |
ROLLER ASM-CAM Price: Call Us |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 53 |
131845X900 |
SUB= 131845 Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
155046 |
ARM-IDLER Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 68 |
144959 |
BELT-V.SEC.46.KEL Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
146927 |
SPRING.EXT.RETURN Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
154808 |
LEVER ASM CLUTCH Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 84 |
158824 |
BRACKET ASM IDLER Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 132 |
19132203 |
WASHER GT Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
