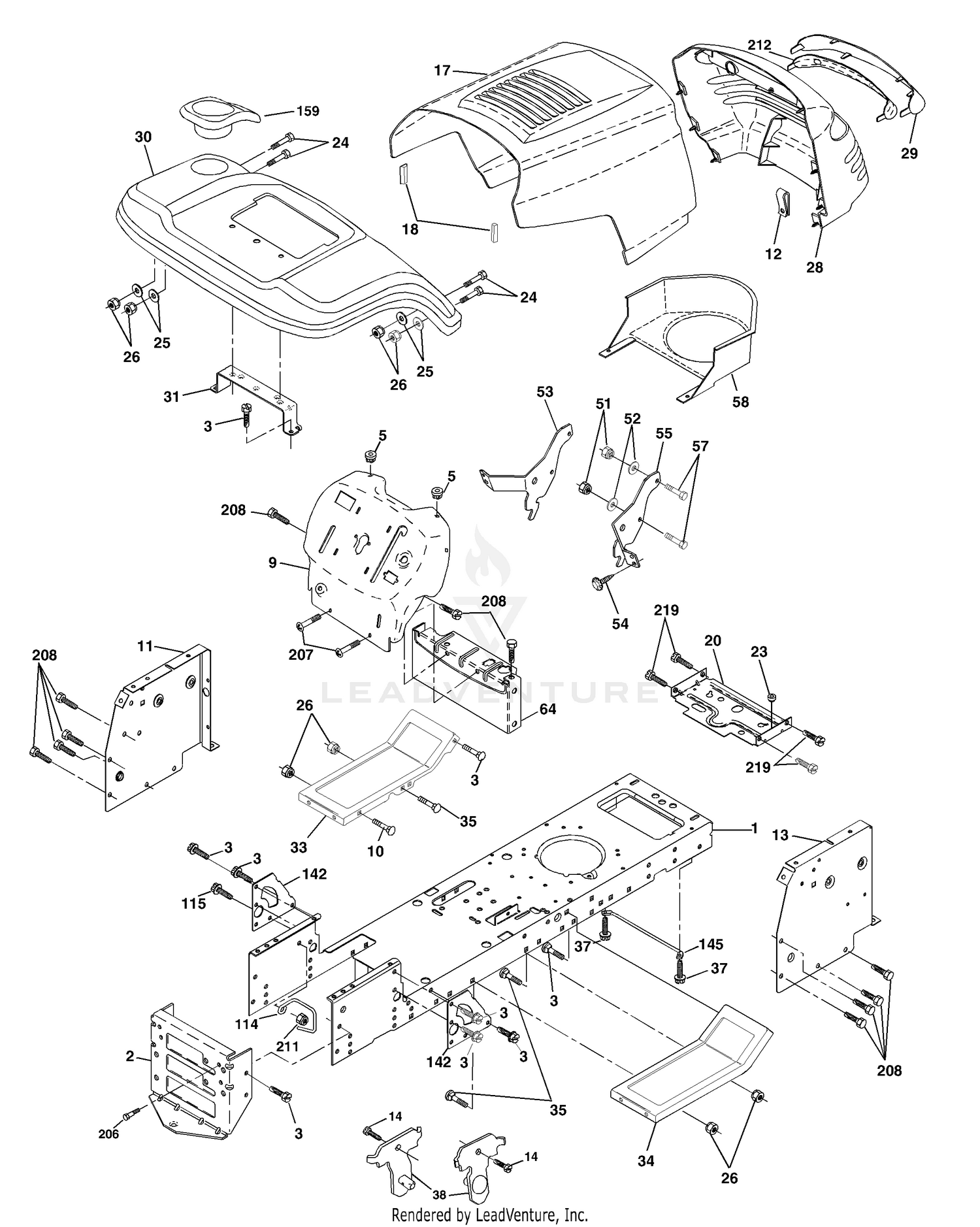

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16x.75 Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
168337X012 |
Dash P/L Price: Call Us |
| 10 |
108-6571 |
CRANKCASE ASM Price: $1,485.35 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 13 |
172106 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 17 |
159639X428 |
Hood LT/PL Price: Call Us |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 20 |
180679 |
Plate Mtg Battery Fuel Tank Fr Price: Call Us |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 23 |
124028X |
Bushing Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 28 |
179844 |
Grille LT/PL Price: Call Us |
| 29 |
170472X599 |
Lens LT/PL Price: Call Us |
| 30 |
169470X428 |
Fender Footrest STLT Pnt Price: Call Us |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 31 |
136619 |
Bracket Support Fender Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt Lh Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 40 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracjet Grukke Lh Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 Price: Call Us |
| 58 |
150127 |
Duct Air Price: Call Us |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 80 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 100 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 114 |
158112 |
Keeper Belt Rear Lh Price: Call Us |
| 115 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 120 |
105-3795 |
PIN-STRAIGHT Price: $0.99 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
98-7507 |
PLUG Price: $2.64 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 211 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 212 |
156229 |
Insert Lens Reflect P/L LT Price: Call Us |
| 219 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 220 |
99-3447 |
PLUG Price: $3.11 |
| 230 |
106-7056 |
GASKET Price: $1.48 |
