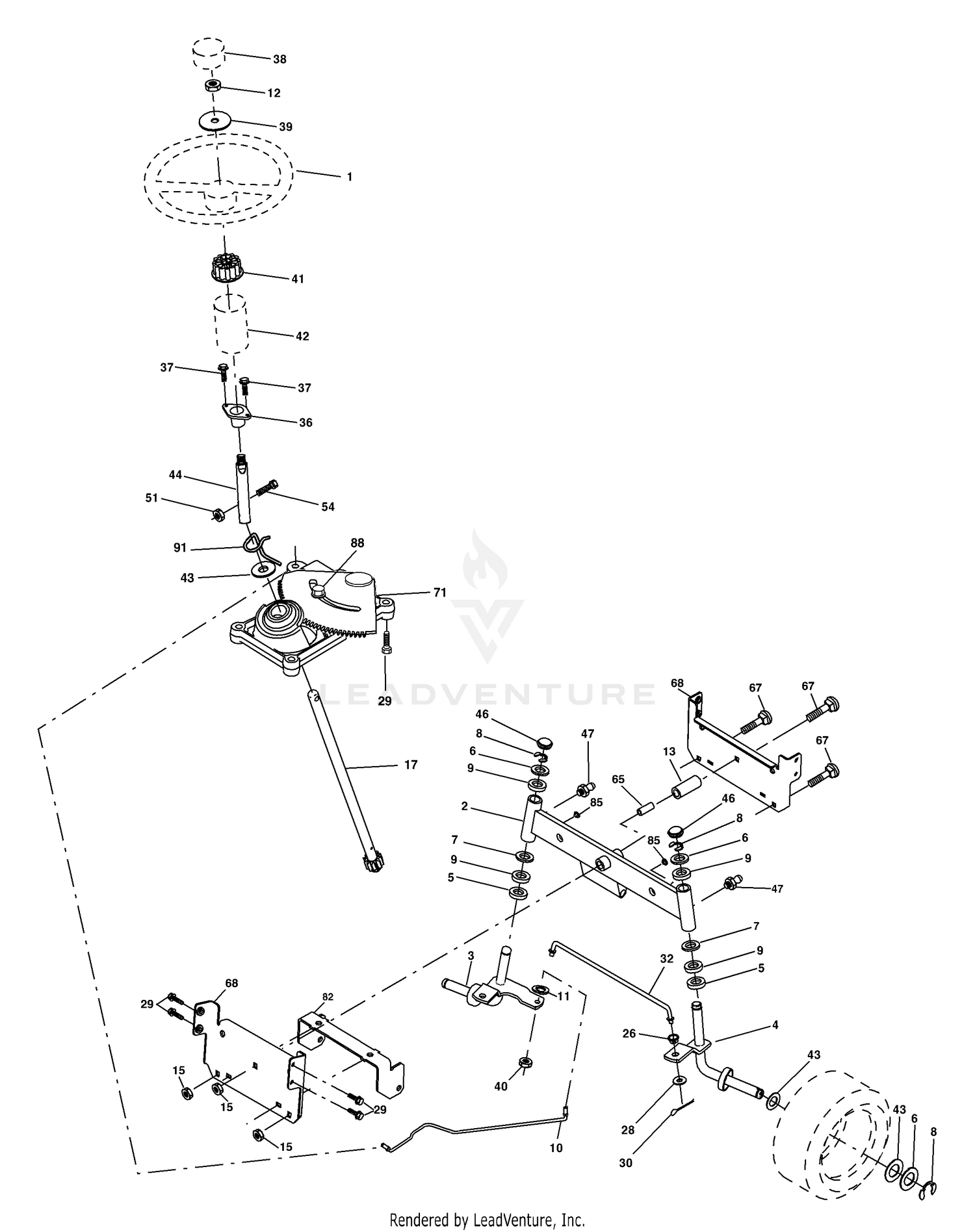

| Ref | Part Number | Description |
|---|
| 1 |
140044X428 |
Wheel Steering Price: Call Us |
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 2 |
175131 |
Axle Asm Price: Call Us |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 92-1774. Price: $14.71 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga Price: Call Us |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga Price: Call Us |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 12 |
94-6935 |
LOCKNUT Price: $1.09 |
| 13 |
136518 |
Spacer earing Axle Front Price: Call Us |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
145212 |
Hex flange Lock Price: Call Us |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 16 |
84-8600 |
SET-SHOES, LINED Price: $131.50 |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 17 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 18 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 19 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 21 |
94-6934 |
SCREW-HH Price: $6.99 |
| 22 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 23 |
94-6936 |
WASHER-HARDENED Price: $0.58 |
| 26 |
126847X |
Bushing Link Drag Blk LR Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga Price: Call Us |
| 29 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
140045X428 |
Cap Wheel Steer Ayp Price: Call Us |
| 39 |
19183812 |
Washer 9/16 x 2-3/8 Price: Call Us |
| 40 |
7810H |
Nut Lock Center 3/8-24un Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Dash Mtl Steering Blk Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Fin Hex 5/8-11 unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
