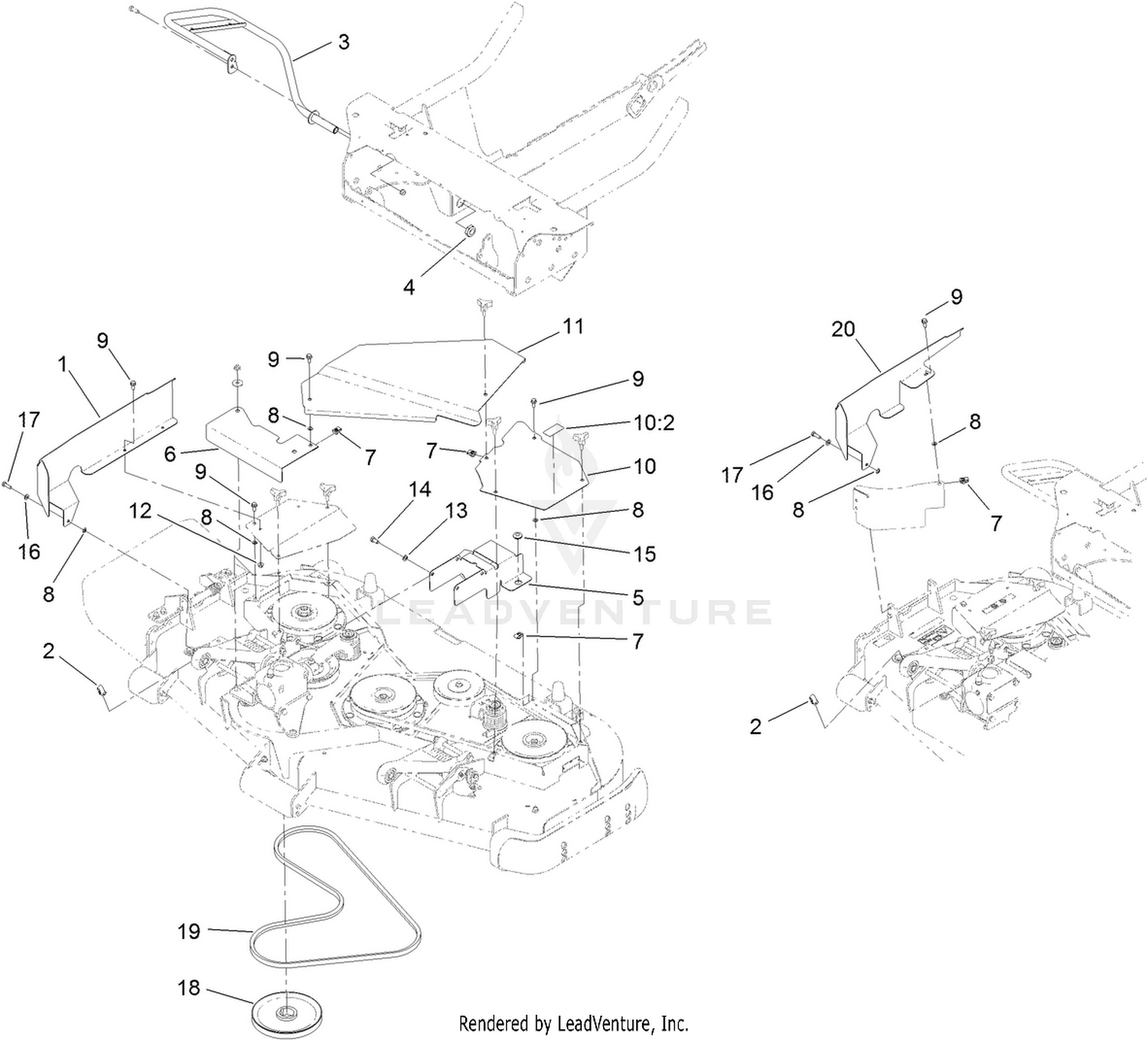

CE Guard Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-4913-03 | SHIELD-RH Price: $80.77 |
| 2 | 127-8408 | NUT-U Price: $3.58 |
| 3 | 127-4914-03 | GUARD Price: $428.30 |
| 4 | 3296-60 | NUT-LOCK, NI Price: $5.08 |
| 5 | 130-4750-03 | COVER-GEARBOX Price: $66.52 |
| 6 | 130-4751-03 | SHIELD-PULLEY Price: $48.46 |
| 7 | 94-2413 | NUT-U Price: $1.79 |
| 8 | 117-2749 | NUT-PUSH Price: $0.25 |
| 9 | 3234-47 | SCREW-HHF Price: $1.79 |
| 10 | 130-4754 | LH COVER ASM Price: $818.25 |
| 11 | 130-4753-03 | COVER-CENTER Price: $92.65 |
| 12 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 13 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 14 | 323-4 | SCREW-HH Price: $1.02 |
| 15 | 112-9559 | GROMMET Price: $5.38 |
| 16 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 17 | 33114-025 | SCREW-HH Price: $0.70 |
| 18 | 108-1950 | PULLEY Price: $230.65 |
| 19 | 105-0886 | BELT-DRIVE, PTO Price: $129.02 |
