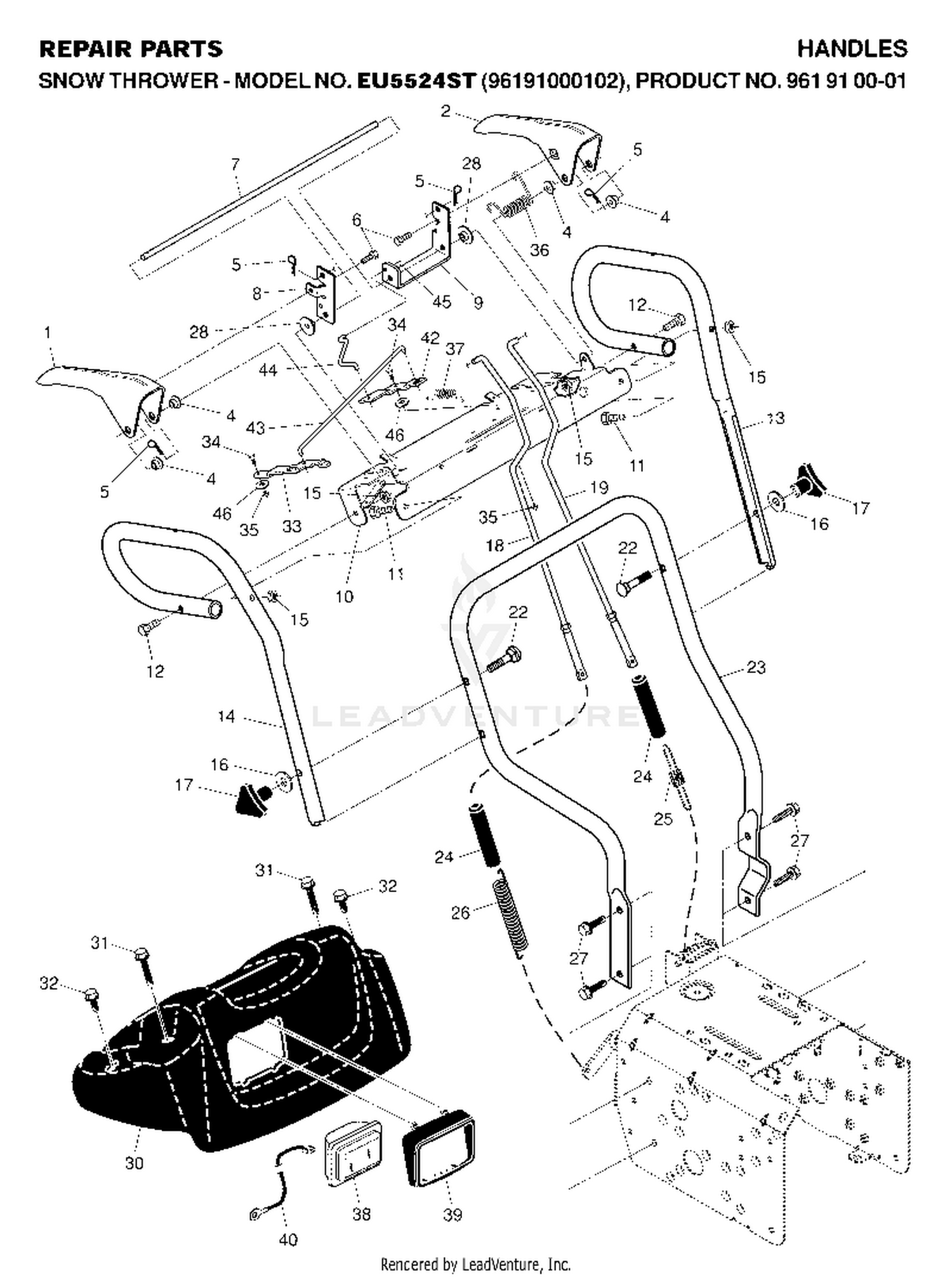

| Ref | Part Number | Description |
|---|
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532407649. Price: $22.99 |
| 2 |
532405783 |
LEVER-TRACTION DRIVE CONTROL This part replaces 532407648. Price: $11.99 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 6 |
817060408 |
SCREW Price: $4.99 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 8 |
532429098 |
ARM.IMPELLER.ROD.SNOW This part replaces 532199576. Price: $3.99 |
| 9 |
532196334 |
ARM.TRACTION.ROD.YZ. This part replaces 532199575. Price: $3.99 |
| 10 |
532196619 |
PANEL.CONTROL This part replaces 532199531. Price: $19.99 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 12 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 13 |
532407854 |
HANDLE TUBE-LH This part replaces 532407888. Price: $32.99 |
| 14 |
532407855 |
HANDLE TUBE-RH This part replaces 532407889. Price: $28.99 |
| 15 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 18 |
532180480 |
ROD.ASM.IMPELLER Price: $24.99 |
| 19 |
532180481 |
ROD.ASM.TRACTION. Price: $22.99 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 27 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 28 |
532198559 |
BUSHING, IDLER PIVOT Price: $2.99 |
| 30 |
532183346 |
PANEL.CONSOLE.HEADLIGHTS Price: $29.99 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 33 |
532196335 |
LATCH.INTERLOCK.YELLOW This part replaces 532199577. Price: $11.99 |
| 34 |
532183518 |
BOLT, SHOULDER Price: $2.99 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
| 37 |
532193885 |
SPRING LATCH Price: $3.99 |
| 38 |
532178666 |
HEADLIGHT.HALOGEN.SNOW Price: $219.99 |
| 39 |
532178668 |
BEZEL.HEADLIGHT.BLACK Price: $5.99 |
| 40 |
532180964 |
HARNESS.WIRE.HALOGEN Price: $44.99 |
| 42 |
532196336 |
LEVER.INTERLOCK This part replaces 532199578. Price: $2.99 |
| 43 |
532199638 |
ROD.LATCH.INTERLOCK Price: $7.99 |
| 44 |
532196338 |
ROD.ASM INTERLOCK Price: $5.99 |
| 45 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 46 |
532057079 |
THRUST WASHER Price: $1.99 |
