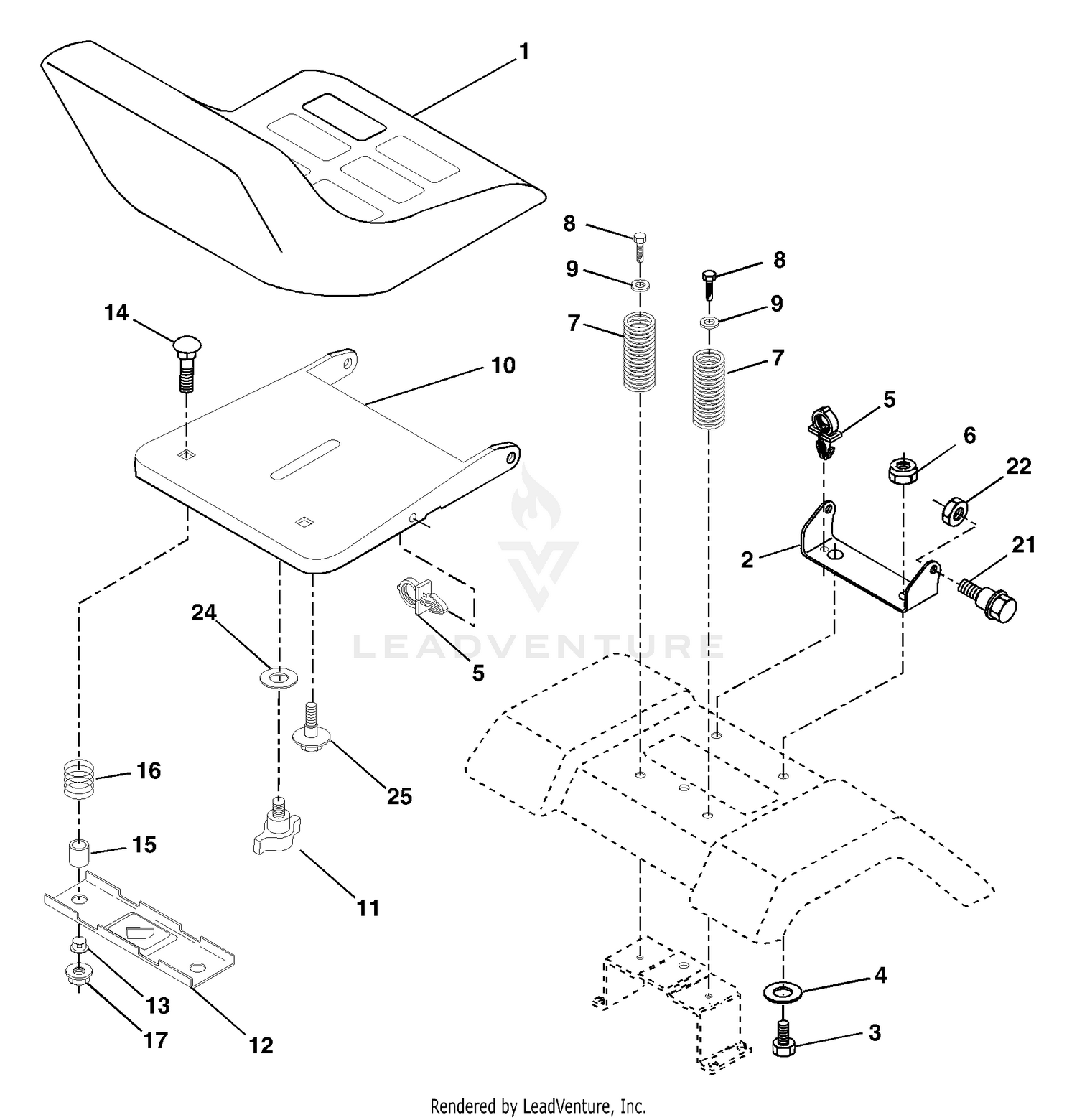

| Ref | Part Number | Description |
|---|
| 1 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532190120. Price: $149.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
70-7530 |
SPRING-COMPRESSION Price: $15.72 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
66-2720-03 |
VALVE LEVER ASM This part replaces 66-2720. Price: $56.12 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
63-7960 |
VALVE-LIFT Price: $636.36 |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
237-65 |
O-RING Price: $2.50 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
237-22 |
O-RING Price: $2.43 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
66-3130 |
FITTING-SPECIAL Price: $76.51 |
| 13 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
66-8150 |
HOSE-HYDRAULIC Price: $15.32 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 15 |
66-8500 |
HYD HOSE ASM Price: $89.96 |
| 16 |
321-11 |
SCREW-HH Price: $0.36 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
76-4830-03 |
VALVE ROD ASM This part replaces 76-4830. Price: $38.97 |
| 19 |
283-16 |
PIN-CLEVIS Price: $2.37 |
| 20 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 21 |
3220-2 |
NUT-JAM Price: $0.50 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
282-27 |
CLEVIS-ADJ Price: $24.71 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 24 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
66-8190 |
HYDRAULIC HOSE ASM Price: $85.54 |
| 26 |
340-86 |
FITTING-TEE Price: $35.23 |
| 27 |
304-99 |
STEM-HOSE Price: $34.00 |
| 28 |
237-22 |
O-RING Price: $2.43 |
| 29 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 30 |
27-4240 |
PIN-CYLINDER Price: $21.90 |
| 31 |
63-6630 |
HYD CYLINDER ASM Price: $683.92 |
| 32 |
3216-3 |
SCREW-HH Price: $7.20 |
| 33 |
66-8640 |
HYDRAULIC HOSE ASM Price: $104.12 |
| 34 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 35 |
340-70 |
NUT-LOCK Price: $2.10 |
| 36 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 37 |
63-7410 |
BRACKET-BULKHEAD Price: $9.20 |
| 38 |
321-4 |
SCREW-HH Price: $0.99 |
| 39 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
