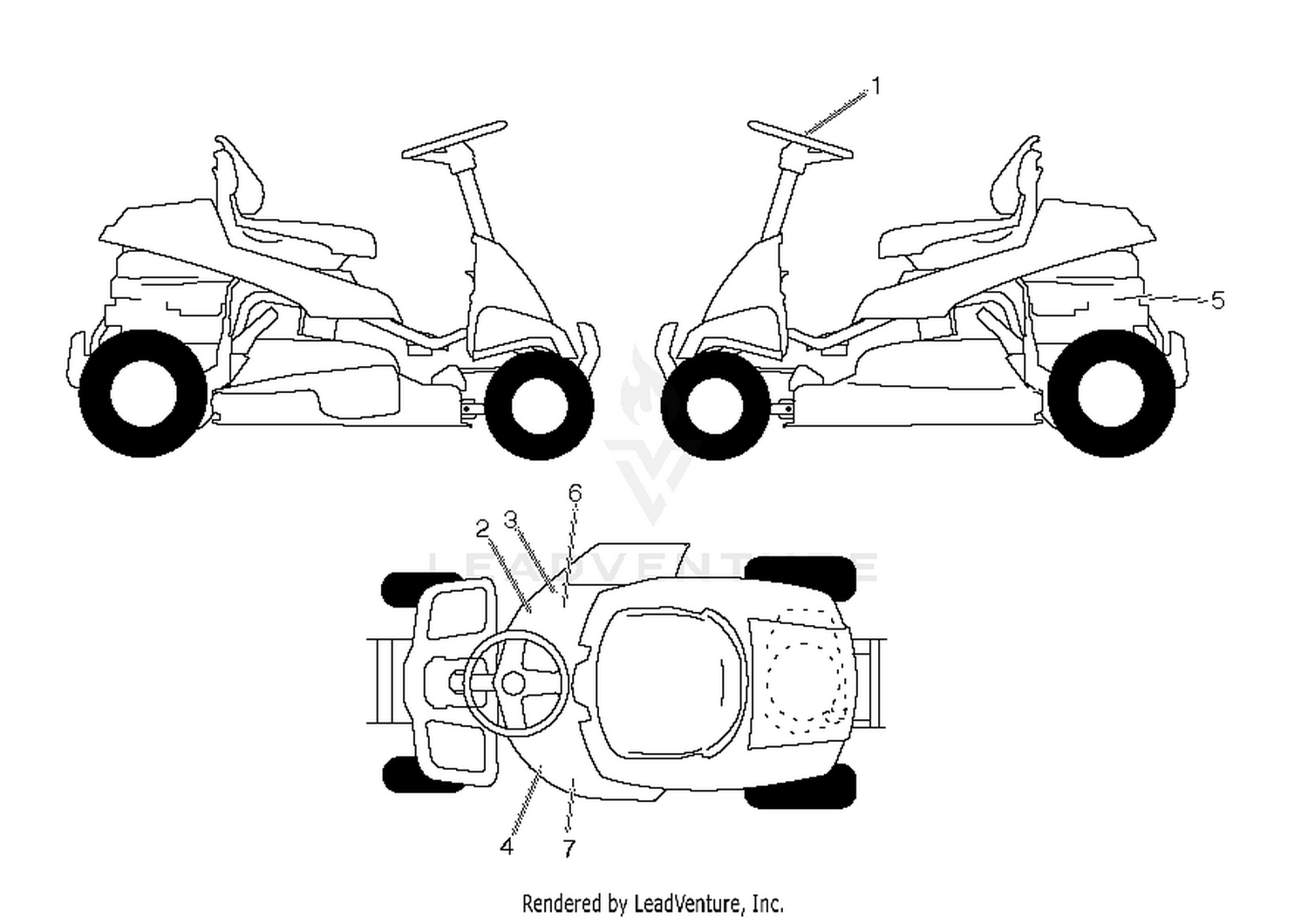

| Ref | Part Number | Description |
|---|
| 1 |
110-0641 |
COLLAR-HOC Price: $58.06 |
| 1 |
583532101 |
DECAL.STRWHL.STDHRSQ.PPRO This part replaces 532438501. Price: $3.99 |
| 1 |
631615 |
SHAFT & LEV Price: $6.48 |
| 2 |
107-7915 |
WASHER-THRUST Price: $1.97 |
| 2 |
532441497 |
DECAL.DECK.BELT.ROUTING.LRVB Price: $2.99 |
| 2 |
631767 |
SPRING This part replaces 632016. Price: $1.25 |
| 3 |
3290-256 |
PIN-HAIR Price: $1.01 |
| 3 |
581579301 |
DECAL.WARN.DFLCTR/CTFNGR.SRD. Price: $1.99 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 4 |
107-7904 |
PIN-CLEVIS Price: $36.06 |
| 4 |
585073201 |
DECAL.LRVB.DECK.HD.30INCH/SING Price: $1.99 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
325-12 |
SCREW-HH Price: $2.27 |
| 5 |
532408806 |
DECAL.ENG.BS.10.5HP.PWR.277047 Price: $1.99 |
| 5 |
630766 |
SPRING Price: $1.25 |
| 6 |
3296-45 |
NUT-HEX Price: $3.79 |
| 6 |
581579501 |
DECAL.MOWER.WARN.KEEP.HAND.AWY Price: $2.99 |
| 6 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 7 |
105-2808 |
END-ROD Price: $88.58 |
| 8 |
3220-5 |
NUT-JAM Price: $0.65 |
| 8 |
632045 |
SPRING Price: $1.25 |
| 9 |
111-4818 |
TUBE-HOC Price: $83.45 |
| 9 |
630758 |
SHUTTER Price: $1.20 |
| 10 |
111-4780 |
LH LIFT ARM ASM Price: $679.09 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 11 |
111-4783 |
RH LIFT ARM ASM Price: $679.09 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 12 |
107-3457 |
PIN-CLEVIS Price: $5.89 |
| 12 |
630739 |
WASHER Price: $1.25 |
| 13 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 13 |
630740 |
O RING Price: $1.49 |
| 14 |
111-5427 |
TUBE-HOC Price: $33.73 |
| 15 |
325-17 |
SCREW-HH Price: $2.90 |
| 15 |
630748 |
WELCH PLUG Price: $1.17 |
| 16 |
111-5391 |
SPACER Price: $16.83 |
| 17 |
111-5555 |
PIN ASM Price: $50.63 |
| 18 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
630751 |
COVER Price: $8.60 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 25 |
630973 |
SHAFT & LEV Price: $5.16 |
| 27 |
632527 |
FUEL FITTING This part replaces 631775. Price: $6.03 |
