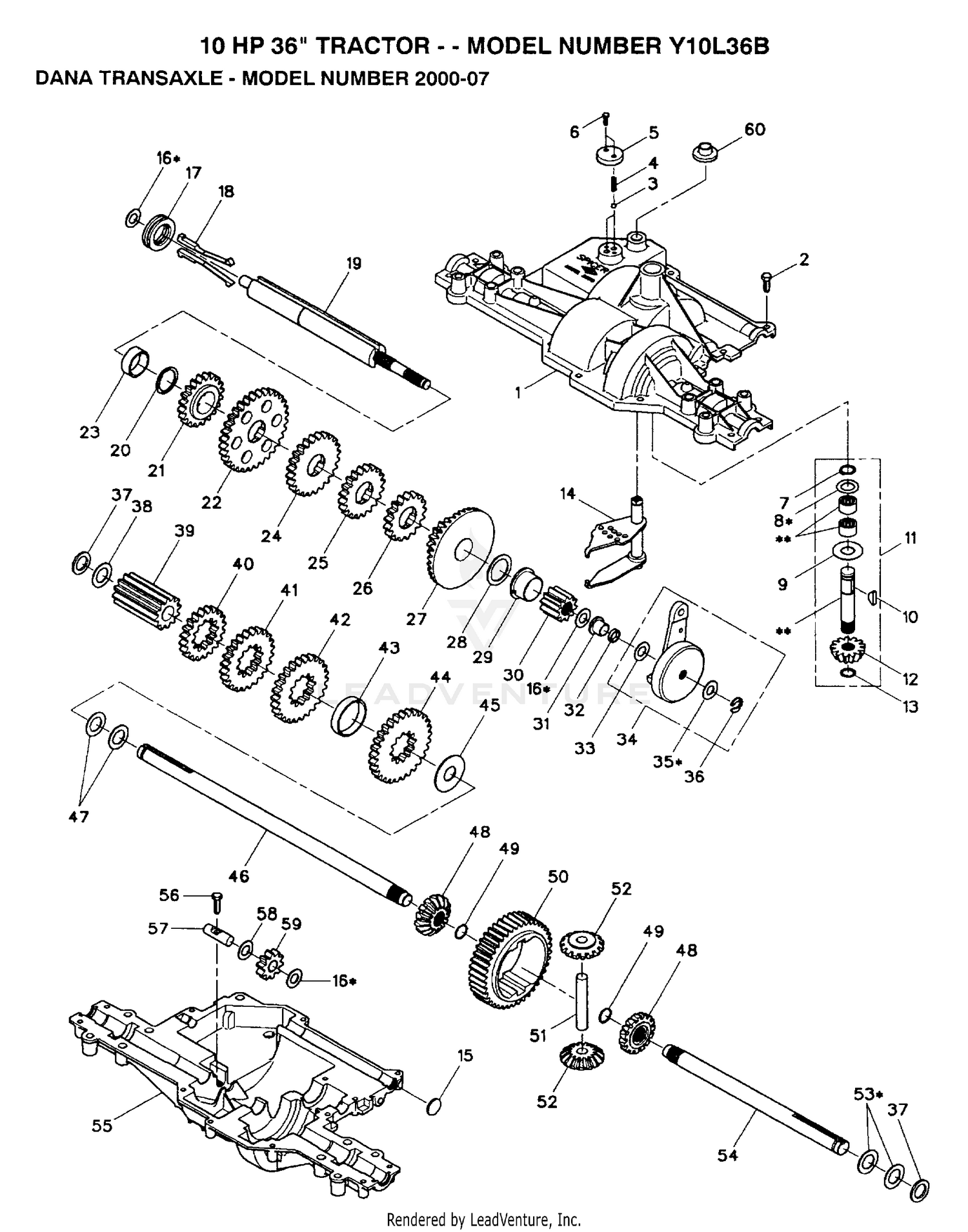

| Ref | Part Number | Description |
|---|
| 1 |
139171 |
HOUSING. UPPER Price: Call Us |
| 2 |
2274J |
SUB= 74760412 Price: Call Us |
| 3 |
134400 |
SUB= 68003 Price: Call Us |
| 4 |
134423 |
SPRING, DETENT Price: Call Us |
| 5 |
134422 |
COVER, DETENT Price: Call Us |
| 6 |
6731J |
SCREW, TAPPING, LARGE #8-32 X .50 Price: Call Us |
| 7 |
2267J |
RETAINING RING LT Price: Call Us |
| 8 |
134793 |
ASM KIT SHIM 4689 Price: Call Us |
| 9 |
120415X |
WASHER T Price: Call Us |
| 10 |
2257J |
WOODRUFF KEY Price: Call Us |
| 10 |
98-7693 |
ALTERNATOR ASM Price: $511.95 |
| 11 |
134390 |
ASSEMBLY, KIT, INPUT SHAFT Price: Call Us |
| 12 |
134381 |
PINION,, BEVE, 13 TEETH Price: Call Us |
| 13 |
134383 |
RING, RETAINING Price: Call Us |
| 14 |
134387 |
ASSEMBLY, SHIFTER Price: Call Us |
| 15 |
134428 |
SEAL Price: Call Us |
| 16 |
134393 |
ASSEMBLY, KIT, SHIM, .500 SHAFT Price: Call Us |
| 17 |
105913X |
SUB= 138246 Price: Call Us |
| 18 |
134391 |
ASSEMBLY, KIT, CLUTCH KEYS Price: Call Us |
| 19 |
134415 |
SHAFT, DRIVE Price: Call Us |
| 20 |
98-7707 |
PULLEY-ALTERNATOR Price: $64.31 |
| 21 |
134409 |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 22 |
134408 |
GEAR , SPUR, 32 TEETH Price: Call Us |
| 23 |
134432 |
SPACER 1.130X1.330X.465 Price: Call Us |
| 24 |
134406 |
GEEAR, SPUR, 24 TEETH Price: Call Us |
| 25 |
134403 |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 26 |
134402 |
GEAR, SPUR, 17 TEETH Price: Call Us |
| 27 |
134431 |
GEAR BEVEL 39 & SPUR 15 Price: Call Us |
| 28 |
134429 |
WASHER, PLAIN 1,135 X 1.56 X .062 Price: Call Us |
| 29 |
134421 |
BEARING, FLANGE Price: Call Us |
| 30 |
134418 |
GEAR, SPUR, 10 TEETH Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
134420 |
BEARING, FLANGE Price: Call Us |
| 32 |
134439 |
SEAL Price: Call Us |
| 33 |
120464X |
WASHER T Price: Call Us |
| 34 |
139166 |
ASSEMBLY, KIT CONE BRAKE Price: Call Us |
| 35 |
134395 |
ASSEMBLY, KIT, SHAM .464 SHAFT Price: Call Us |
| 36 |
134438 |
KLIP RING Price: Call Us |
| 37 |
134401 |
NEOPRENE WASHER Price: Call Us |
| 38 |
2263J |
WASHER 062 Price: Call Us |
| 39 |
134411 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 40 |
134380 |
GEAR, SPUR, 17 TEETH Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
134414 |
GEAR, SPUR, 24 TEETH Price: Call Us |
| 42 |
134413 |
GEAR, SPUR, 26 TEETH Price: Call Us |
| 43 |
134433 |
SPACER 1.710X1.910X.375 Price: Call Us |
| 44 |
134412 |
GEAR SPUR, 29 TEETH Price: Call Us |
| 45 |
134382 |
WASHER, PLAIN, .758 X 1.88 X .062 Price: Call Us |
| 46 |
139167 |
AXLE, L.H. Price: Call Us |
| 47 |
2264J |
WASHER 031 Price: Call Us |
| 48 |
110081X |
GEAR 15T T Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 50 |
134419 |
GEAR, SPUR, 41 TEETH Price: Call Us |
| 51 |
120952X |
SHAFT T Price: Call Us |
| 52 |
110082X |
GEAR 1ST T Price: Call Us |
| 53 |
134394 |
ASM KIT SHIM Price: Call Us |
| 54 |
139168 |
AXLE, R.H. Price: Call Us |
| 55 |
139169 |
HOUSING, LOWER Price: Call Us |
| 56 |
2274J |
SUB= 74760412 Price: Call Us |
| 57 |
134385 |
SHAFT, IDLER Price: Call Us |
| 58 |
120465X |
WASHER T Price: Call Us |
| 59 |
139170 |
GEAR, SPUR, 10 TEETH Price: Call Us |
| 60 |
134399 |
SHIFTER BOOT Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
