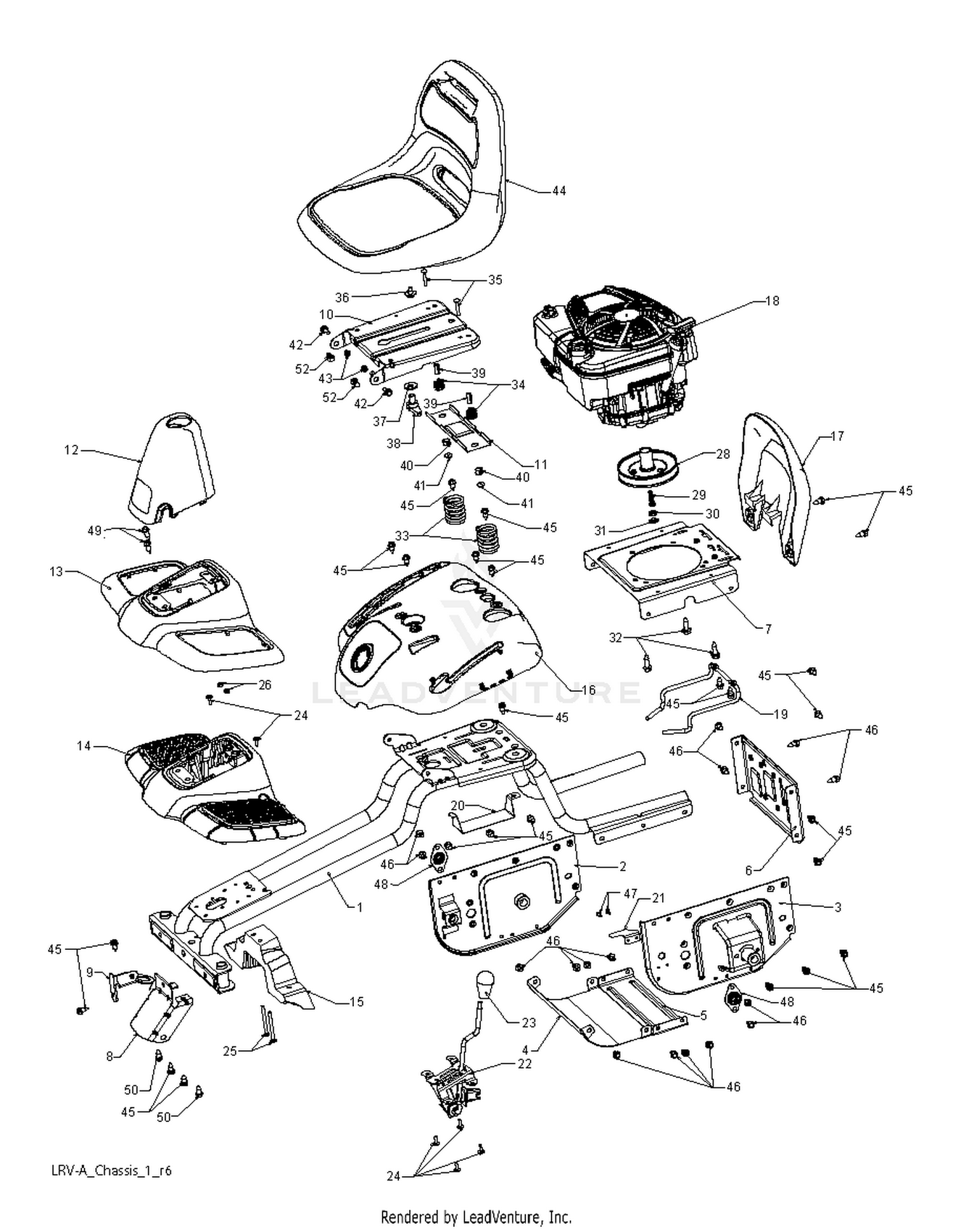

| Ref | Part Number | Description |
|---|
| 1 |
532428048 |
CHASSIS.WLD.26".LRV Price: $129.99 |
| 5 |
532428110 |
STRAP.CROSS.FRICTION.DRIVE Price: $9.99 |
| 6 |
532428109 |
COVER, FRICTION DRIVE Price: $14.99 |
| 7 |
532428040 |
PLATE, ENGINE Price: $24.99 |
| 9 |
532428856 |
BRACKET, STEERING SUPPORT Price: $4.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 11 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $4.99 |
| 12 |
583513801 |
DUST.BOOT.LRV(INTERNATIONAL) This part replaces 532436891. Price: $54.99 |
| 13 |
532436496 |
FOOTREST.AESTHETIC.WE.GRN.LRV Price: $32.99 |
| 14 |
532428250 |
STRUCTURE, FOOT REST Price: $49.99 |
| 15 |
532428249 |
SUPPORT, FOOT REST Price: $24.99 |
| 16 |
532436497 |
FENDER.CNTRL.PNL.WE.GRN.LRV Price: $74.99 |
| 17 |
532428348 |
GUARD.ENGINE.LRV Price: $17.99 |
| 19 |
532428986 |
KEEPER, BELT Price: $6.99 |
| 20 |
532428046 |
BRACKET, BATTERY LRV Price: $3.99 |
| 21 |
532429815 |
LEVER, SWITCH Price: $2.99 |
| 22 |
532428826 |
CABLE.ASM.CLUTCH.W/BRACKET Price: $74.99 |
| 23 |
391363 |
Flywheel Assembly Price: Call Us |
| 23 |
532149846 |
KNOB.OVAL.CUSTOM.BLACK Price: $5.99 |
| 24 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 25 |
872140424 |
BOLT.CARRIAGE Price: $2.99 |
| 26 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 28 |
580747201 |
HUB.FRICTION.COMPOSITE SUBASM This part replaces 532428301. Price: $34.99 |
| 29 |
532430817 |
BOLT, SCKT HD 3/8-24 X 1 .25 Price: $2.99 |
| 30 |
532430470 |
BEARING.BALL.689ZZ Price: $4.99 |
| 31 |
532437322 |
SPACER.NEUTRAL Price: $2.99 |
| 32 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 33 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 34 |
532121250 |
SPRING Price: $3.99 |
| 35 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 36 |
532127018 |
BOLT,SHOULD Price: $3.99 |
| 37 |
819171912 |
WASHER Price: $3.99 |
| 38 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 39 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 40 |
532121248 |
BUSHING Price: $3.99 |
| 41 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 42 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 43 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 44 |
532440691 |
SEAT.SUBASY.OPP.WEEDEATER.LRVA Price: $129.99 |
| 45 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 46 |
817490508 |
SCREW LT Price: $3.99 |
| 47 |
532086777 |
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) Price: $1.99 |
| 48 |
532408981 |
BEARING FLANGE BALL Price: $5.99 |
| 49 |
817060516 |
SCREW 5/16-18X1 Price: $3.99 |
| 50 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 74 |
93521 |
Screw-Rotating Screen Mounting Price: Call Us |
| 85 |
91386 |
Screw-Cylinder Head Price: Call Us |
| 90 |
393394 |
Carburetor Assy. Price: Call Us |
| 91 |
391067 |
Body Assy.-Upper Carburetor Price: Call Us |
| 92 |
390998 |
Body-Upper Carburetor Price: Call Us |
| 93 |
23108 |
Bushing-Throttle Shaft Price: Call Us |
| 95 |
93038 |
Screw, Throttle Valve Mtg. Sem Price: Call Us |
| 96 |
221939 |
Valve-Throttle Price: Call Us |
| 97 |
298535 |
Shaft Assy.-Throttle Price: Call Us |
| 98 |
91920 |
Screw Price: Call Us |
| 99 |
26157 |
Spring Price: Call Us |
| 100 |
61967 |
Stop-Throttle Price: Call Us |
| 101 |
93043 |
Pin Price: Call Us |
| 103 |
298514 |
Float-Carburetor Price: Call Us |
| 107 |
393383 |
Body Assy. Lower Carburetor Price: Call Us |
| 108 |
390936 |
Valve-Choke Price: Call Us |
| 109 |
391583 |
Shaft Lever, Choke Price: Call Us |
| 110 |
62899 |
Washer-Choke Lever Price: Call Us |
| 111 |
26155 |
Spring-Lever Price: Call Us |
| 112 |
23123 |
Screw-Choke Lever Price: Call Us |
| 119 |
90746 |
Screw-Machine. Fil.Hd. Price: Call Us |
| 120 |
92290 |
Washer-Lock Price: Call Us |
| 121 |
391071 |
Carburetor Overhaul Kit Price: Call Us |
| 169 |
90832 |
Washer-Lock Price: Call Us |
| 186 |
67218 |
Connector-Fuel Price: Call Us |
| 189 |
90366 |
Lockwasher Price: Call Us |
| 257 |
93543 |
Screw-Sem Price: Call Us |
| 304 |
391229 |
Housing-Blower Price: Call Us |
| 305 |
93158 |
Screw Price: Call Us |
| 324 |
222283 |
Screen-Rotating Price: Call Us |
| 332 |
230674 |
Nut-Hex Price: Call Us |
| 333 |
298968 |
Armature Assembly Price: Call Us |
| 334 |
93381 |
Screw Price: Call Us |
| 339 |
298185 |
Breaker Assy.-Ignition Price: Call Us |
| 340 |
26018 |
Spring Breaker Arm Price: Call Us |
| 342 |
298125 |
Plunger-Contact Price: Call Us |
| 343 |
298060 |
Condenser Price: Call Us |
| 345 |
211327 |
Cover-Breaker Price: Call Us |
| 346 |
93400 |
Screw-Breaker Cover Mounting Sem Price: Call Us |
| 353 |
92791 |
Washer-Lock Price: Call Us |
| 354 |
90576 |
Nut Price: Call Us |
| 356 |
391115 |
Wire-Ground Price: Call Us |
| 363 |
19068 |
Puller-Fiywheel (Optional Accessory) Price: Call Us |
| 451 |
90364 |
Washer-Lock-No. 8 x 3/64 x 1/32" Price: Call Us |
| 506 |
90072 |
Screw-Machine Fill. Hd. 8-32 x 5/8" Price: Call Us |
| 507 |
66895 |
InsuIator Price: Call Us |
| 518 |
69932 |
Rope-Starter Price: Call Us |
| 564 |
92980 |
Screw-Cap, Hex. Hd. Price: Call Us |
| 573 |
391220 |
Plate-Back Price: Call Us |
| 586 |
22906 |
Lock-Flywheel Nut Price: Call Us |
| 587 |
220509 |
Clamp-Cable Price: Call Us |
| 588 |
211976 |
Bracket-Armature Mfg. Price: Call Us |
| 589 |
93473 |
Screw-Armature Bracket to Cylinder Mounting Price: Call Us |
| 590 |
93171 |
Screw Price: Call Us |
| 636 |
92864 |
Washer-Lock Price: Call Us |
| 637 |
66154 |
Washer-Back Plate Term. Price: Call Us |
| 638 |
26404 |
Washer-Back Plate Term. Price: Call Us |
| 654 |
230783 |
Nut-Contact Point Adjusting Screw Price: Call Us |
| 722 |
68768 |
Seal-Plunger Price: Call Us |
| 723 |
93516 |
Eyelet-Seal Retainer Price: Call Us |
| 724 |
221873 |
Retainer-Plunger Seal Price: Call Us |
| 736 |
93542 |
Nut-Clip Price: Call Us |
| 851 |
221798 |
Terminal-Cable Price: Call Us |
