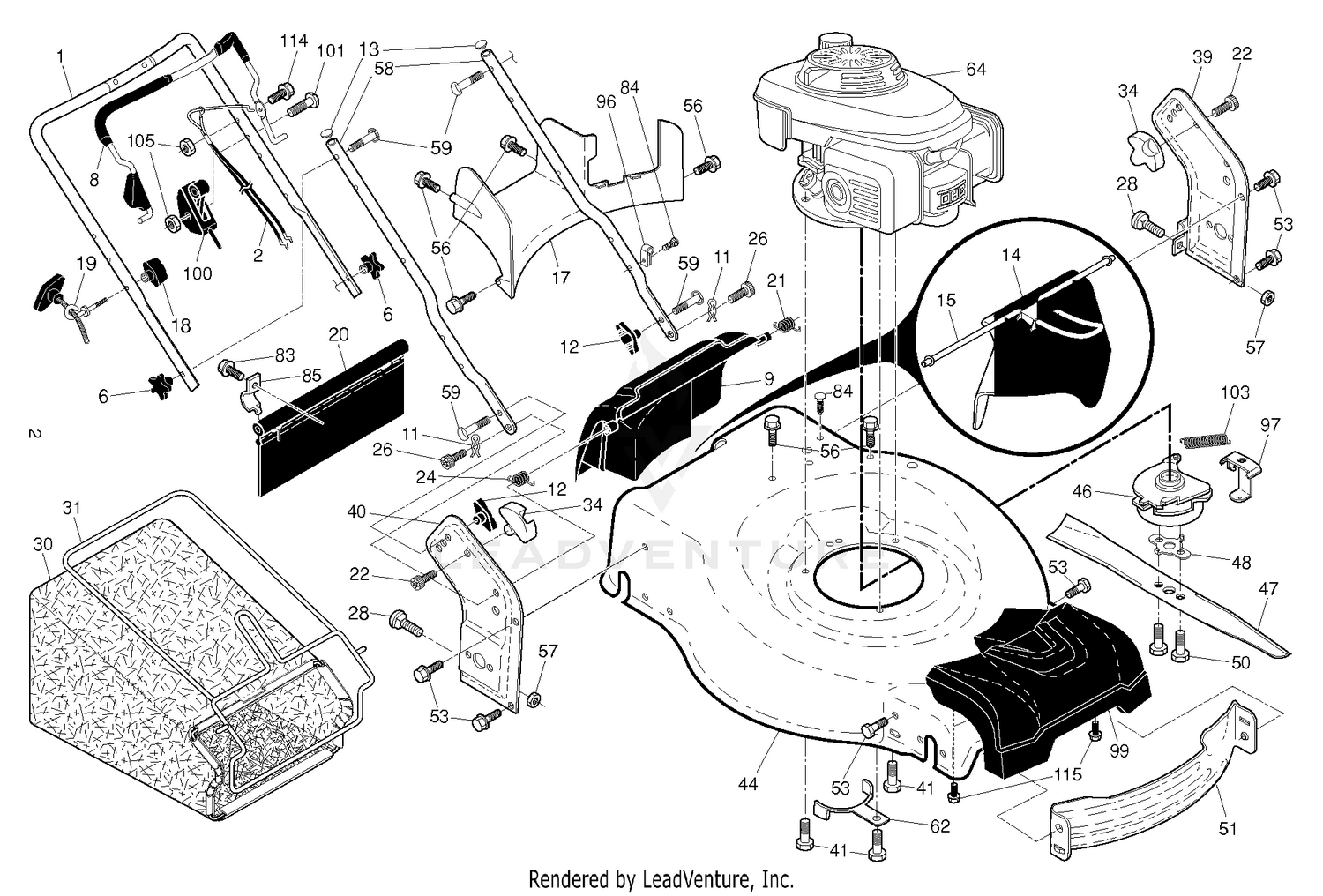

| Ref | Part Number | Description |
|---|
| 1 |
585854806 |
HANDLE.UP.3POS.BS.AW2.GREY Price: $49.99 |
| 1 |
60-3070 |
VALVE-SHORT Price: $47.59 |
| 2 |
583864201 |
CABLE.BBC.HONDA.NO.RDI.22+ Price: $30.99 |
| 2 |
60-3060 |
WASHER Price: $8.41 |
| 3 |
60-3090 |
DISCONTINUED Price: Call Us |
| 4 |
60-3100 |
VALVE-LONG This part replaces 63-4670. Price: $118.69 |
| 5 |
63-4660 |
DISCONTINUED Price: Call Us |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 6 |
63-4650 |
WASHER Price: $40.89 |
| 7 |
60-3120 |
DISCONTINUED Price: Call Us |
| 8 |
585645312 |
LEVER.ASM.BBC.HONDA.ERGO.OM Price: $39.99 |
| 8 |
60-3130 |
DISCONTINUED Price: Call Us |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 9 |
60-3100 |
VALVE-LONG Price: $118.69 |
| 10 |
60-3110 |
WASHER Price: $3.47 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 11 |
60-3160 |
DISCONTINUED Price: Call Us |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 12 |
60-3140 |
DISCONTINUED Price: Call Us |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 13 |
60-3150 |
DISCONTINUED Price: Call Us |
| 14 |
532437132 |
DEFLECTOR.CHUTE.22+REAR Price: $22.99 |
| 14 |
86-6640 |
SEAL - O-RING Price: $8.06 |
| 15 |
532437273 |
HANDLE DEFLECTOR.22+REAR Price: $14.99 |
| 15 |
86-6630 |
DISCONTINUED Price: Call Us |
| 16 |
86-6620 |
DISCONTINUED Price: Call Us |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC Price: $32.99 |
| 17 |
86-6660 |
DISCONTINUED Price: Call Us |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 18 |
86-6610 |
BOLT - INLET Price: $110.66 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 20 |
532444501 |
SKIRT.REAR.22PLUS.RGD.LW(2 2MC Price: $11.99 |
| 21 |
532419949 |
SPRING.LH.BLACK Price: $4.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 24 |
532419948 |
SPRING.RH.GRAY Price: $4.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
596136401 |
Bolts This part replaces 872250505. Price: $2.99 |
| 30 |
580943401 |
RB GBAG.B55110010.GENERIC.SERV This part replaces 580943405. Price: $39.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK Price: $17.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $4.99 |
| 39 |
585900703 |
BRACKET.ASM.HANDLE.LT.22+.GREY Price: $24.99 |
| 40 |
585900803 |
BRACKET.ASM.HANDLE.RT.22+.GREY Price: $19.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 44 |
581708341 |
HOUSING.22+R.RG.HD.WO.LT/ST.OR Price: $159.99 |
| 47 |
532438388 |
BLADE.3N1.22+W/HONDA.BBC.PREM Price: $22.99 |
| 48 |
532441768 |
SPACER.BLADE.HONDA.BBC Price: $24.99 |
| 50 |
532180460 |
BOLT.BLADE Price: $4.99 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $12.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
593270403 |
HANDLE.LOWER.ASM.W/PLUG.22+.49 This part replaces 585908203. Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 62 |
532425711 |
BRACKET.KEEPER.BELT Price: $5.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
580680302 |
BRACKET.ASM.BBC.MOUNTING.BZP Price: $14.99 |
| 99 |
585668702 |
COVER.ASM.FRONT.HUSQ.22+RGD Price: $24.99 |
| 100 |
532439468 |
CONTROL.THROTTLE.HOND.BBC.58.5 Price: $44.99 |
| 101 |
532188365 |
Price: Call Us |
| 103 |
532180393 |
SPRING.BBC Price: $4.99 |
| 105 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 114 |
532199687 |
SCREW Price: $2.99 |
| 115 |
584299401 |
SCREW.HI-LO. 5/16 X 1.00 Price: $2.99 |
