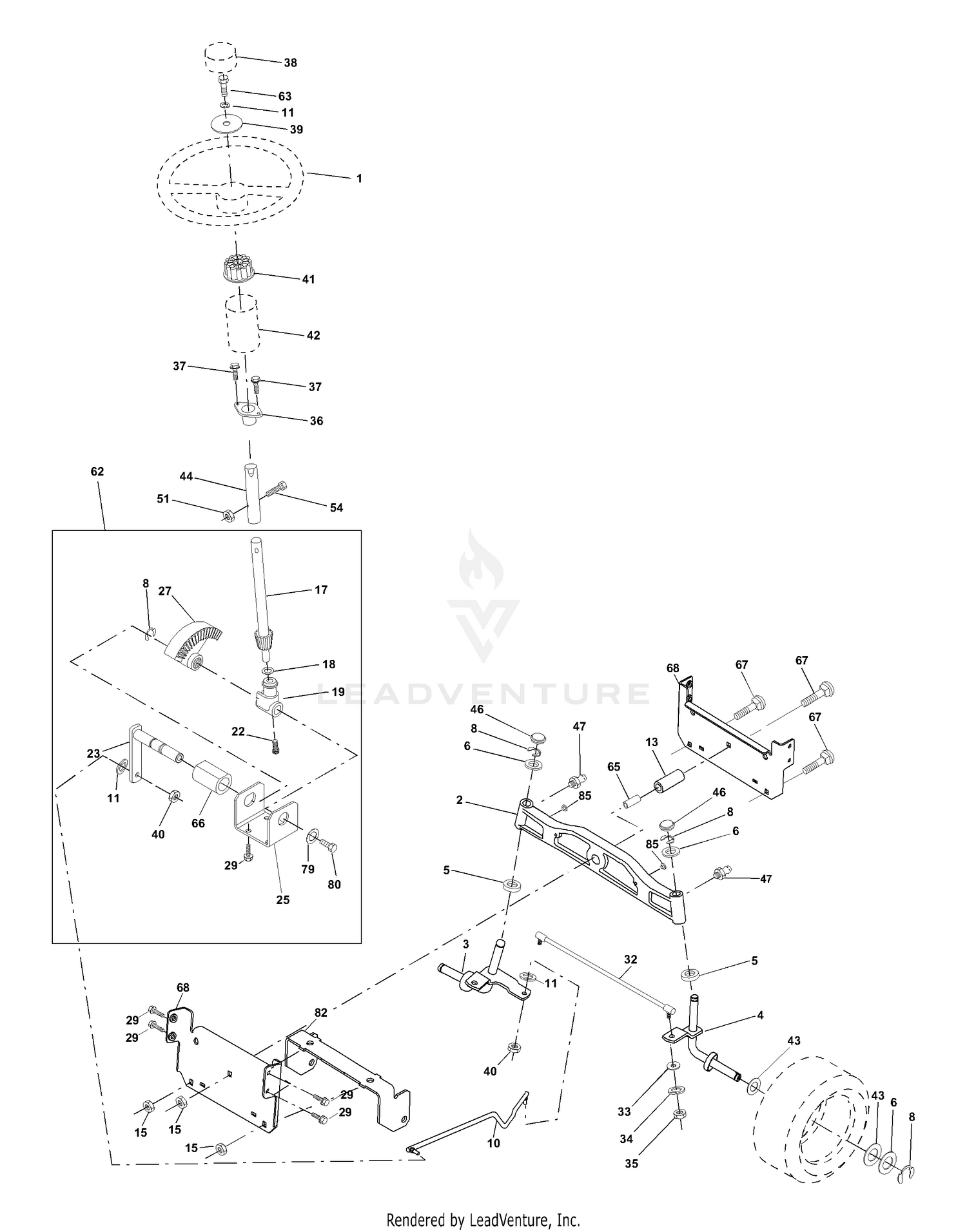

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532165854. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 3 |
98-1215 |
HOSE-LOWER, RADIATOR Price: $60.21 |
| 4 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
104-5232 |
CLIP-WIRE This part replaces 60-0930. Price: $3.13 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121248 |
BUSHING Price: $4.99 |
| 6 |
98-7895 |
TUBE Price: $6.88 |
| 7 |
98-1214 |
HOSE-RADIATOR, UPPER Price: $62.92 |
| 8 |
281-2 |
PLUG-PIPE, SQH Price: $2.09 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
58-5420 |
CAP-PRESSURE Price: $34.59 |
| 10 |
532169832 |
DRAGLINK.15".TIRES Price: $64.99 |
| 10 |
59-8440 |
DECAL-PRESSURE WARNING, RADIATOR Price: $8.90 |
| 11 |
58-5540 |
COOLER-OIL Price: $1,352.93 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
68-7575 |
STRIP-SEALING Price: $4.18 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 13 |
92-6062 |
FOAM-SEAL, RADIATOR Price: $30.90 |
| 14 |
92-4753-03 |
STRAP-COOLER, OIL Price: $26.43 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 15 |
75-7790 |
HANDLE Price: $28.16 |
| 16 |
47-2550 |
GRIP-HANDLE, BAG Price: $3.86 |
| 17 |
48-7680 |
SCREW-HH Price: $0.61 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532156546. Price: $42.99 |
| 18 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT Price: $8.99 |
| 19 |
76-2290 |
SPACER Price: $4.14 |
| 20 |
92-4729 |
DISCONTINUED Price: Call Us |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 22 |
532165857 |
SCREW.HX.WSH.HD Price: $3.99 |
| 23 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 23 |
531154301 |
SERVICE.KIT SHAFT ASSY SHAFT A This part replaces 532165851. Price: $22.99 |
| 24 |
98-1250 |
SHROUD-FAN Price: $351.34 |
| 25 |
532154406 |
BRACKET STEERING Price: $6.99 |
| 25 |
98-1234 |
HOSE-INTAKE Price: $103.04 |
| 26 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 28 |
3290-271 |
RIVET-POP Price: $0.25 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
304-46 |
DRAINCOCK Price: $7.55 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
323-9 |
SCREW-HH Price: $1.29 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 39 |
819132411 |
Washer Price: $2.99 |
| 40 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 41 |
93-1420 |
TRAY-BATTERY Price: $26.64 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 42 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 43 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 44 |
532153721 |
SHAFT EXT STEERING This part replaces 532153720. Price: $54.99 |
| 45 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 46 |
100-1579 |
GUARD - FAN Price: $514.47 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 62 |
584371701 |
KIT.STEER.ASM.P/L This part replaces 532167902. Price: $119.99 |
| 63 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 66 |
532154404 |
BEARING ARM Price: $3.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 79 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 80 |
874950612 |
BOLT.HX.NYLON3/8-16X Price: $4.99 |
| 82 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
