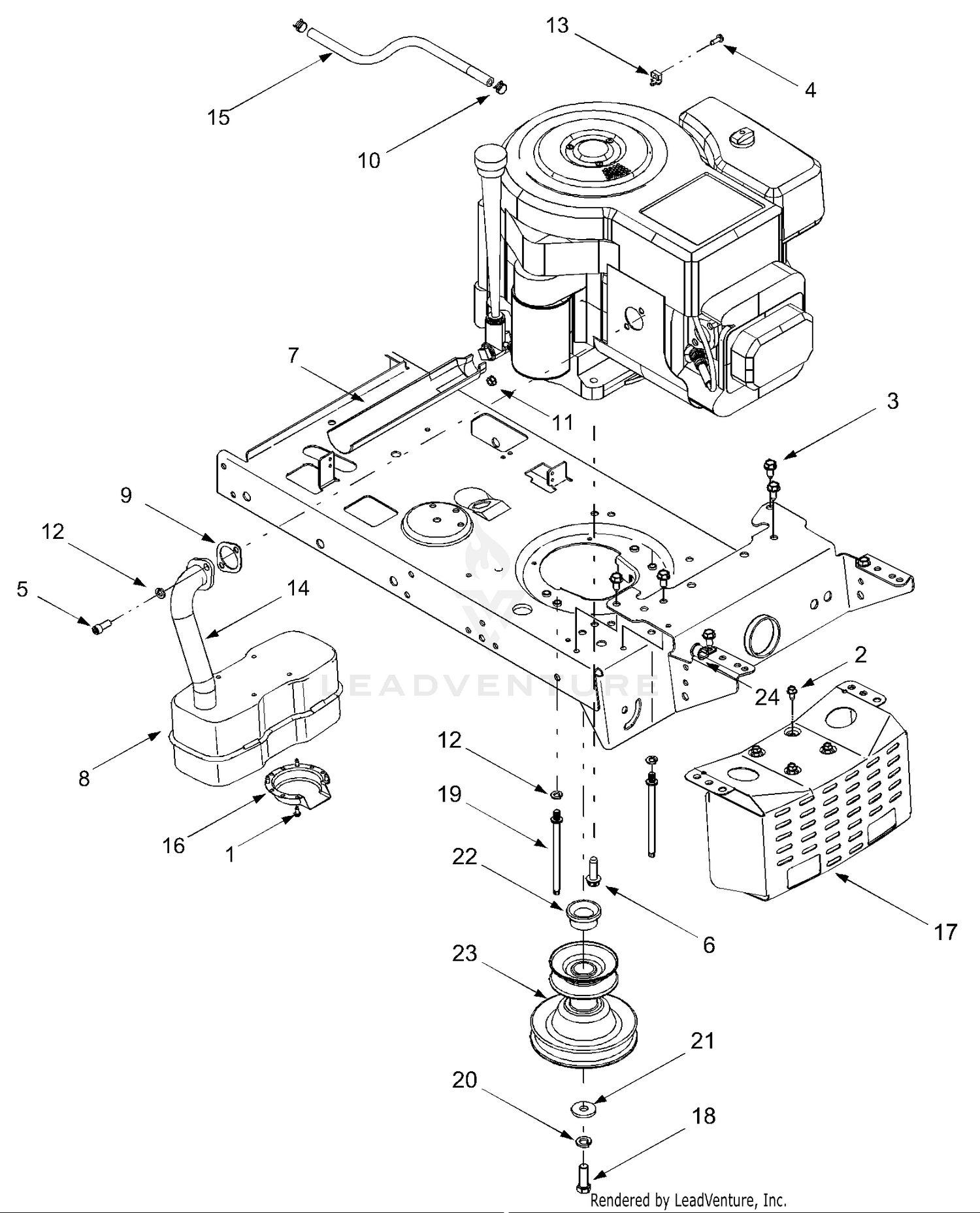

| Ref | Part Number | Description |
|---|
| 1 |
710-0148 |
Screw, #8-32 x .375 Price: $3.90 |
| 2 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 3 |
710-0726 |
Self-tapping Screw, 5/16-12 x .75 Price: $3.82 |
| 4 |
710-1237 |
Screw, #10-32 x .625 Price: $3.89 |
| 5 |
710-1314A |
Socket Cap Screw, 5/16-18 x .625 Price: $4.05 |
| 6 |
710-1315 |
Self-tapping Screw, 3/8-16 x 1.25 Price: $3.90 |
| 7 |
731-1682A |
Oil Drain Sleeve Price: $6.79 |
| 8 |
951-0617C |
Single Inlet Muffler This part replaces 751-0617A. Price: $138.70 |
| 9 |
BS-692236 |
Exhaust Gasket This part replaces 721-0208. Price: $4.66 |
| 10 |
726-0205 |
Hose Clamp, .490 Price: $3.71 |
| 11 |
712-0271 |
Hex Sems Nut, 1/4-20 Price: $3.78 |
| 12 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 13 |
BS-690798 |
Alternator This part replaces 751B213146. Price: $4.88 |
| 14 |
751-0619B |
EXHAUST PIPE Not Available This part replaces 751-0619A. Price: |
| 15 |
751-0535 |
Fuel Line Hose Price: Call Us |
| 16 |
751-0564B |
Deflector, Muffler This part replaces 751-0564A. Price: $12.14 |
| 17 |
783-0615E-0637 |
Muffler Heat Shield This part replaces 783-0615C. Price: $56.32 |
| 18 |
710-3029 |
Hex Screw, 7/16-20 x 1.25 Price: $3.82 |
| 19 |
711-1044A |
Belt Guard Pin This part replaces 711-1044. Price: $7.61 |
| 20 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 21 |
736-0322 |
Flat Washer, .450 x 1.25 x .164 Price: $8.42 |
| 22 |
750-0956 |
Spacer, 1.0 x 1.4 x .825 Price: $17.79 |
| 23 |
956-04023 |
Engine Pulley, 3.39 X 5.56 This part replaces 756-04023. Price: $112.24 |
