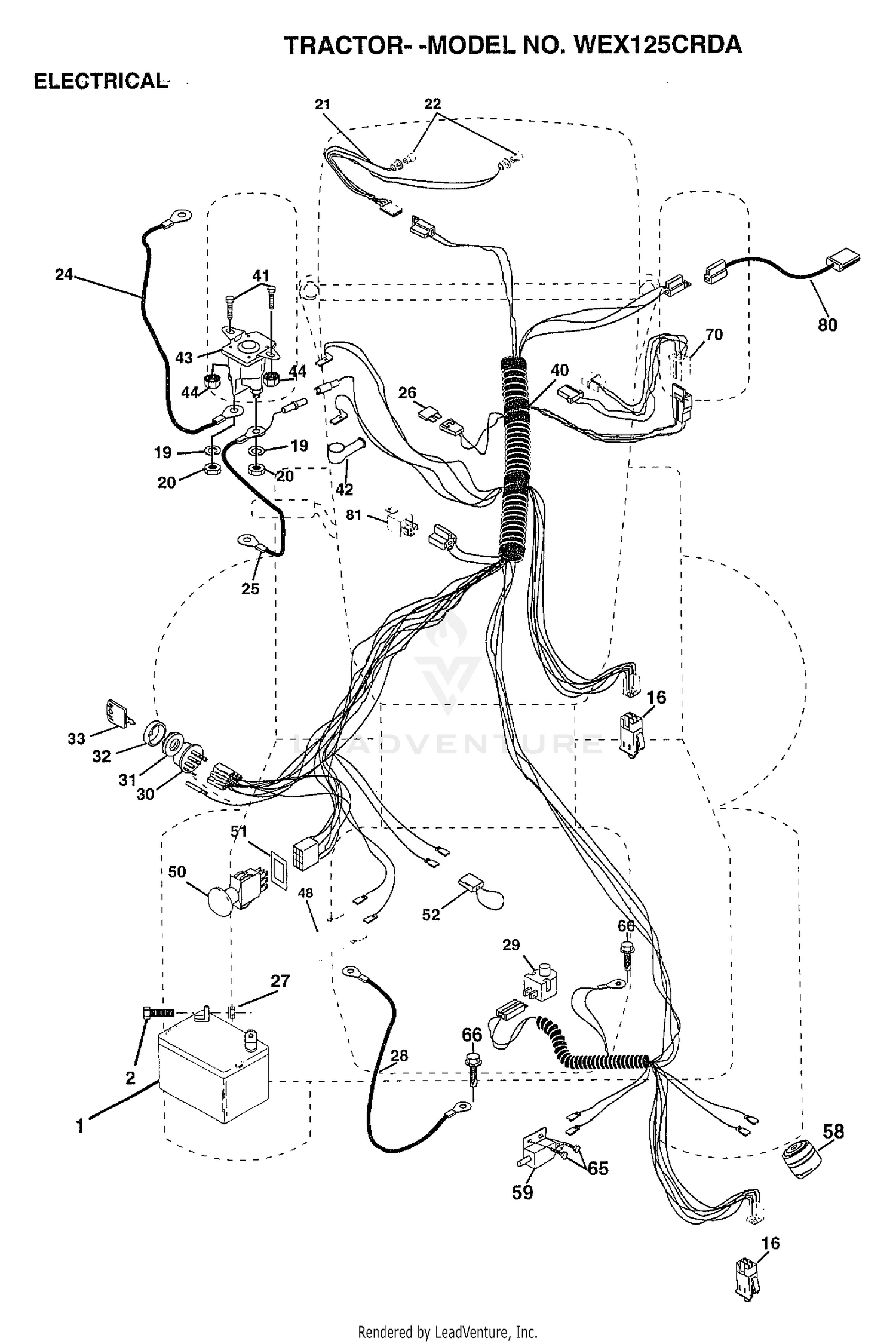

| Ref | Part Number | Description |
|---|
| REFER |
REFER |
TO IMAGE Price: Call Us |
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 2 |
114-4680 |
TANK ASM This part replaces 93-2225. Price: $402.21 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 4 |
93-4637 |
WASHER-FLAT Price: $1.83 |
| 6 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 9 |
56-2520 |
FITTING-SHUT OFF, FUEL Price: $31.19 |
| 10 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 11 |
112-0212 |
FITTING-FUEL This part replaces 93-2299. Price: $46.70 |
| 13 |
94-1364-03 |
PLATE ASM Price: $155.56 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
33115-020 |
SCREW-HH Price: $0.88 |
| 18 |
110-7504 |
HOSE-FUEL This part replaces 94-4353. Price: $4.42 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
2412-41 |
CLAMP-R Price: $4.82 |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 21 |
166181 |
HARNESS.ASM.LIGHT W/4152J Price: Call Us |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 23 |
93-2298 |
HOSE-FUEL Price: $10.13 |
| 24 |
56-2230 |
HOSE-FUEL Price: $3.66 |
| 25 |
165987 |
CABLE.BATTERY.CRD Price: Call Us |
| 25 |
237-124 |
GROMMET Price: $2.30 |
| 26 |
166180 |
FUSE.15 AMP Price: Call Us |
| 26 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 27 |
73510400 |
NUT Price: Call Us |
| 29 |
160784 |
SWITCH.PLUNGER Price: Call Us |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
166158 |
HARNESS.IGN.CRD.ELECT Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 50 |
154959 |
PTO SWITCH.BLK Price: Call Us |
| 51 |
140405 |
RING RETAIN PTO Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 58 |
165943 |
BUZZER CRD Price: Call Us |
| 59 |
166299 |
SWITCH.FBI.CRD Price: Call Us |
| 65 |
17211008 |
SCREW Price: Call Us |
| 66 |
17490608 |
SCREW LT Price: Call Us |
| 70 |
166668 |
HARNESS.ENGINE Price: Call Us |
| 80 |
146685 |
HARNESS.CLUT.EVX. Price: Call Us |
