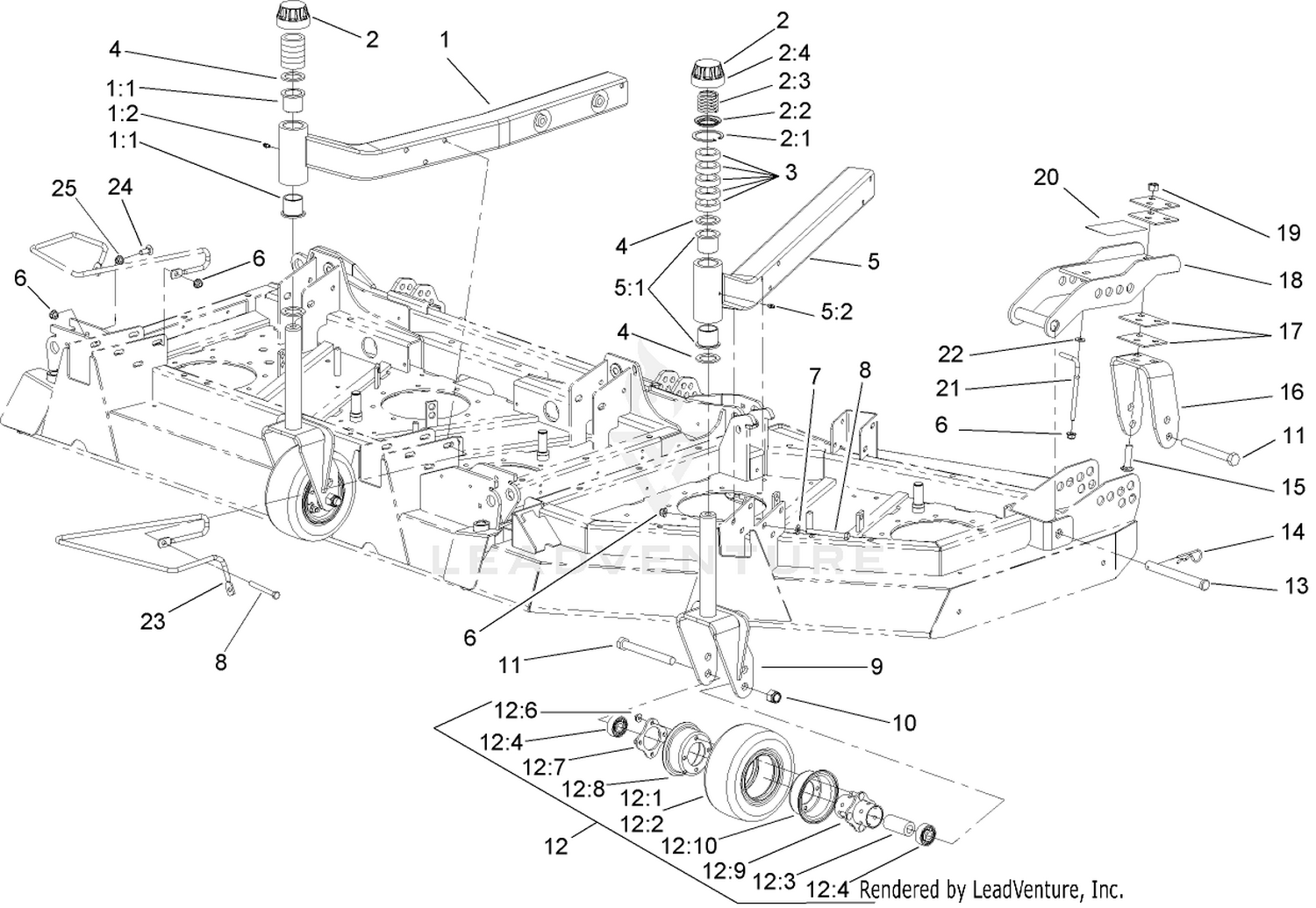

| Ref | Part Number | Description |
|---|
| 1 |
105-7414 |
CENTER CASTOR ARM ASM Price: $677.95 |
| 2 |
92-9727 |
HOC CAP ASM Price: $78.05 |
| 3 |
69-1510 |
SPACER Price: $4.48 |
| 4 |
69-6860 |
WASHER-THRUST Price: $3.15 |
| 5 |
105-7429 |
SIDE CASTOR ARM ASM Price: $576.30 |
| 6 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
323-15 |
SCREW-HH Price: $1.53 |
| 9 |
140-6302-01 |
FORK-CASTOR This part replaces 92-7750-01. Price: $168.99 |
| 10 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 11 |
327-24 |
SCREW-HH Price: $7.99 |
| 12 |
93-9938 |
WHEEL ASM Price: $144.61 |
| 13 |
100-5569 |
PIN-CLEVIS Price: $22.34 |
| 14 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 15 |
3233-4 |
SCREW-CARR Price: $1.90 |
| 16 |
105-7457-01 |
FORK-REAR Price: $79.33 |
| 17 |
104-7524 |
SHIM Price: $5.30 |
| 18 |
104-7529-01 |
BRACKET-CASTOR Price: $225.46 |
| 19 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 20 |
100-5623 |
DECAL-HOC Price: $20.17 |
| 20 |
104-3579 |
DECAL-HOC Price: $23.95 |
| 21 |
106-2047 |
ROD-TENSION Price: $9.83 |
| 22 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 23 |
107-0183 |
GUIDE-HOSE, LH Price: $130.70 |
| 24 |
3231-2 |
BOLT-CARR Price: $0.81 |
