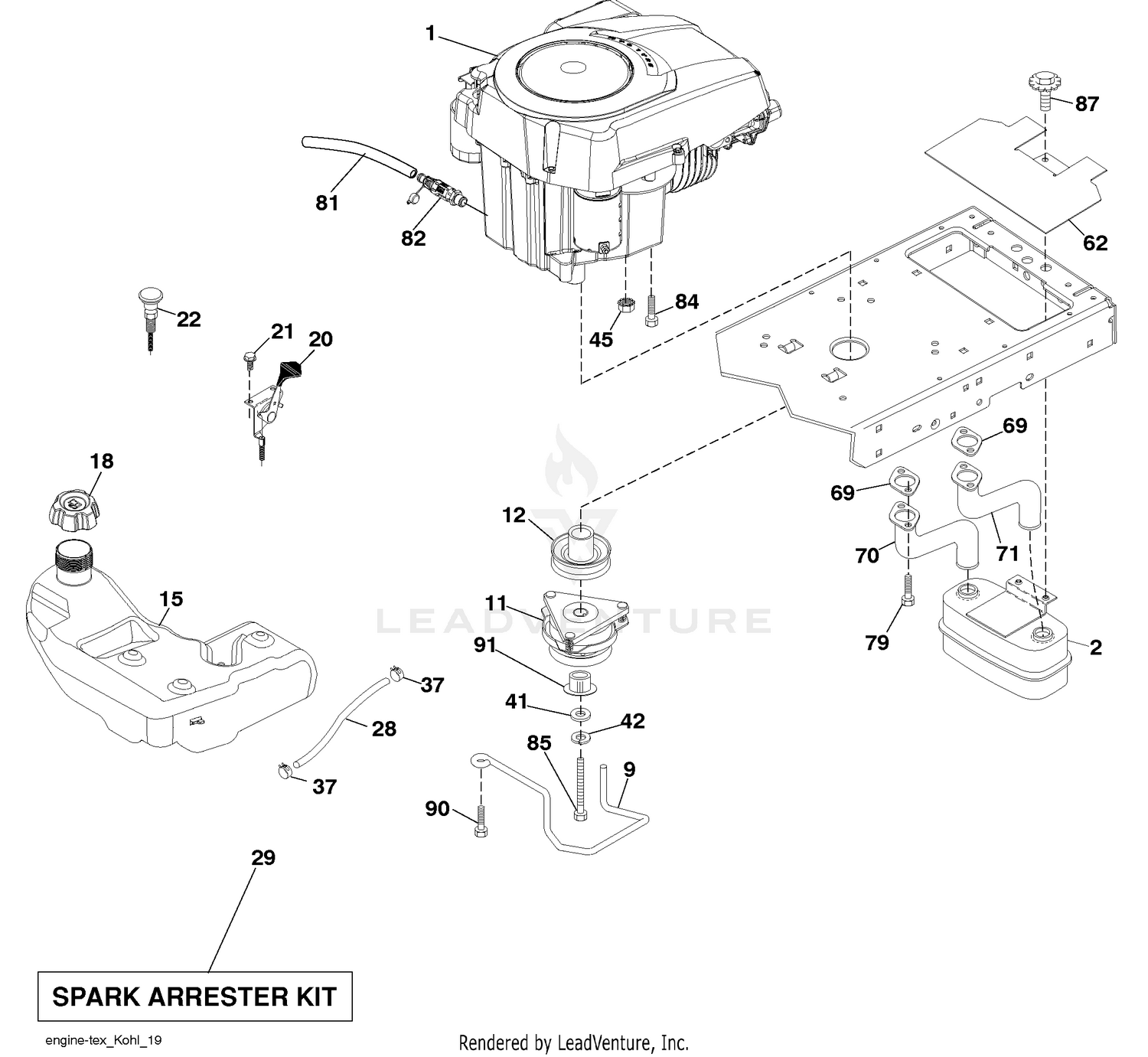

| Ref | Part Number | Description |
|---|
| 1 |
93-5609 |
TUBE ASM Price: $738.84 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
93-5607 |
DISCONTINUED Price: Call Us |
| 4 |
95-5699 |
CYLINDER-HYD This part replaces 93-5608. Price: $817.30 |
| 7 |
93-5610 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
95-5699 |
CYLINDER-HYD This part replaces 93-5611. Price: $817.30 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 13 |
93-5612 |
LOCK RING - INTERNAL Price: $28.97 |
| 14 |
93-5613 |
SPACER Price: $8.73 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 15 |
93-5614 |
LOCK RING - EXTERNAL Price: $20.36 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
