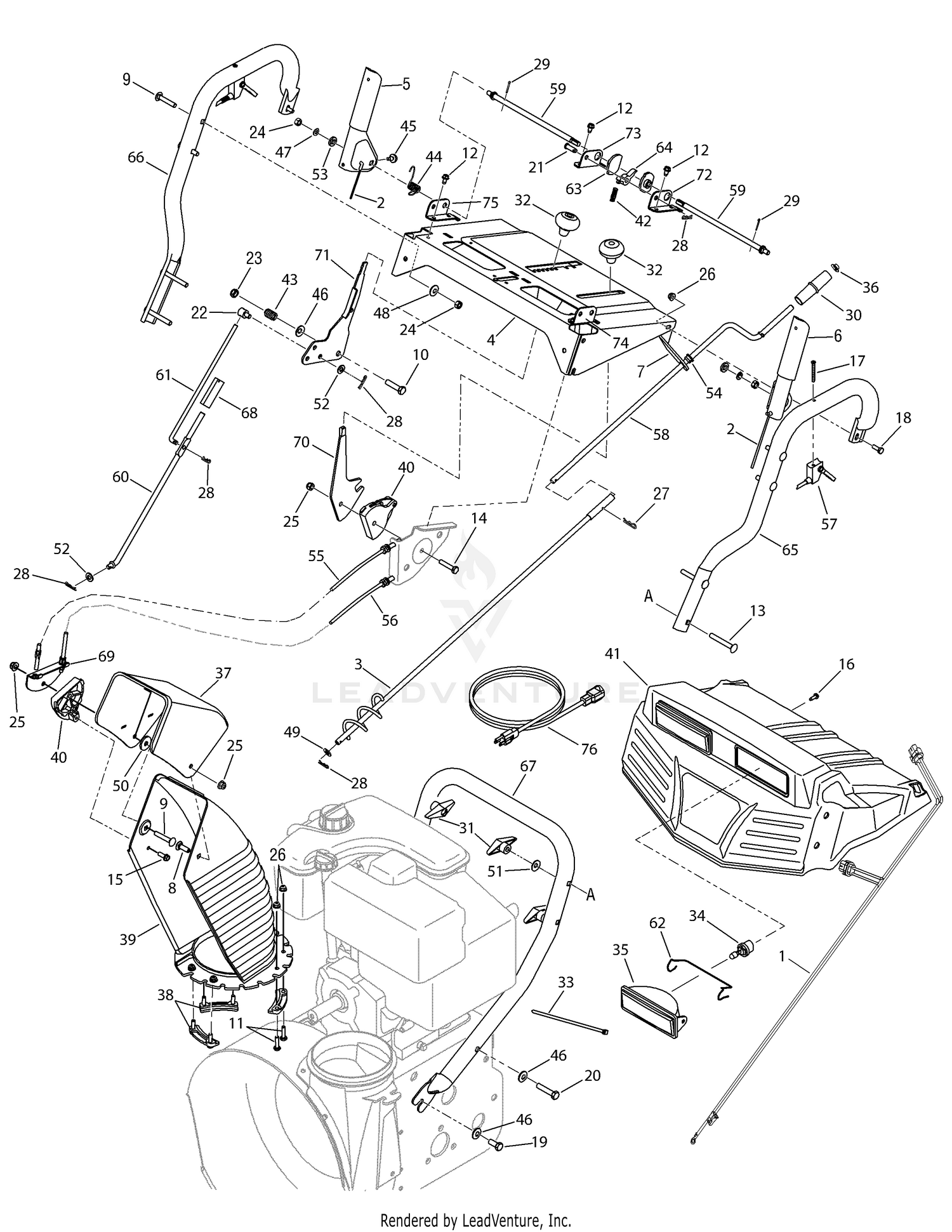

| Ref | Part Number | Description |
|---|
| 1 |
629-04010A |
DUAL HARNESS Not Available Price: |
| 2 |
646-0012 |
Cable Ass’y, Auger/Drive Price: $32.48 |
| 3 |
684-0053B-0637 |
CHUTE CRANK ASSEMBLY(POWDER BLACK) Not Available This part replaces 684-0053B. Price: |
| 4 |
684-0102A |
HANDLE PANEL ASSEMBLY Not Available Price: |
| 5 |
705-5218 |
CLUTCH HANDLE(RH) Not Available Price: |
| 6 |
705-5219 |
CLUTCH HANDLE(LH) Not Available Price: |
| 7 |
705-5266-0637 |
Chute Crank Bracket This part replaces 705-5266. Price: $13.37 |
| 8 |
710-0276 |
Screw, Carr, 5/16-18 x 1.0 Price: $3.68 |
| 9 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 10 |
710-0459A |
Screw, Hex, 3/8-24 x 1.5 Price: $6.50 |
| 11 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 12 |
710-0599 |
Screw, Hex, 1/4-20 x .5 Price: $3.86 |
| 13 |
710-0572 |
Screw, Carr., 5/16-18 x 2.5 Price: $3.75 |
| 14 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 15 |
710-0895 |
Screw, Hx,1/4-15 x .75 Price: $5.82 |
| 16 |
710-04669 |
Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 17 |
710-1625 |
Screw, #10-24 x 1.75 Price: $6.01 |
| 18 |
710-3015 |
Screw, Hex, 1/4-20 x .75 Price: $3.65 |
| 19 |
710-3118 |
Screw, Hex Lock, 3/8-16 x 1.0 Gr5 Price: $4.77 |
| 20 |
710-04682 |
SCREW 3/8-16 x 2.00 GR5 Not Available Price: |
| 21 |
711-0653 |
Pin, Clevis, .312 x 1.0 Price: $3.37 |
| 22 |
911-0677 |
Ferrule This part replaces 711-0677. Price: $15.59 |
| 23 |
712-0116 |
Nut, Insert, 3/8-24 Price: $3.95 |
| 24 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 712-3068. Price: $5.99 |
| 25 |
712-04063 |
Nut, Flnge Lk, 5/16-18 Price: $3.56 |
| 26 |
712-04064 |
Nut, Hex Flange, 1/4-20 Price: $3.64 |
| 27 |
714-0101 |
Pin, Internal Cotter Price: $4.13 |
| 28 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 29 |
714-0507 |
Pin, Cotter, 3/32 x .75 Price: $3.93 |
| 30 |
720-0201A |
Knob, Crank Price: $9.62 |
| 31 |
720-0294A |
FOAM GRIP - 9" This part replaces 720-0294. Price: $6.41 |
| 32 |
720-04039 |
Knob, Shift Price: $9.09 |
| 33 |
725-0157 |
Tie, Cable Price: $3.46 |
| 34 |
925-1658 |
Lamp This part replaces 725-1658. Price: $52.74 |
| 35 |
925-1672 |
Light Assembly This part replaces 725-1672. Price: $78.41 |
| 36 |
726-0100 |
Cap, Push, 3/8 Price: $3.75 |
| 37 |
731-0846C |
Chute, Upper, 6.0 Price: $45.74 |
| 38 |
731-0851A |
Flange Keeper, Chute Price: $3.90 |
| 39 |
731-0903E |
Lower Chute This part replaces 731-0903D. Price: $37.79 |
| 40 |
731-1313C |
Cbl. Guide, Chute Tilt Price: $10.46 |
| 41 |
731-04069 |
HANDLE PANEL STYLE 7 Not Available Price: |
| 42 |
732-0145 |
Spring, Compression Price: $3.74 |
| 43 |
732-0193 |
Spring, Compression Price: $4.11 |
| 44 |
732-0746 |
Spring, Torsion Price: $4.06 |
| 45 |
735-0199A |
Bumper, Rubber Price: $6.89 |
| 46 |
736-0105 |
Washer, Bell, .375 x .87 x .063 Price: $3.96 |
| 47 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 48 |
736-0159 |
Washer, Flat, .349 x .879 x .063 Price: $3.71 |
| 49 |
736-0185 |
Washer,Fl., .375 x .738 x .063 Price: $3.43 |
| 50 |
736-0231 |
Washer, Fl, .344 x 1.125 x .12 Price: $4.02 |
| 51 |
736-0242 |
Washer, Bell, .34 x .872 x .06 Price: $3.75 |
| 52 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 53 |
736-0509 |
Washer, Fl, .35 Sq x .72 x .134 Not Available Price: |
| 54 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 55 |
946-0902 |
Chute Control Cable 66" This part replaces 746-0902. Price: $43.36 |
| 56 |
946-0903 |
Chute Control Cable w/clip This part replaces 746-0903. Price: $46.91 |
| 57 |
746-0950A |
Cable Assembly, Trigger Price: $19.58 |
| 58 |
747-0624-0637 |
Upper Chute Crank Rod This part replaces 747-0624. Price: $21.14 |
| 59 |
747-0877 |
Rod, Cam Price: $19.94 |
| 60 |
747-0983A |
Rod, Lower Shift Price: $39.81 |
| 61 |
747-0997 |
Rod, Upper Shift Price: $61.20 |
| 62 |
747-1136 |
Retainer, Headlight Price: $10.32 |
| 63 |
748-0362 |
Cam, Handle Lock Not Available Price: |
| 64 |
948-0363 |
Handle Lock Pawl This part replaces 748-0363. Price: $14.41 |
| 65 |
749-0989A-0637 |
UPPER HANDLE (LH) (POWDER BLACK) Not Available This part replaces 749-0989A. Price: |
| 66 |
749-0990A |
Handle, Upper RH Not Available Price: |
| 67 |
749-0991 |
LOWER HANDLE Not Available Price: |
| 68 |
950-0963 |
Shift Rod Connector This part replaces 750-0963. Price: $30.48 |
| 69 |
784-5594 |
Bracket, Cable Price: $9.44 |
| 70 |
784-5604A-0637 |
Chute Tilt Handle This part replaces 784-5604A. Price: $22.34 |
| 71 |
784-5619B-0637 |
Shift Handle This part replaces 784-5619B. Price: $24.91 |
| 72 |
784-5679-0637 |
HANDLE BRACKET (LH) Not Available This part replaces 784-5679. Price: |
| 73 |
784-5680-0637 |
Handle Support Bracket - RH This part replaces 784-5680. Price: $10.88 |
| 74 |
784-5681 |
Brkt., Handle Support - LH Price: $7.91 |
| 75 |
784-5682-0637 |
Handle Support Bracket - RH This part replaces 784-5682. Price: $24.80 |
