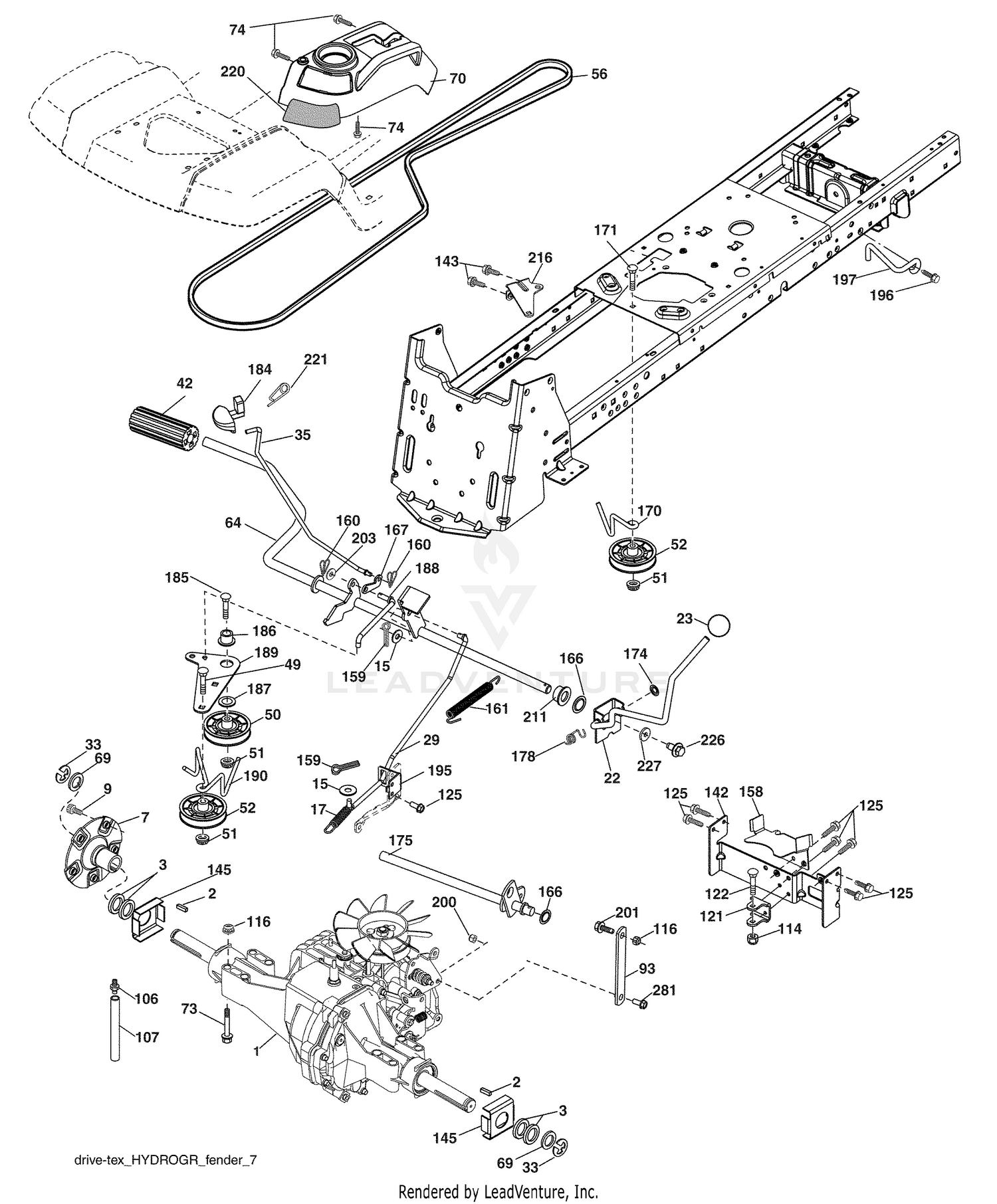

Drive

Drive

Parts (68)

RefPart NumberDescription
1 76-5180 WASHER-COPPER Price: $2.91
2 532007070 KEY 1/4 X 2.5 Price: $4.99
2 76-5190 FITTING-ADJUSTABLE Price: $34.34
3 532007563 WASHER T Price: $6.99
3 76-5300 DISCONTINUED Price: Call Us
5 76-5220 ELEMENT-FILTER Price: $10.58
7 531149201 SERVICE KIT HUB.ASM HUB.ASM.WH This part replaces 532199837. Price: $39.99
9 596218701 Bolts This part replaces 532140080. Price: $2.99
15 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
17 532197296 SPRING.BRAKE.HG3000/3500 Price: $5.99
22 532400504 SHIFTER.ASM.GT.TEX.2006 Price: $27.99
23 532140845 KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99
29 532197269 ROD.BRAKE.HG3000/3500 Price: $22.99
33 812000053 E RING HYT Price: $3.99
35 583864502 Rods This part replaces 532199591. Price: $6.99
42 510089501 PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99
49 596136201 Bolts This part replaces 872110614. Price: $3.99
50 532194327 IDLER.FLAT.910.OFFSET Price: $17.99
51 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99
52 532194326 IDLER.V-GROOVE.910.OFFSET Price: $19.99
56 532165813 BELT.V.GROUND.DRIVE Price: $49.99
64 532196200 SHAFT.ASM.PEDAL.BRAKE. Price: $49.99
69 532123800 WASHER Price: $3.99
70 532439660 SUBASM.CONSOLE.HUSQ.GT.HYDRO This part replaces 532400298. Price: $79.99
73 874490548 BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99
74 596134101 Screws This part replaces 532142432. Price: $2.99
93 532196213 LINK.TRANSAXLE.HG3000/3500 Price: $3.99
106 532142578 VENT CAP 70109 This part replaces 532142917. Price: $37.99
107 532410481 TUBE VENT Price: $2.99
114 596040501 Hardware This part replaces 873800500. Price: $2.99
116 596135701 GSPW Nuts This part replaces 873900500. Price: $2.99
121 532175611 BRACKET STRAP TORQUE Price: $6.99
122 872010520 BOLT.5/16-18X2.5 Price: $4.99
125 532428867 BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99
142 532404483 STRAP.TORQUE.HG3000/K46 Price: $17.99
143 596030701 Screws This part replaces 817490508. Price: $2.99
145 532163168 WASHER.AXLE.FLANGE.HG-3000 Price: $7.99
158 532194351 KEEPER BELT Price: $6.99
159 596029501 Pins This part replaces 876020412. Price: $2.99
160 596029401 GSPW Retainers This part replaces 532169484. Price: $3.99
161 532105709 SPRING, RETURN LT Price: $9.99
166 532429164 NUT.PUSH.625 This part replaces 532197290. Price: $4.99
167 531152901 SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99
170 532194322 KEEPER.V-IDLER.CENTER. Price: $5.99
171 596136301 Bolts This part replaces 872110616. Price: $2.99
174 532197289 NUT.PUSH.500.2006 Price: $2.99
175 532196204 SHAFT ASM SHIFT Price: $14.99
178 532197456 SPRING.SHIFT.GT2006 Price: $4.99
184 532196439 HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99
185 596435101 Bolts This part replaces 872110620. Price: $2.99
186 532194321 SPACER.RETAINER Price: $7.99
187 596135501 Washers This part replaces 819133210. Price: $4.99
188 582217001 LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99
189 531169001 SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99
190 532194318 KEEPER.BELLCRANK.DRIVE Price: $5.99
195 532405113 RETAINER.ROD.BRAKE.HG3000.TEX Price: $19.99
196 817000616 SCREW 3/8-16X1 Price: $5.99
197 532199769 BRKT.ANIT-ROTATION.CLUTCH Price: $6.99
200 873930500 NUT.CENTERLOCK.5/16- Price: $3.99
201 596231101 BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99
203 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99
211 532196212 BUSHING.SHAFT.BRAKE.HAND Price: $5.99
216 532196131 BRACKET.PULLEY.IDLER.W/TEX Price: $6.99
220 532198908 REFLECTOR.RH.TEX GT Price: $14.99
221 532403187 RETAINER.SPRING.CLIP.H Price: $3.99
226 596238601 Bolts This part replaces 874780716. Price: $2.99
227 596135201 Washers This part replaces 532405296. Price: $2.99
281 532411554 Shoulder Bolt Price: Call Us
