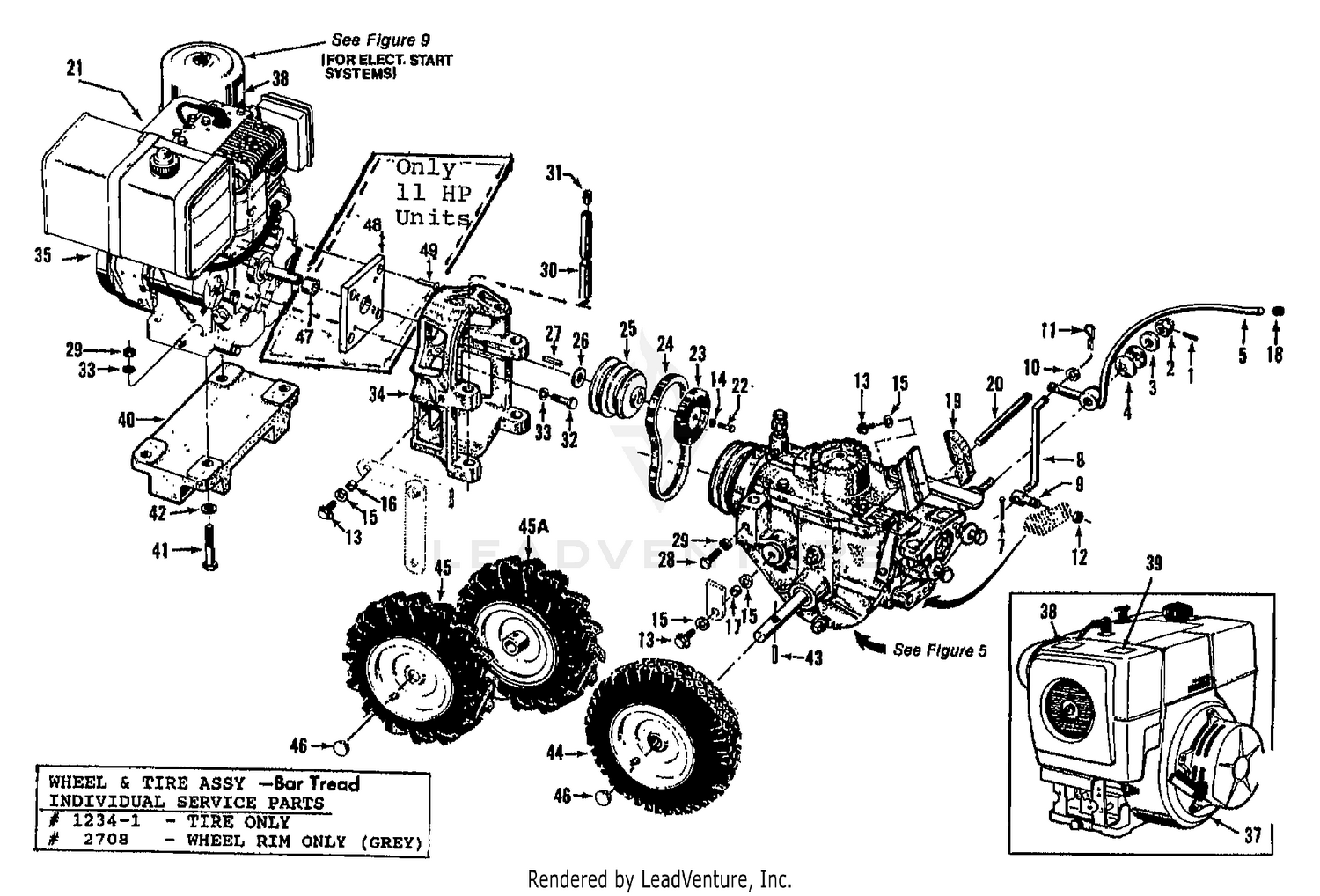

| Ref | Part Number | Description |
|---|
| 1 |
GW-9362 |
PIN-SPRING .125 X 1 Price: $3.82 |
| 2 |
GW-9838 |
HEX NUT 1/2-20 Not Available Price: |
| 3 |
GW-9934 |
WASHER-# SHOULDER ZP Price: $13.73 |
| 4 |
GW-9932 |
WASHER-# 1.97X1X.118 Price: $21.54 |
| 5 |
GW-2628 |
LVR-W/KNOB (WHEEL SPEED) Price: $124.90 |
| 7 |
GW-9317 |
PIN-COTTER .094X1.0 Price: $3.22 |
| 8 |
GW-1231 |
ROD-CONNECTING Price: $14.83 |
| 9 |
GW-1033 |
SWIVEL Price: $13.56 |
| 10 |
736-0567 |
NYLON FLAT WASHER Not Available This part replaces GW-9902. Price: |
| 11 |
714-04048 |
PIN - hair cotter This part replaces GW-9338. Price: $7.04 |
| 12 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces GW-9808. Price: $2.83 |
| 13 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces GW-90046. Price: $4.05 |
| 14 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces GW-9913. Price: $3.33 |
| 15 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces GW-9904. Price: $3.90 |
| 16 |
GW-2146 |
BUSHING-.5X.375X.325 Not Available Price: |
| 17 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53 |
| 18 |
GW-9120 |
RING-TOLERANCE .5325 ID Price: $5.94 |
| 19 |
GW-1920 |
KIT-ADJ BLOCK 4 SP Price: $53.19 |
| 20 |
GW-2100 |
BAR-ADJUST Price: $11.28 |
| 21 |
GW-20821 |
DECAL-STARTING STABIL Not Available Price: |
| 22 |
710-0459A |
BOLT - hex. hd., 3/8"-24 x 1-1/2", engine pulley This part replaces GW-9715. Price: $6.50 |
| 22 |
710-0539 |
Screw, 3/8-24 x 1.75 This part replaces GW-9738. Price: $3.95 |
| 23 |
756-04171 |
DISC ONLY-reverse, rubber rimmed This part replaces GW-2111. Price: $58.85 |
| 23 |
GW-1919 |
KIT-ADJ BLOCK/REV DISC Price: $92.08 |
| 24 |
GW-9245 |
BELT-V Price: $21.83 |
| 25 |
619-04124 |
PULLEY- engine P.T.O. (Power Take Off) This part replaces GW-1483. Price: $135.20 |
| 25 |
GW-2357 |
ENGINE PULLEY Not Available Price: |
| 26 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces GW-1138-1. Price: $4.36 |
| 26 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces GW-1138-2. Price: $5.94 |
| 27 |
GW-9303 |
KEY-.188 SQ X 2.33 Price: $3.22 |
| 27 |
GW-9326 |
SQUARE KEY .25 x 1.25 Not Available Price: |
| 28 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces GW-9751. Price: $3.66 |
| 29 |
712-3010 |
HEX NUT 5/16-18 This part replaces GW-9801. Price: $3.89 |
| 30 |
GW-1034A |
BAR- engine mounting This part replaces GW-1034. Price: $41.06 |
| 31 |
GW-9147 |
PLUG-CAP (RED) Price: $7.05 |
| 32 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces GW-9572. Price: $3.85 |
| 33 |
936-0119 |
LOCK WASHER 5/16 This part replaces GW-9912. Price: $4.29 |
| 34 |
719-04222-0637 |
Motor Mount This part replaces GW-2565. Price: $274.62 |
| 37 |
N/A |
UNKNOWN |
| 38 |
GW-2591 |
DECAL-HOT SURFACE Price: Call Us |
| 39 |
GW-2573 |
DECAL-STABIL STARTING Not Available Price: |
| 40 |
GW-2522 |
WEIGHT-ENG ECONO P Not Available Price: |
| 41 |
710-0395 |
Screw-Hex 5/16-18 This part replaces GW-9966. Price: $4.08 |
| 42 |
GW-20553 |
SPACER .88X.385X.0 Not Available Price: |
| 43 |
GW-9322099 |
PIN -roll (spirol, 5/16" x 1-1/2" long, wheel hub to shaft This part replaces GW-9322. Price: $6.86 |
| 44 |
GW-9142 |
STD TIRE A Not Available Price: |
| 46 |
1902020 |
HUB CAP Not Available This part replaces GW-9145. Price: |
| 47 |
GW-2660 |
ENGINE PULLEY SPACER Not Available Price: |
| 48 |
GW-2677 |
PLATE-ADAPTER 11HP PNT Price: Call Us |
