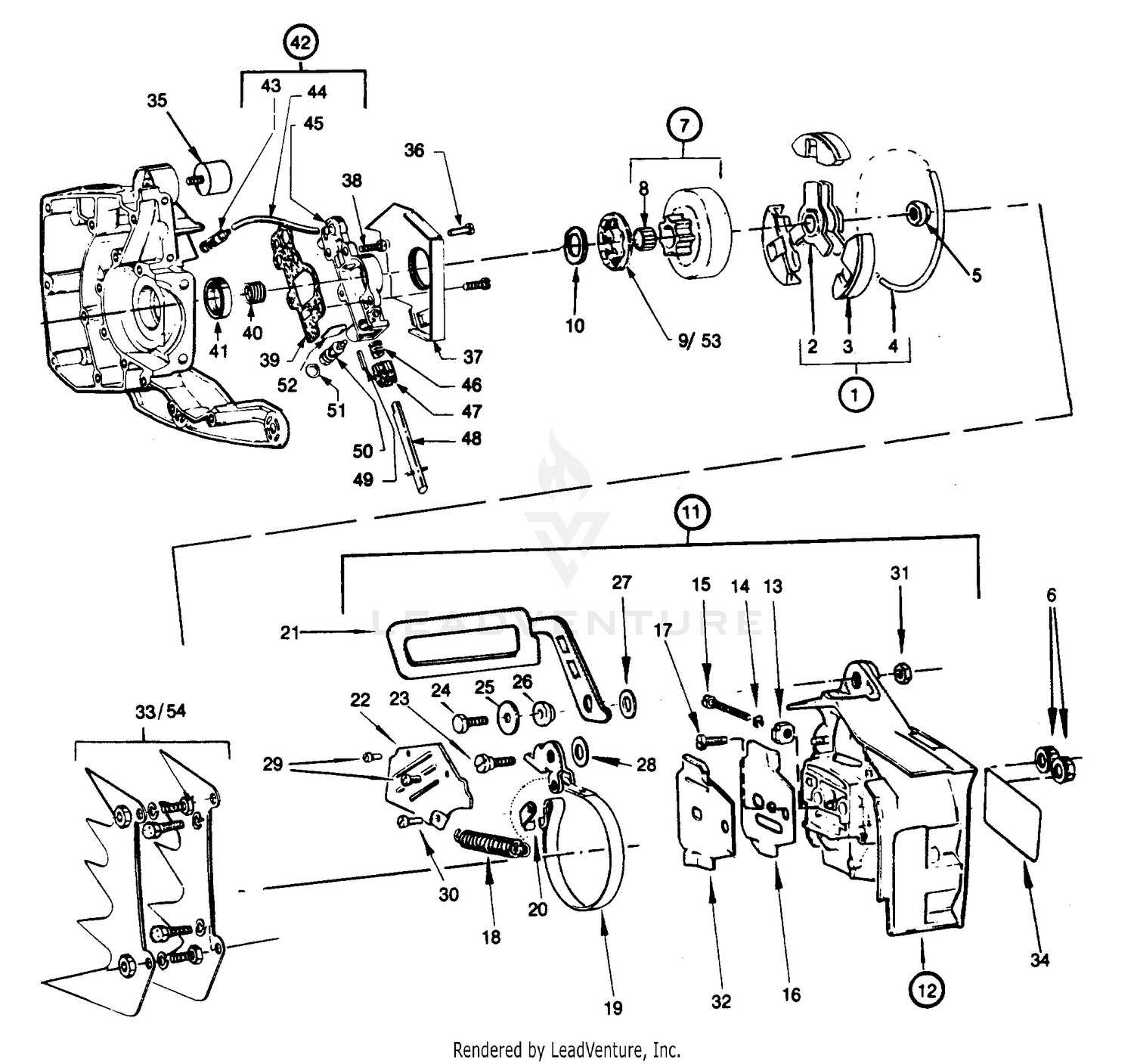

CLUTCH
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3234-11 | SCREW-HHF Price: $1.23 |
| 1 | 507475976 | Clutch Assy Price: $59.99 |
| 2 | 2410-30 | CAP-PLASTIC Price: $0.83 |
| 2 | 507433133 | Clutch Driver Price: $17.99 |
| 3 | 237-68 | O-RING Price: $3.22 |
| 3 | 507433102 | Clutch Shoe (Wide) Price: $7.99 |
| 4 | 120-5118 | SHAFT-ADJUSTER Price: $44.64 |
| 4 | 507431200 | Clutch Spring Price: $2.99 |
| 5 | 106-5344 | BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 | 507430800 | Nut Price: $1.99 |
| 6 | 114-9396 | CAPSCREW-HH Price: $2.22 |
| 6 | 507433036 | Strut Nut Price: $1.99 |
| 7 | 507475081 | Clutch Drum & Bearing Price: $3.33 |
| 7 | 99-2097 | DETENT Price: $12.71 |
| 8 | 120-5116 | WASHER-WAVE Price: $9.17 |
| 8 | 507430743 | Bearing Price: $17.99 |
| 9 | 108-0015 | WASHER-FLAT Price: $0.39 |
| 10 | 137-6130 | SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 | 507430848 | Thrust Washer Price: $1.99 |
| 11 | 119-4155 | WASHER-HARDENED Price: $4.16 |
| 11 | 5074764121 | Brake Assy Complete Price: Call Us |
| 12 | 120-5120 | SPRING-COMPRESSION Price: $2.89 |
| 12 | 5074762761 | Clutch Cover & Tensioner Price: Call Us |
| 13 | 119-4039 | NUT-HEX, NI Price: $0.28 |
| 13 | 507425672 | Pin Price: $3.99 |
| 14 | 507431636 | Retaining Ring Price: $0.24 |
| 15 | 105-8095-01 | BEDBAR-FAIRWAY Price: $303.06 |
| 15 | 507432613 | Screw - Chain Tension Price: $2.99 |
| 16 | 119-4151 | SCREW-BEDKNIFE Price: $0.41 |
| 16 | 507433109 | Guide Plate (Outer) Price: $6.99 |
| 17 | 137-6094 | BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 | 507429266 | Terminal Screw Price: $1.99 |
| 18 | 507433185 | Spring Chain Brake (White) Price: $14.99 |
| 19 | 507476284 | Cam/Band Assy Price: $16.24 |
| 20 | 507431038 | Locking Plate Price: $1.99 |
| 21 | 50747648618 | Kickback Guard Assy Price: Call Us |
| 21 | 61-1950 | WASHER-PLASTIC Price: $0.55 |
| 22 | 507476583 | Cover Assy Price: $2.99 |
| 22 | 56-9520 | BUSHING-FLANGED Price: $2.15 |
| 23 | 507431036 | Shoulder Bolt Price: $4.99 |
| 23 | 69-8980 | WASHER Price: $0.58 |
| 24 | 106-9623 | BOLT-BEDBAR Price: $18.27 |
| 24 | 507431716 | Screw 1/4 - 20 X 1 Price: $1.99 |
| 25 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 25 | 507430930 | Washer - Lever Price: $2.99 |
| 26 | 323-12 | SCREW-HH Price: $1.14 |
| 26 | 507433529 | Bushing Price: $4.99 |
| 27 | 108-9090-01 | WEIGHT-END Price: $100.71 |
| 27 | 507433532 | Washer Price: $1.99 |
| 28 | 107-2954 | NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 | 507430878 | Washer Price: $1.99 |
| 29 | 507431675 | Screw 10 - 24 X 2 Price: $0.99 |
| 29 | 93-2489 | BEARING Price: $24.37 |
| 30 | 107-4028 | SEAL-GREASE Price: $21.51 |
| 30 | 507431673 | Screw 10 - 24 X 3/8 Price: $0.99 |
| 31 | 507431698 | Nut Price: $3.33 |
| 32 | 137-8417 | REEL+,5IN FWY(22)11 BLD This part replaces 117-3793. Price: $749.48 |
| 32 | 507432686 | Inner Guide Plate Price: $2.99 |
| 33 | 507476072 | Pivot Grip Kit (2/Kit) Price: $1.60 |
| 34 | 507433712 | Side Decal - Poulan Pro Price: $3.33 |
| 35 | 507430197 | Shock Absorber Price: $4.99 |
| 36 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 36 | 507431642 | Screw 10 - 24 X 1 Price: $1.99 |
| 37 | 507431317 | Dirt Shield Price: $4.99 |
| 38 | 507431669 | Screw 10 - 24 X 3/4 Price: $1.99 |
| 39 | 507430228 | Gasket - Oil Pump Price: $1.48 |
| 40 | 507430231 | Wire Worm Price: $3.99 |
| 41 | 507428746 | Seal Price: $3.99 |
| 42 | 507476536 | Oil Pump Assy Complete Price: $3.33 |
| 43 | 507474959 | Oil Pickup Assy Price: $2.24 |
| 44 | 507430640 | Inlet tube Price: $0.68 |
| 45 | 507476534 | Oil Pump Body Price: $37.99 |
| 46 | 507431221 | Plunger Spring Price: $5.12 |
| 47 | 507430880 | Gear - Oil Pump Price: $0.72 |
| 48 | 507474932 | Plunger Assy Price: $0.28 |
| 49 | 507431699 | Roll Pin Price: $1.99 |
| 50 | 507433242 | Adj. Screw Price: $3.33 |
| 51 | 507431359 | O-Ring Price: $1.99 |
| 52 | 507430229 | Seal - Oil Pump Price: $0.99 |
| 53 | 507429957 | Rim (404 - 7T) Price: $8.99 |
