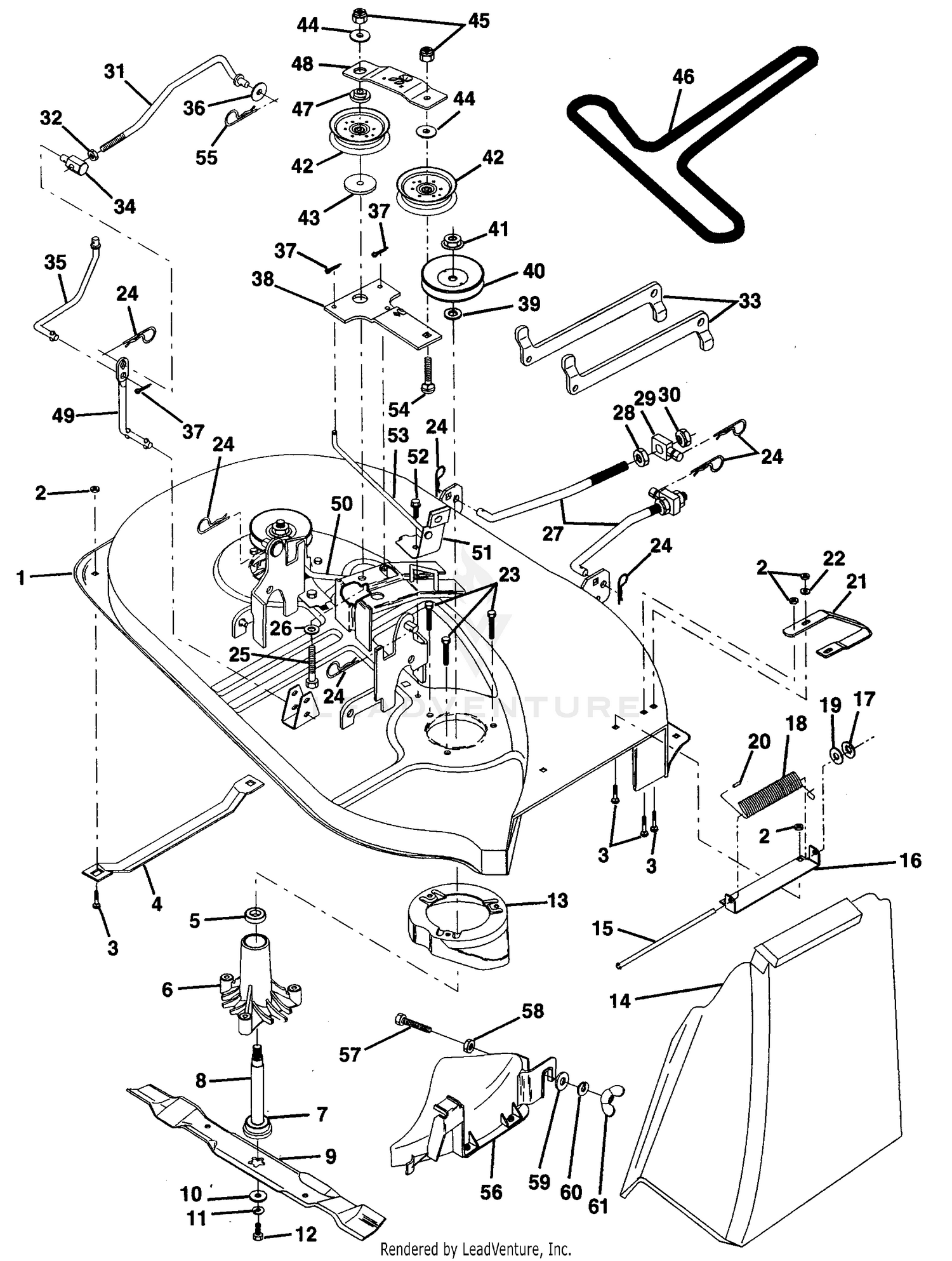

| Ref | Part Number | Description |
|---|
| 1 |
3-8089 |
DISCONTINUED Price: Call Us |
| 1 |
532132564 |
Mower Deck Assembly (AYP part number) Price: Call Us |
| 2 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 3 |
3-8069 |
DISCONTINUED Price: Call Us |
| 3 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 4 |
3-5217 |
BEDKNIFE Price: $120.72 |
| 4 |
532007631 |
Runner, Mower LH (AYP part number) This part replaces 532125074. Price: $11.99 |
| 5 |
5-1921 |
DISCONTINUED Price: Call Us |
| 5 |
532110485 |
Bearing (AYP part number) Price: $7.99 |
| 6 |
532128774 |
Housing, Mandrel Price: $22.99 |
| 7 |
532129895 |
Bearing (AYP part number) Price: $6.99 |
| 8 |
532137646 |
KIT MANDREL W/NUT This part replaces 532133172. Price: $17.99 |
| 9 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 9 |
532134148 |
Blade, Mulching Price: $14.99 |
| 10 |
5-1902 |
DISCONTINUED Price: Call Us |
| 10 |
532140296 |
WASHER.BLADE This part replaces 532129962. Price: $2.99 |
| 11 |
119-4162 |
SCREW-CARR This part replaces 3231-3. Price: $1.73 |
| 11 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 12 |
5-1850 |
DISCONTINUED Price: Call Us |
| 12 |
532850857 |
Bolt 3/8-24 x 1-1/4 Grade 8 (AYP part number) Price: $1.99 |
| 13 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 13 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK This part replaces 532128961. Price: $3.99 |
| 14 |
3-8109 |
DISCONTINUED Price: Call Us |
| 14 |
532106736 |
Shield, Deflector (AYP part number) Price: $27.99 |
| 15 |
5-1903 |
DISCONTINUED Price: Call Us |
| 15 |
532106735 |
Rod, Hinge (AYP part number) Price: $4.99 |
| 16 |
532137607 |
Bracket Assembly, Deflector (AYP part number) This part replaces 532105896. Price: $3.99 |
| 17 |
5-1751 |
DISCONTINUED Price: Call Us |
| 17 |
532110452 |
Pushnut (AYP part number) Price: $1.99 |
| 18 |
5-1926 |
DISCONTINUED Price: Call Us |
| 18 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 19 |
3-6615 |
SPECIAL SCREW Price: $11.08 |
| 19 |
819111016 |
Washer 11/32 x 5/8 x 16 Gauge (AYP part number) Price: $5.99 |
| 20 |
3-6465 |
UPPER KNIFEBAR WASHER Price: $20.41 |
| 20 |
532105304 |
Cap, Sleeve (AYP part number) Price: $2.99 |
| 21 |
3-6464 |
DISCONTINUED Price: $2.00 |
| 21 |
532128772 |
Runner, RH (AYP part number) Price: $5.99 |
| 22 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 22 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 23 |
3217-7 |
NUT-HEX Price: $0.28 |
| 23 |
817580520 |
Screw Thdrol. 5/16-18 x 1.25 (AYP part number) This part replaces 532078158. Price: $2.99 |
| 24 |
3220-7 |
NUT-JAM Price: $4.09 |
| 24 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 25 |
3220-6 |
NUT-JAM Price: $1.25 |
| 25 |
874760636 |
BOLT This part replaces 874600636. Price: $2.99 |
| 26 |
5-1920 |
DISCONTINUED Price: Call Us |
| 26 |
819131612 |
Washer 13/32 x 1 x 12 Gauge (AYP part number) Price: $3.99 |
| 27 |
5-1915 |
DISCONTINUED Price: Call Us |
| 27 |
532132256 |
Link Assembly, Front (AYP part number) Price: $7.99 |
| 28 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 28 |
873350800 |
Nut, Hex, Jam 1/2-13 UNC (AYP part number) Price: $1.99 |
| 29 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 29 |
532175689 |
TRUNNION This part replaces 532130171. Price: $2.99 |
| 30 |
3210-3 |
SCREW-HH Price: $5.29 |
| 30 |
539101331 |
NUT 1/2-13 HEX NYLOC ZD This part replaces 873800800. Price: $1.99 |
| 31 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 31 |
532132553 |
Rod, Clutch, Primary (AYP part number) Price: $37.99 |
| 32 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 32 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 33 |
5-1922 |
DISCONTINUED Price: Call Us |
| 33 |
532132559 |
Arm, Suspension, Rear (AYP part number) Price: $4.99 |
| 34 |
3-8189 |
DISCONTINUED Price: Call Us |
| 34 |
532133604 |
Trunnion 3/8-16 (AYP part number) Price: $17.99 |
| 35 |
5-1917 |
DISCONTINUED Price: Call Us |
| 35 |
532132554 |
Rod, Clutch, Secondary (AYP part number) Price: $11.99 |
| 36 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 36 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge (AYP part number) Price: $2.99 |
| 37 |
5-1798 |
DISCONTINUED Price: Call Us |
| 37 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 38 |
3-4614 |
DISCONTINUED Price: Call Us |
| 38 |
532133840 |
Idler Arm (AYP part number) Price: $4.99 |
| 39 |
3-4616 |
DISCONTINUED Price: Call Us |
| 39 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 40 |
253-103 |
DISCONTINUED Price: Call Us |
| 40 |
532129206 |
Pulley, Mandrel (AYP part number) Price: $14.99 |
| 41 |
251-8 |
BEARING-BALL Price: $30.06 |
| 41 |
532139729 |
KIT.NUT.FLANGE This part replaces 873050900. Price: $4.99 |
| 42 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 43 |
34615 |
Spacer, Outer Price: Call Us |
| 43 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 44 |
5-1846 |
DISCONTINUED Price: Call Us |
| 44 |
819131612 |
Washer 13/32 x 1 x 12 Gauge (AYP part number) Price: $3.99 |
| 45 |
5-1918 |
DISCONTINUED Price: Call Us |
| 45 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 46 |
5-1928 |
DISCONTINUED Price: Call Us |
| 46 |
532144200 |
V-Belt Mower 42" This part replaces 532131290. Price: $32.99 |
| 47 |
11-3610 |
DISCONTINUED Price: Call Us |
| 47 |
532133502 |
Spacer, Idler Arm (AYP part number) Price: $2.99 |
| 48 |
32104 |
Capscrew Price: Call Us |
| 48 |
532133503 |
Stiffener, Idler Arm (AYP part number) Price: $3.99 |
| 49 |
5-1931 |
DISCONTINUED Price: Call Us |
| 49 |
532133551 |
Rod, Pivot (AYP part number) Price: $4.99 |
| 50 |
5-1930 |
DISCONTINUED Price: Call Us |
| 50 |
532131289 |
Rod, Brake, LH (AYP part number) Price: $11.99 |
| 51 |
3210-9 |
SCREW-HH Price: $0.61 |
| 51 |
532130840 |
Brake Assembly (AYP part number) Price: $8.99 |
| 52 |
5-1925 |
DISCONTINUED Price: Call Us |
| 52 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 53 |
5-1924 |
DISCONTINUED Price: Call Us |
| 53 |
532131288 |
Rod, Brake, RH (AYP part number) Price: $5.99 |
| 54 |
5-1905 |
DISCONTINUED Price: Call Us |
| 54 |
872110614 |
Bolt, Carriage 3/8-16 x 1-3/4 Grade 5 (AYP part number) Price: $3.99 |
| 55 |
5-1906 |
DISCONTINUED Price: Call Us |
| 55 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 56 |
5-1848 |
DISCONTINUED Price: Call Us |
| 56 |
532132803 |
Cover, Mulcher (AYP part number) Price: $49.99 |
| 57 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 57 |
874930620 |
Bolt, Hex 3/8-16 x 1-1/4 (AYP part number) Price: $3.99 |
| 58 |
3210-1 |
SCREW-HH Price: $6.29 |
| 58 |
873750600 |
Locknut 3/8-16 (AYP part number) Price: $1.99 |
| 59 |
5-1938 |
DISCONTINUED Price: Call Us |
| 59 |
819132016 |
Washer 13/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $5.99 |
| 60 |
3210-5 |
SCREW-HH Price: $0.54 |
| 60 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 61 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 61 |
532135651 |
Wing Nut (AYP part number) Price: $3.99 |
| 62 |
3219-2 |
NUT-HEX Price: $0.37 |
| 63 |
2830-8 |
DISCONTINUED Price: Call Us |
| 64 |
11-3590 |
DISCONTINUED Price: Call Us |
| 65 |
329-2 |
SCREW-HH Price: $3.68 |
| 66 |
5-1923 |
DISCONTINUED Price: Call Us |
| 67 |
5-1901 |
DISCONTINUED Price: Call Us |
