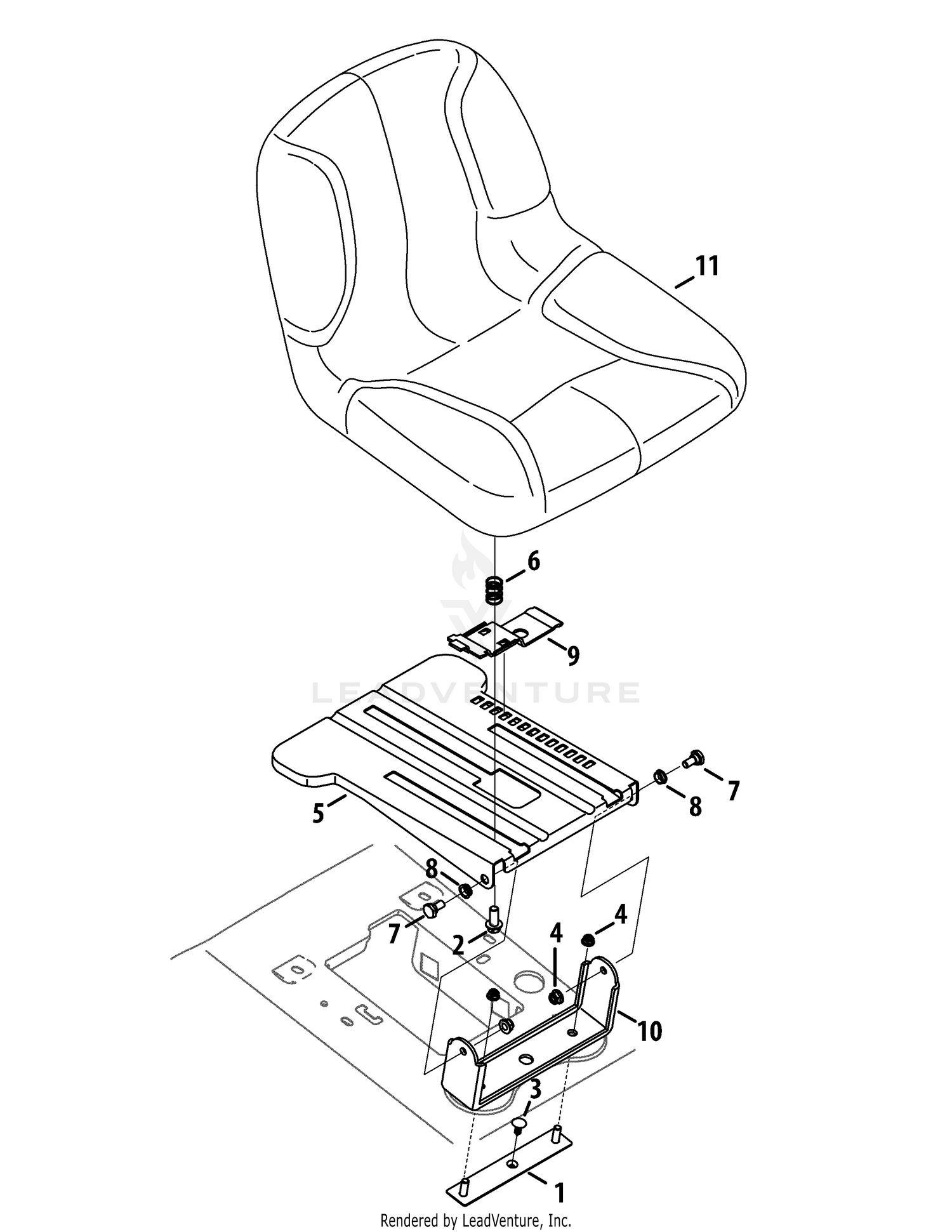

| Ref | Part Number | Description |
|---|
| 1 |
983-05111A |
Seat Pivot Plate Assembly Price: $12.90 |
| 2 |
710-04482 |
Hex Flange Screw, 3/8/16, .875, Gr5 Price: $4.08 |
| 3 |
726-3046 |
Ratchet Clip Price: $3.71 |
| 4 |
712-04063 |
Nut, Flange Lock, 5/16-18, Grf Price: $3.56 |
| 5 |
783-08452-0637 |
SEAT MOUNTING PLATE Not Available Price: |
| 6 |
732-04563 |
Compression Spring, .68 x 1.065 x .055 Price: $4.74 |
| 7 |
738-0140 |
Shoulder Screw, .435 x .178, 5/16 x .56 This part replaces 938-0140. Price: $4.93 |
| 8 |
741-05128 |
Flange Bearing, .4385 ID Price: $3.08 |
| 9 |
783-06050 |
Seat Lever Price: $8.85 |
| 10 |
783-08563-0637 |
Pivot Bracket, Tall Price: $19.15 |
