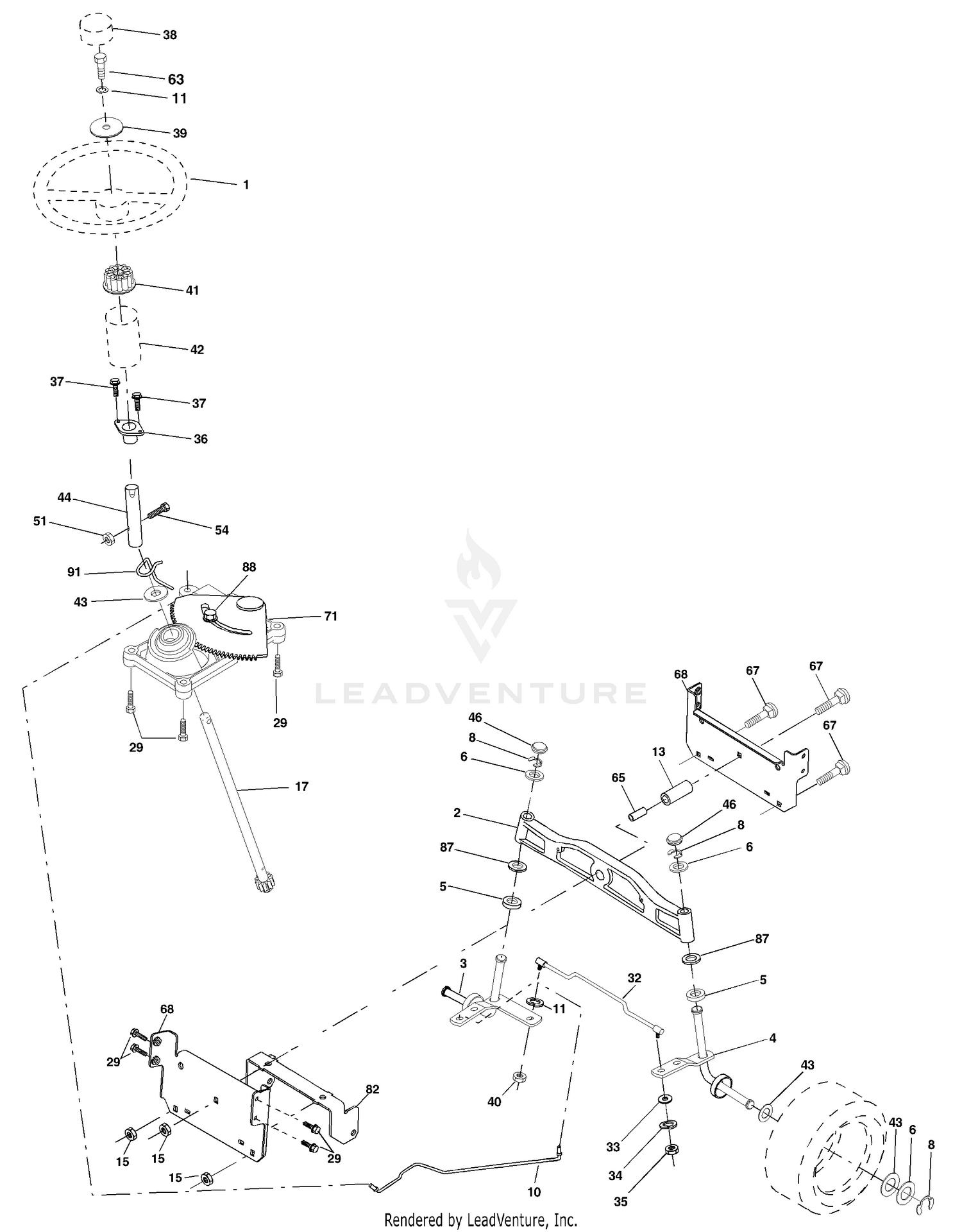

| Ref | Part Number | Description |
|---|
| 1 |
180656X428 |
Wheel Steering Price: Call Us |
| 2 |
172393 |
Axle Asm Cast Iron LT Price: Call Us |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 10 |
108-6571 |
CRANKCASE ASM Price: $1,485.35 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 13 |
136518 |
Spacer Brg. Axle Front Price: Call Us |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 17 |
177876 |
Shaft Asm. Steering Price: Call Us |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 29 |
17060612 |
Screw 3/8-16x.75 Price: Call Us |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 34 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 35 |
73540500 |
Crownlock Nut 5/16-24 Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
180657X428 |
Insert Cap Strg Wh Au Price: Call Us |
| 39 |
19133812 |
Washer Price: Call Us |
| 40 |
7810H |
Lock nut Price: Call Us |
| 40 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 41 |
100711L |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
153720 |
Extension Steering Shaft LR/LT Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 51 |
73800500 |
Nut Lock Hex w/Ins 5/16-18 Price: Call Us |
| 54 |
74780520 |
Bolt Fin Hex 5/16-18 Unc x 1-1/4 Price: Call Us |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 63 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us |
| 65 |
160367 |
Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 80 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 82 |
169835 |
Bracket Susp. Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .14 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Unc Price: Call Us |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 100 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 120 |
105-3795 |
PIN-STRAIGHT Price: $0.99 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
98-7507 |
PLUG Price: $2.64 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 220 |
99-3447 |
PLUG Price: $3.11 |
| 230 |
106-7056 |
GASKET Price: $1.48 |
