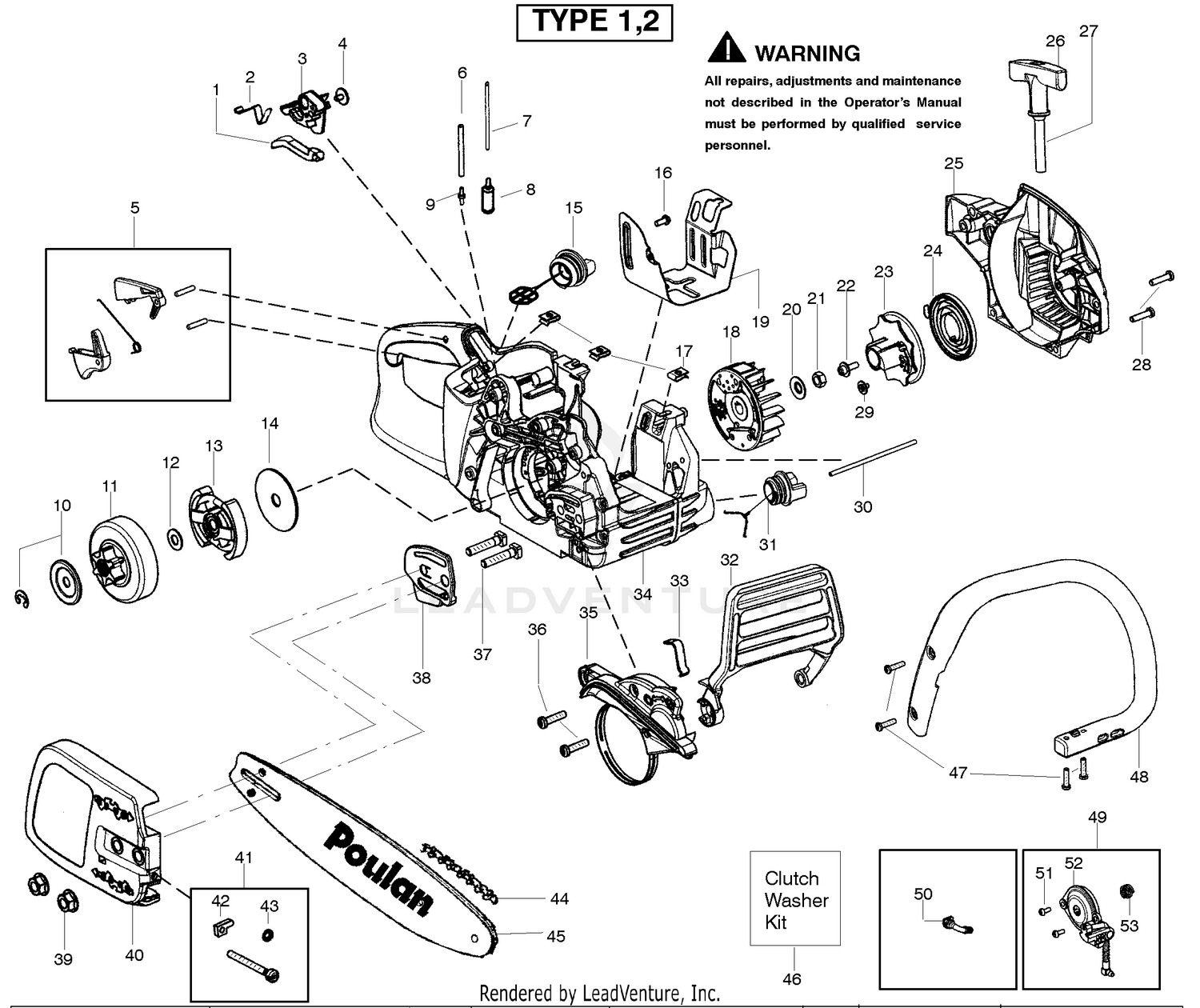

| Ref | Part Number | Description |
|---|
| 1 |
530057893 |
Knob-Choke Price: $3.99 |
| 2 |
530057908 |
Spring-Ign. Switch Price: $2.99 |
| 3 |
530057891 |
Lever-Ign. Switch Price: $4.99 |
| 4 |
530016080 |
Screw Price: $1.99 |
| 5 |
530071888 |
Kit-Trigger/Lockout Price: $6.99 |
| 6 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 7 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 8 |
530095646 |
Assy-Fuel Pick Up Price: $2.99 |
| 9 |
530023877 |
Fitting-Fuel line Price: $1.99 |
| 10 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 11 |
530057905 |
Assy-Clutch Drum 3/8" Price: $14.99 |
| 12 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 13 |
530057907 |
Assy-Clutch Price: $6.99 |
| 14 |
530016419 |
Washer-Large Clutch Price: $1.99 |
| 15 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 16 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 17 |
530015922 |
Nut-"U" type speed Price: $1.99 |
| 18 |
530071905 |
KIT This part replaces 530057937. Price: $37.99 |
| 19 |
530057911 |
Shield-Heat Price: $2.99 |
| 20 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 21 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 22 |
530015920 |
Screw Price: $1.99 |
| 23 |
530057890 |
Pulley-Starter Price: $5.99 |
| 24 |
545008013 |
Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 25 |
579372001 |
FAN HOUSING This part replaces 530058810. Price: $9.99 |
| 26 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 27 |
530069232 |
Kit-Rope Price: $3.99 |
| 28 |
530016432 |
Screw Price: $1.99 |
| 29 |
530016080 |
Screw Price: $1.99 |
| 30 |
530058786 |
Assy-Oil Vent Price: $2.99 |
| 31 |
530057236 |
Assy-Oil Cap w/ret. Price: $5.99 |
| 32 |
530057897 |
Handguard Price: $7.99 |
| 33 |
530016416 |
Spring-Handguard Price: $1.99 |
| 35 |
530071893 |
Kit-Chainbrake Price: $17.99 |
| 36 |
530016432 |
Screw Price: $1.99 |
| 37 |
530016133 |
Bolt-Bar Price: $1.99 |
| 38 |
530057910 |
Plate-Bar Price: $1.99 |
| 39 |
530015917 |
Nut-Bar Price: $0.99 |
| 42 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 43 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 44 |
581562101 |
ACCY CHN 14" 52DL 3/8 .050 This part replaces 952051209. Price: $17.99 |
| 45 |
952044368 |
BAR 14" .050 3/8 041 52DL Price: $14.99 |
| 47 |
530016432 |
Screw Price: $1.99 |
| 48 |
530057888 |
Handle-Front Price: $14.99 |
| 50 |
530057924 |
Assy-Oil Pick Up Price: $2.99 |
| 51 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 52 |
581071401 |
OIL PUMP ASSY SAS This part replaces 530057931. Price: $5.99 |
| 147 |
X-6-11 |
Screw-H.C. Price: Call Us |
| 148 |
X-6-22 |
Screw-H.C. Price: Call Us |
| 149 |
X-55-6 |
Screw Price: Call Us |
| 150 |
X-75-2 |
Plug Price: Call Us |
| 151 |
X-379-9 |
Seal rear oil Price: Call Us |
| 152 |
277020 |
Gasket-Gear Cover Price: Call Us |
| 153 |
277021 |
Plate-Gear Cover Price: Call Us |
| 154 |
277022 |
Gasket-Gear Cover Plate Price: Call Us |
| 155 |
277086 |
Screw-H.C. Price: Call Us |
