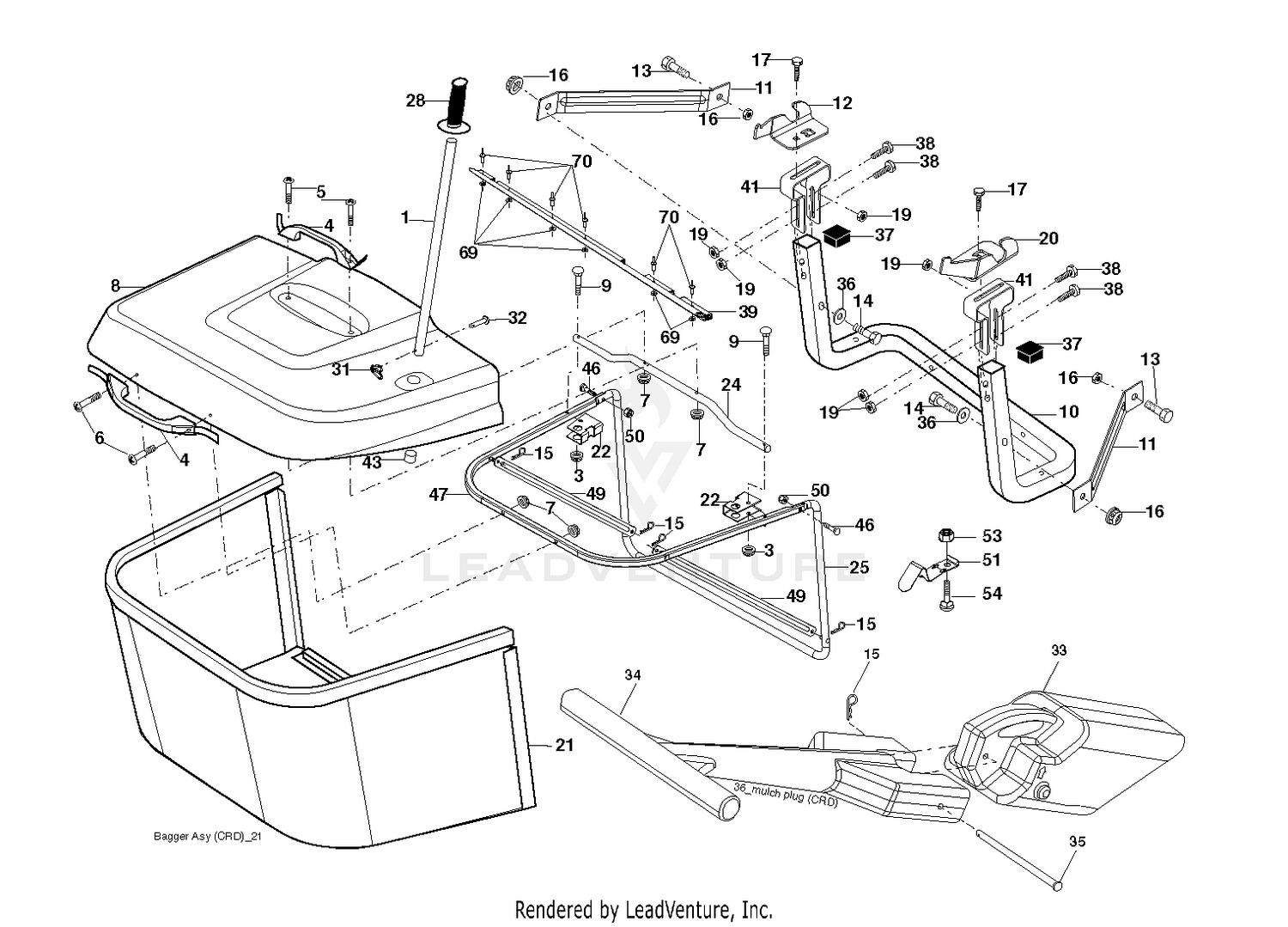

| Ref | Part Number | Description |
|---|
| 1 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 2 |
76-2430 |
BRACKET - DEBRIS Price: $10.18 |
| 3 |
283-40 |
PIN-CLEVIS Price: $2.85 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
32128-33 |
NUT-HF Price: $0.25 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
62-7250 |
VINYL SLEEVE This part replaces 61-7250. Price: $32.91 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 6 |
61-3270-03 |
SPRING-COMPRESSION This part replaces 61-3270. Price: $12.24 |
| 7 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
16-1159 |
DISCONTINUED Price: Call Us |
| 8 |
532441587 |
BAGGER.COVER.SEAL.ASM.CRD.668 Price: $121.99 |
| 9 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 9 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
874760612 |
BOLT Price: $3.99 |
| 13 |
92-1815 |
SHAFT-C.U. PIVOT Price: $59.70 |
| 14 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 15 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 18 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 19 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
283-75 |
PIN-CLEVIS Price: $1.56 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
532406180 |
BAGGER.ASM.CRD.2007 Price: $129.99 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
532428236 |
BRACKET.BAGGER.SD.ELECTRIC.CRD Price: $9.99 |
| 23 |
76-0370 |
BOLT ASSY Price: $26.50 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 24 |
83-7900 |
DISCONTINUED Price: Call Us |
| 25 |
583211601 |
TUBE.FRONT.BAGGER.CRD This part replaces 532193705. Price: $84.99 |
| 25 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 26 |
93-6912 |
DISCONTINUED Price: Call Us |
| 27 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 28 |
323-7 |
SCREW-HH Price: $0.65 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 29 |
92-1818-01 |
ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39 |
| 31 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
532428683 |
MULCHING.PLUG.107.CRD.(2 2) Price: $37.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD Price: $29.99 |
| 41 |
532432755 |
BRACKET.BAGGER.SD.ELECTRIC.CRD Price: $7.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 46 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 47 |
583211501 |
TUBE.UPPER.BAGGER.CRD This part replaces 532193704. Price: $279.99 |
| 49 |
583208201 |
BAR.SPREADER.BAGGER.CRD This part replaces 532193305. Price: $12.99 |
| 50 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 51 |
529846601 |
SERVICE KIT LATCH.SPRING.BAGGE This part replaces 532199903. Price: $1.99 |
| 53 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 54 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 69 |
575180801 |
MEGA-FIRE ELECTR This part replaces 532435611. Price: $2.99 |
| 70 |
583506001 |
RIVET.POP.125X.750 This part replaces 532435603. Price: $3.99 |
