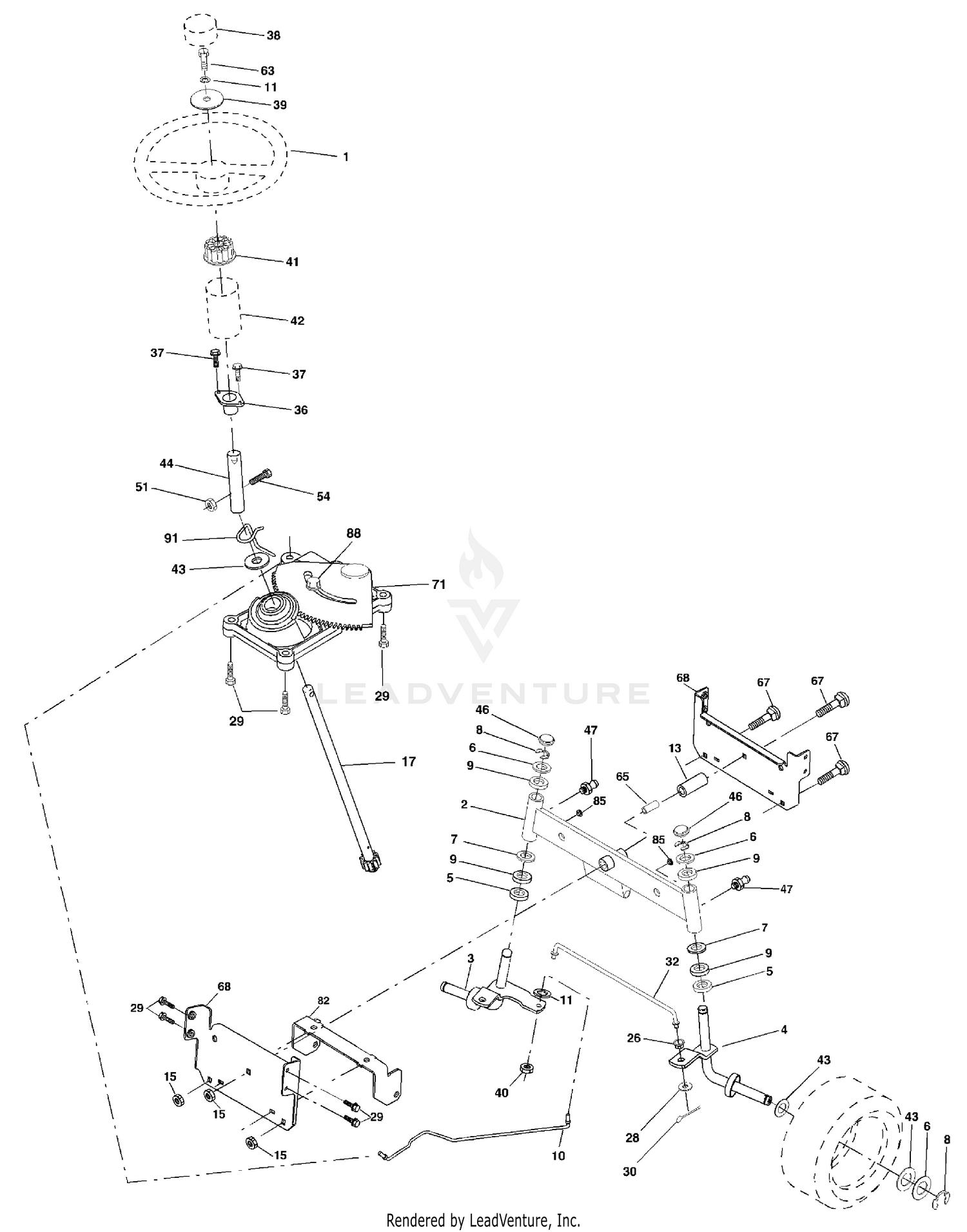

| Ref | Part Number | Description |
|---|
| 1 |
133741X428 |
Wheel Steering Ayp/P/L Blk Price: Call Us |
| 2 |
175234 |
Axle Asm Price: Call Us |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 7 |
19272016 |
Washer 27/32 X 1-1/4 X 16 Ga Price: Call Us |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
98-7531 |
HOOK-ENGINE Price: $7.56 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 13 |
136518 |
Spacer earing Axle Front Price: Call Us |
| 15 |
145212 |
Hexflange Lock Price: Call Us |
| 17 |
177876 |
Shaft Asm Strg Price: Call Us |
| 20 |
100-9195 |
BOLT Price: $0.72 |
| 26 |
126847X |
Bushing Link Drag Blk LR Price: Call Us |
| 28 |
19131416 |
Washer 13/32 X 7/8 X 16 Ga Price: Call Us |
| 29 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
108-6573 |
GASKET-HEAD, CYLINDER Price: $208.72 |
| 30 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
133742X428 |
Cap Wheel Steer Ayp Price: Call Us |
| 39 |
19133812 |
Washer 13/32 x 2-3/8 x 12 Ga. Price: Call Us |
| 40 |
115-3445 |
CYLINDER HEAD ASM This part replaces 108-6574. Price: $2,632.61 |
| 40 |
7810H |
Nut Lock Center 3/8-24un Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Dash Mtl Steering Blk Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
153720 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
6855M |
Fitting Grease Price: Call Us |
| 50 |
105-3705 |
CAP-SEALING This part replaces 98-9395. Price: $6.44 |
| 51 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 Price: Call Us |
| 54 |
74780520 |
Bolt Fin Hex 3/8-16unc x 1-1/4 Price: Call Us |
| 60 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 63 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr.5 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Fin Hex 5/8-11 unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 70 |
107-9066 |
GUIDE-VALVE, INLET Price: $12.65 |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 80 |
107-9067 |
GUIDE-VALVE, EXHAUST Price: $13.17 |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
| 90 |
98-9389 |
CAP-SEALING Price: $5.22 |
| 100 |
98-9479 |
BOLT-HEAD, CYLINDER Price: $14.42 |
| 110 |
98-9647 |
BOLT-HEAD, CYLINDER Price: $15.60 |
