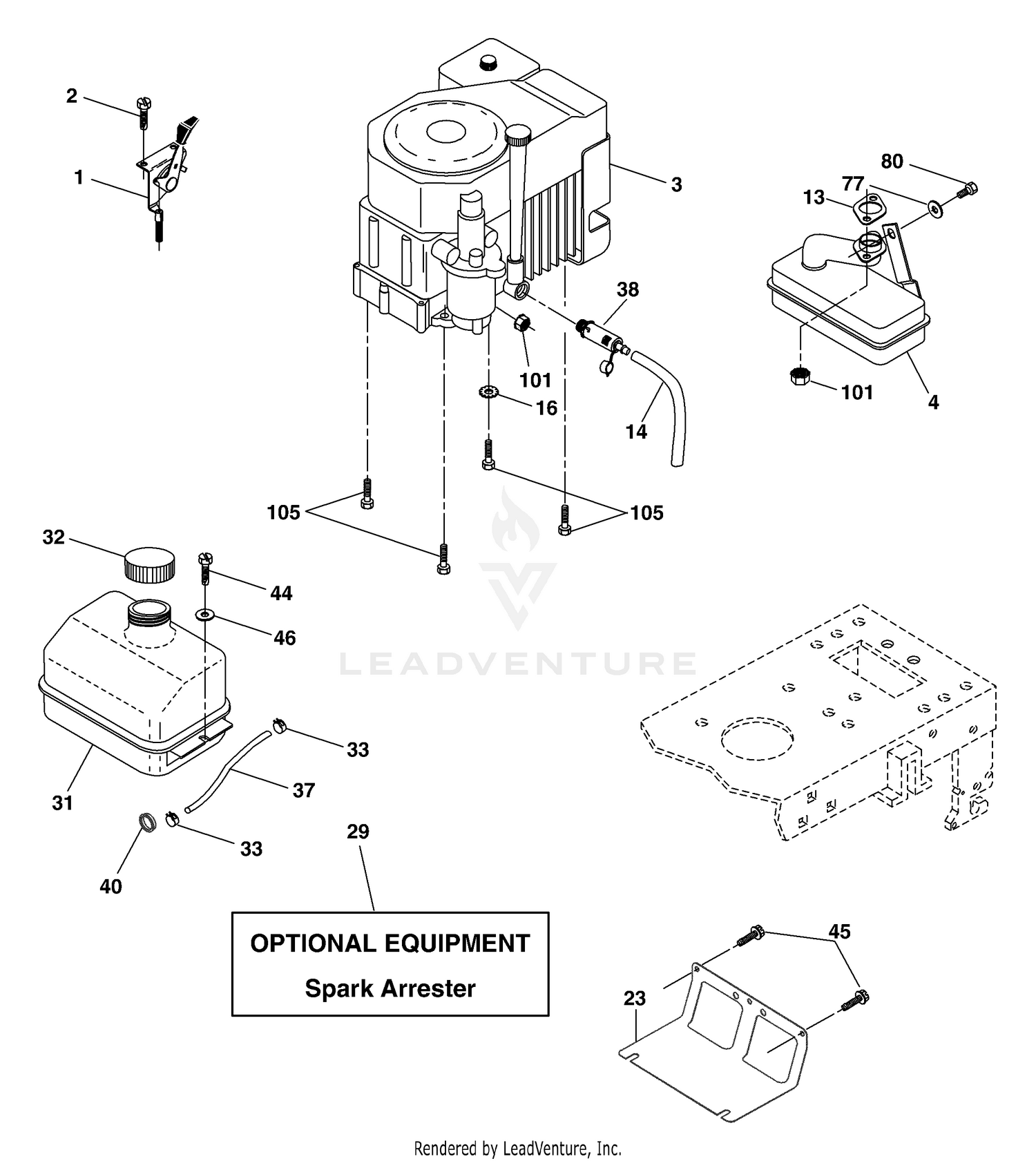

| Ref | Part Number | Description |
|---|
| 0 |
640152A |
CARBURETOR This part replaces 640140. Price: $77.00 |
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 1 |
631776A |
SHAFT & LEV Price: $12.00 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 2 |
631970 |
RET SPRING Price: $3.00 |
| 4 |
532174667 |
MUFFLER.KOHL.CV491.W/PORT Price: $119.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
640109 |
SHUTTER Price: $9.43 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 10 |
632740 |
SHAFT & LEV Price: $4.26 |
| 11 |
632043 |
SPRING Price: $1.25 |
| 12 |
631184 |
WASHER Price: $1.25 |
| 13 |
532163831 |
KOHLER GASKET Price: $3.30 |
| 13 |
631183 |
WASHER Price: $1.25 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 14 |
631753 |
SHUTTER Price: $1.25 |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
632164 |
FUEL FITTING Price: $5.95 |
| 17 |
651025 |
SCREW Price: $1.18 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 20 |
640027 |
FUEL JET Price: $2.60 |
| 20A |
640053 |
CAP Price: $0.81 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP Price: $39.99 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 36 |
640113 |
NOZZLE Price: $4.95 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 37 |
632547 |
O RING Price: $1.49 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 40 |
640114 |
NUT Price: $5.16 |
| 44 |
27110A |
GASKET Price: $1.45 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 80 |
874760508 |
Bolt Hex Hd 5/16-18unc x 1/2 Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
