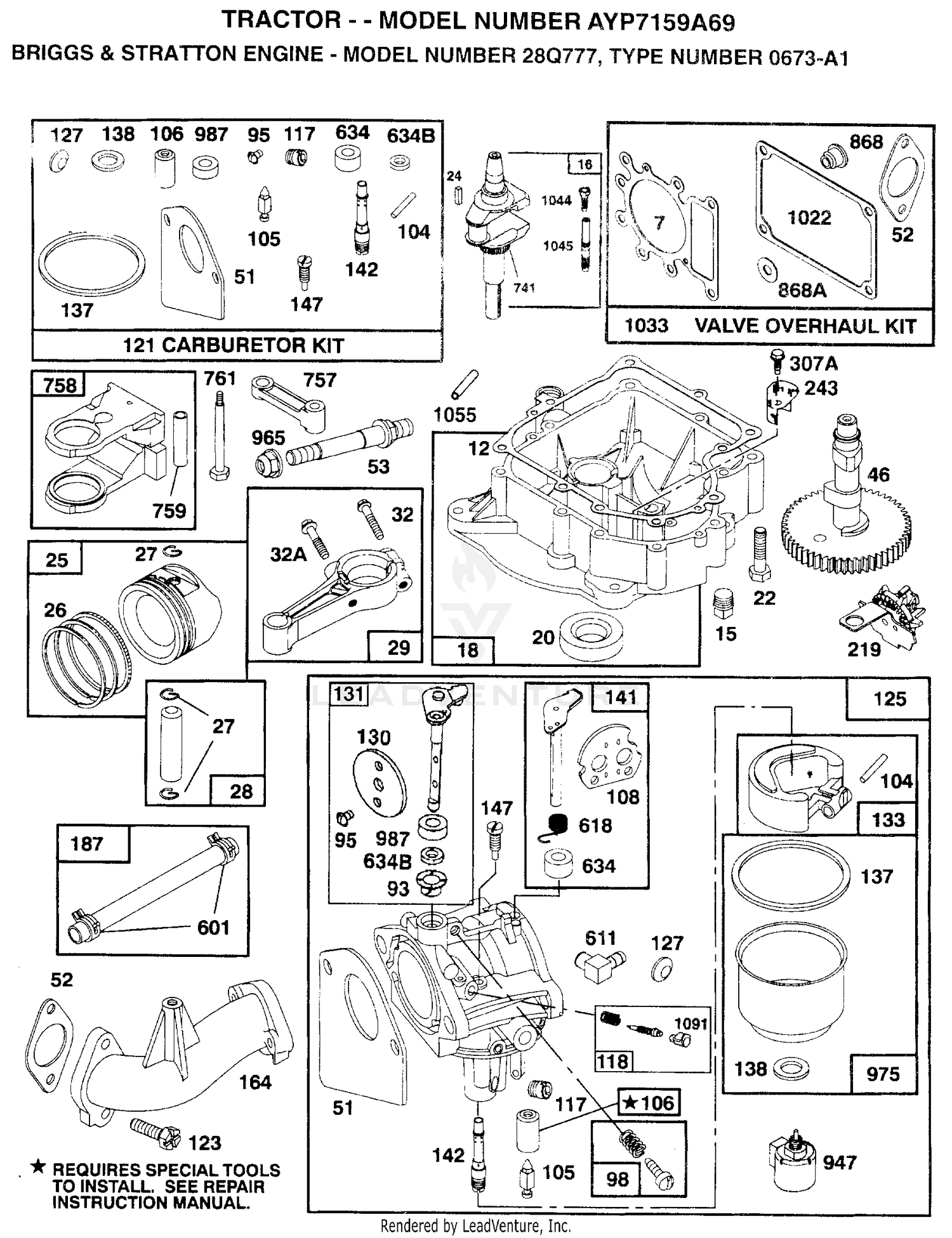

| Ref | Part Number | Description |
|---|
| 1 |
496412 |
CYLINDER ASSY Price: Call Us |
| 1 |
98-9772 |
HEAD-FILTER Price: $235.82 |
| 2 |
399265 |
P/N CONFLICT - CHECK WITH SUPPLIER Price: Call Us |
| 2 |
98-9764 |
ELEMENT Price: $39.02 |
| 3 |
391086 |
SEAL, OIL Price: Call Us |
| 3 |
98-9774 |
O-RING Price: $20.04 |
| 4 |
98-9775 |
BASE-FILTER Price: $115.28 |
| 5 |
495858 |
HEAD, CYLINDER Price: Call Us |
| 5 |
98-9773 |
PLUG-BASE, FILTER Price: $34.25 |
| 6 |
237-42 |
O-RING Price: $2.78 |
| 7 |
237-78 |
O-RING Price: $3.85 |
| 7 |
272614 |
GASKET, CYLINDER HEAD Price: Call Us |
| 8 |
495735 |
BREATHER ASSY Price: Call Us |
| 8 |
98-9776 |
PLUG-HEAD, FILTER Price: $23.26 |
| 9 |
27803 |
GASKET, VALVE COVER Price: Call Us |
| 9 |
98-9777 |
DRAIN VALVE ASM Price: $74.38 |
| 10 |
94621 |
SCREW, STEMS Price: Call Us |
| 11 |
281246 |
TUBE, BREATHER Price: Call Us |
| 12 |
271916 |
GASKET, CRANKCASE COVER 1/64" Price: Call Us |
| 13 |
94728 |
SCREW, CYLINDER HEAD Price: Call Us |
| 15 |
94239 |
PLUG, OIL DRAIN Price: Call Us |
| 16 |
495162 |
CRANKSHAFT Price: Call Us |
| 18 |
496742 |
BASE ENGINE Price: Call Us |
| 20 |
291675 |
SEAL, OIL Price: Call Us |
| 22 |
94624 |
SCREW, SEMS, BASE MOUNTING Price: Call Us |
| 23 |
492326 |
FLYWHEEL & RING GEAR ASSY, MAGNETO Price: Call Us |
| 24 |
222698 |
KEY, FLYWHEEL Price: Call Us |
| 25 |
495860 |
PISTON ASSY, STANDARD SIZE Price: Call Us |
| 26 |
495854 |
RING SET, PISTON, STANDARD SIZE Price: Call Us |
| 27 |
260924 |
LOCK, PISTON PIN Price: Call Us |
| 28 |
299691 |
PIN ASSEMBLY, PISTON, STANDARD Price: Call Us |
| 29 |
494504 |
ROD ASSY, CONNECTING Price: Call Us |
| 32 |
94695 |
SCREW Price: Call Us |
| 32A |
94648 |
SCREW Price: Call Us |
| 33 |
495856 |
VALVE, EXHAUST Price: Call Us |
| 34 |
495857 |
VALVE, INTAKE Price: Call Us |
| 35 |
262811 |
SPRING, VALVE Price: Call Us |
| 37 |
224502 |
GUARD, FLYWHEEL Price: Call Us |
| 40 |
224641 |
RETAINER, VALVE SPRING Price: Call Us |
| 45 |
262411 |
TAPPET, VALVE Price: Call Us |
| 46 |
496651 |
GEAR, CAM Price: Call Us |
| 51 |
272465 |
GASKET, CARBURETOR (CARBURETOR TO ELBOW) Price: Call Us |
| 52 |
272569 |
GASKET, CARBURETOR Price: Call Us |
| 53 |
94637 |
STUD, CARBURETOR MOUNTING Price: Call Us |
| 75 |
224061 |
WASHER, SPRING Price: Call Us |
| 78 |
94821 |
SCREW, SEMS Price: Call Us |
| 95 |
94098 |
SCREW, THROTTLE Price: Call Us |
| 98 |
495932 |
VALVE, NEEDLE Price: Call Us |
| 104 |
231789 |
PIN, FLOAT HINGE Price: Call Us |
| 105 |
231855 |
VALVE ASSY, INLET NEEDLE Price: Call Us |
| 106 |
231854 |
INLET VALVE SEAT Price: Call Us |
| 108 |
224540 |
VALVE, CHOKE Price: Call Us |
| 116A |
281402 |
O-RING Price: Call Us |
| 117 |
231858 |
JET, NEEDLE VALVE Price: Call Us |
| 118 |
495800 |
SCREW, IDLE SPEED Price: Call Us |
| 121 |
497535 |
CARBURETOR OVERHAUL KIT Price: Call Us |
| 123 |
94616 |
SCREW, ELBOW MOUNTING Price: Call Us |
| 125 |
495935 |
CARBURETOR ASSEMBLY Price: Call Us |
| 130 |
224539 |
VALVE, THROTTLE Price: Call Us |
| 131 |
494379 |
SHAFT & LEVER, THROTTLE Price: Call Us |
| 133 |
494381 |
FLOAT, CARBURETOR Price: Call Us |
| 137 |
281165 |
GASKET, FLOAT BOWL Price: Call Us |
| 138 |
281164 |
WASHER, FLOAT BOWL SCREW Price: Call Us |
| 141 |
495931 |
SHAFT & LEVER, CHOKE Price: Call Us |
| 142 |
231859 |
NOZZLE, CARBURETOR Price: Call Us |
| 147 |
497472 |
PILOT, JET Price: Call Us |
| 164 |
214047 |
ELBOW, CARBURETOR Price: Call Us |
| 166 |
94555 |
STUD, ROCKER ARM Price: Call Us |
| 171 |
281051 |
P/N CONFLICT - CHECK WITH SUPPLIER Price: Call Us |
| 187 |
393815 |
HOSE (CUT TO SUIT) Price: Call Us |
| 188 |
93535 |
SCREW, HEX HEAD Price: Call Us |
| 192 |
492160 |
SCREW ASSY, ROCKER ARM Price: Call Us |
| 201 |
262767 |
LINK, GOVERNOR Price: Call Us |
| 209 |
260695 |
SPRING, GOVERNOR Price: Call Us |
| 216 |
262766 |
LINK, CHOKE Price: Call Us |
| 219 |
490815 |
GOVERNOR GEAR Price: Call Us |
| 222 |
495611 |
PLATE, GOVERNOR CONTROL Price: Call Us |
| 224 |
94729 |
SCREW, SEMS, HEX HEAD Price: Call Us |
| 225 |
231058 |
CRANK, GOVERNOR Price: Call Us |
| 227 |
493935 |
LEVER ASSY, GOVERNOR Price: Call Us |
| 230 |
94742 |
WASHER, GOVERNOR CRANK, 1/4" I.D. Price: Call Us |
| 232 |
262785 |
SPRING, GOVERNOR LINK Price: Call Us |
| 238 |
262836 |
CAP, VALVE Price: Call Us |
| 240 |
394358 |
FILTER, FUEL Price: Call Us |
| 243 |
225019 |
SCREEN, OIL PUMP Price: Call Us |
| 265 |
221535 |
CLAMP Price: Call Us |
| 284 |
94704 |
SCREW, AIR CLEANER Price: Call Us |
| 284A |
94073 |
SCREW, HEX HEAD Price: Call Us |
| 294 |
810068 |
SCREW, SET Price: Call Us |
| 304 |
225015 |
HOUSING, BLOWER, OUTER, RED Price: Call Us |
| 304A |
225017 |
HOUSING, BLOWER, INNER, BLACK Price: Call Us |
| 305 |
94682 |
SCREW Price: Call Us |
| 305A |
94786 |
SCREW Price: Call Us |
| 305B |
94822 |
SCREW, SEMS Price: Call Us |
| 306 |
225020 |
SHIELD, CYLINDER Price: Call Us |
| 307 |
94623 |
SCREW, SEMS, CYLINDER SHIELD MTG. Price: Call Us |
| 307A |
93758 |
SCREW, SEMS Price: Call Us |
| 309 |
497595 |
MOTOR, STARTING, 12 VOLT Price: Call Us |
| 310 |
497602 |
BOLT, THRU Price: Call Us |
| 311 |
497608 |
BRUSH SET Price: Call Us |
| 324 |
494439 |
SCREEN, ROTATING Price: Call Us |
| 333 |
495859 |
ARMATURE, MAGNETO Price: Call Us |
| 334 |
93381 |
SCREW, SEM, ARMATURE MOUNTING Price: Call Us |
| 337 |
491055 |
PLUG, SPARK Price: Call Us |
| 346 |
93705 |
SUB= 69485 Price: Call Us |
| 356 |
496070 |
WIRE ASSEMBLY Price: Call Us |
| 358 |
495993 |
GASKET SET Price: Call Us |
| 363 |
19203 |
PULLER, FLYWHEEL Price: Call Us |
| 383 |
89838 |
WRENCH SPARK PLUG Price: Call Us |
| 423 |
94073 |
SCREW, HEX HEAD Price: Call Us |
| 445 |
493909 |
CARTRIDGE, AIR CLEANER Price: Call Us |
| 467 |
493903 |
KNOB, AIR CLEANER Price: Call Us |
| 474 |
393474 |
STATOR, ALTERNATOR, DUAL CIRCUIT Price: Call Us |
| 482 |
93621 |
SCREW, SEMS Price: Call Us |
| 510 |
497606 |
DRIVE, STARTER Price: Call Us |
| 521 |
272699 |
SLEEVE, IGNITION CABLE Price: Call Us |
| 523 |
495230 |
CAP AND DIPSTICK, OIL FILLER Price: Call Us |
| 524 |
496113 |
TUBE, OIL FILLER Price: Call Us |
| 525 |
496113 |
TUBE, OIL FILLER Price: Call Us |
| 535 |
272403 |
ELEMENT, AIR CLEANER Price: Call Us |
| 537 |
281106 |
O-RING, AIR CLEANER Price: Call Us |
| 544 |
497603 |
ARMATURE, STARTER Price: Call Us |
| 552 |
231597 |
BUSHING, GOVERNOR CRANK, 1/4" I.D. Price: Call Us |
| 562 |
92613 |
BOLT, GOVERNOR LEVER Price: Call Us |
| 592 |
231082 |
NUT, HEX Price: Call Us |
| 601 |
93053 |
CLAMP, HOSE, GREEN Price: Call Us |
| 611 |
493496 |
ELBOW, FUEL PIPE Price: Call Us |
| 614 |
93306 |
COTTER, HAIR PIN Price: Call Us |
| 615 |
93307 |
RETAINER, E-RING Price: Call Us |
| 618 |
262803 |
SPRING, CHOKE RETURN Price: Call Us |
| 634 |
281168 |
SEAL, CHOKE SHAFT Price: Call Us |
| 634A |
491323 |
SEAL, GOVERNOR Price: Call Us |
| 634B |
281167 |
WASHER, THROTTLE SHAFT Price: Call Us |
| 635 |
280872 |
ELBOW, SPARK PLUG Price: Call Us |
| 646 |
224546 |
BRACE, AIR CLEANER Price: Call Us |
| 657 |
93496 |
SCREW, SEMS Price: Call Us |
| 663 |
94620 |
SCREW, HEX HEAD Price: Call Us |
| 668 |
805402 |
SPACER, ROTATING SCREEN Price: Call Us |
| 718 |
230192 |
PIN, DOWEL Price: Call Us |
| 726 |
392134 |
GEAR, RING Price: Call Us |
| 727 |
490324 |
COVER, STARTER Price: Call Us |
| 728 |
94773 |
SCREW, SEMS Price: Call Us |
| 729 |
225170 |
RETAINER, WIRE Price: Call Us |
| 741 |
262932 |
GEAR, TIMING Price: Call Us |
| 757 |
213998 |
LINK, COUNTERWEIGHT Price: Call Us |
| 758 |
399891 |
COUNTERWEIGHT ASSY Price: Call Us |
| 759 |
298909 |
PIN ASSY, PISTON, STD Price: Call Us |
| 761 |
94593 |
SCREW, COUNTERWEIGHT Price: Call Us |
| 783 |
280104 |
GEAR, STARTER Price: Call Us |
| 801 |
394856 |
CAP, DRIVE Price: Call Us |
| 802 |
497605 |
P/N CONFLICT - CHECK WITH SUPPLIER Price: Call Us |
| 803 |
497604 |
HOUSING, STARTER Price: Call Us |
| 842 |
270920 |
SEAL, OIL FILLER CAP Price: Call Us |
| 847 |
496415 |
P/N CONFLICT - CHECK WITH SUPPLIER Price: Call Us |
| 851 |
224110 |
TERMINAL, IGNITION CABLE Price: Call Us |
| 868 |
494435 |
SEAL ASSEMBLY, VALVE Price: Call Us |
| 868A |
272610 |
GASKET, VALVE Price: Call Us |
| 871 |
262835 |
BUSHING, GUIDE (INTAKE & EXHAUST) Price: Call Us |
| 872 |
281365 |
COVER, AIR CLEANER Price: Call Us |
| 875 |
495862 |
BODY, AIR CLEANER Price: Call Us |
| 877 |
393456 |
DIODE & CONNECTOR ASSY Price: Call Us |
| 947 |
495739 |
SOLENOID Price: Call Us |
| 965 |
94010 |
LOCKNUT, AIR CLEANER MOUNTING Price: Call Us |
| 975 |
495933 |
BOWL ASSEMBLY, CARBURETOR Price: Call Us |
| 977 |
494385 |
CARBURETOR GASKET KIT Price: Call Us |
| 978 |
272888 |
GASKET Price: Call Us |
| 979 |
496745 |
COVER, OIL PUMP Price: Call Us |
| 982 |
94773 |
SCREW, SEMS Price: Call Us |
| 987 |
281166 |
SEAL, THROTTLE SHAFT Price: Call Us |
| 1000 |
224968 |
BRACKET, BLOWER HOUSING, FRONT Price: Call Us |
| 1000A |
224969 |
BRACKET, BLOWER HOUSING, REAR Price: Call Us |
| 1005 |
281400 |
FAN, FLYWHEEL Price: Call Us |
| 1006 |
224413 |
RETAINER, FAN Price: Call Us |
| 1019 |
496758 |
LABEL KIT Price: Call Us |
| 1022 |
272475 |
GASKET, COVER Price: Call Us |
| 1023 |
214314 |
COVER, ROCKER ARM Price: Call Us |
| 1024 |
493884 |
PUMP, OIL Price: Call Us |
| 1026 |
494432 |
ROD, PUSH, INTAKE Price: Call Us |
| 1027 |
491056 |
FILTER, OIL Price: Call Us |
| 1028 |
496744 |
ADAPTER, OIL FILTER Price: Call Us |
| 1029 |
224554 |
ARM, ROCKER Price: Call Us |
| 1033 |
495992 |
VALVE OVERHAUL KIT Price: Call Us |
| 1034 |
495248 |
GUIDE ASSEMBLY, PUSH ROD Price: Call Us |
| 1044 |
94673 |
SCREW, SHOULDER, HEX HEAD Price: Call Us |
| 1054 |
270723 |
TIE, CABLE Price: Call Us |
| 1055 |
231931 |
TUBE, OIL PUMP Price: Call Us |
| 1058 |
272904 |
MANUAL OWNERS Price: Call Us |
| 94196 |
KEY, |
TIMING GEAR Price: Call Us 94196 |
| 271996 |
GASKET, |
CRANKCASE COVER .009" Price: Call Us 271996 |
| 271997 |
GASKET, |
CRANKCASE COVER .005" Price: Call Us 271997 |
| 391286 |
PIN |
ASSEMBLY, PISTON .005" OVER Price: Call Us 391286 |
| 495136 |
ROD, |
PUSH, EXHAUST Price: Call Us 495136 |
| 495490 |
ROD |
ASSY, CONNECTING Price: Call Us 495490 |
| 495851 |
RING |
SET, PISTON, .020" OVERSIZE Price: Call Us 495851 |
| 495852 |
RING |
SET, PISTON, .010" OVERSIZE Price: Call Us 495852 |
| 495855 |
RING |
SET, PISTON, .030" OVERSIZE Price: Call Us 495855 |
| 495977 |
PISTON |
ASSY .010" OVERSIZE Price: Call Us 495977 |
| 495978 |
PISTON |
ASSY .020" OVERSIZE Price: Call Us 495978 |
| 495979 |
PISTON |
ASSY .030" OVERSIZE Price: Call Us 495979 |
