| Ref | Part Number | Description |
|---|
| 1 |
106-0050 |
LH INNER COVER ASM This part replaces 69-6800. Price: $186.64 |
| 1 |

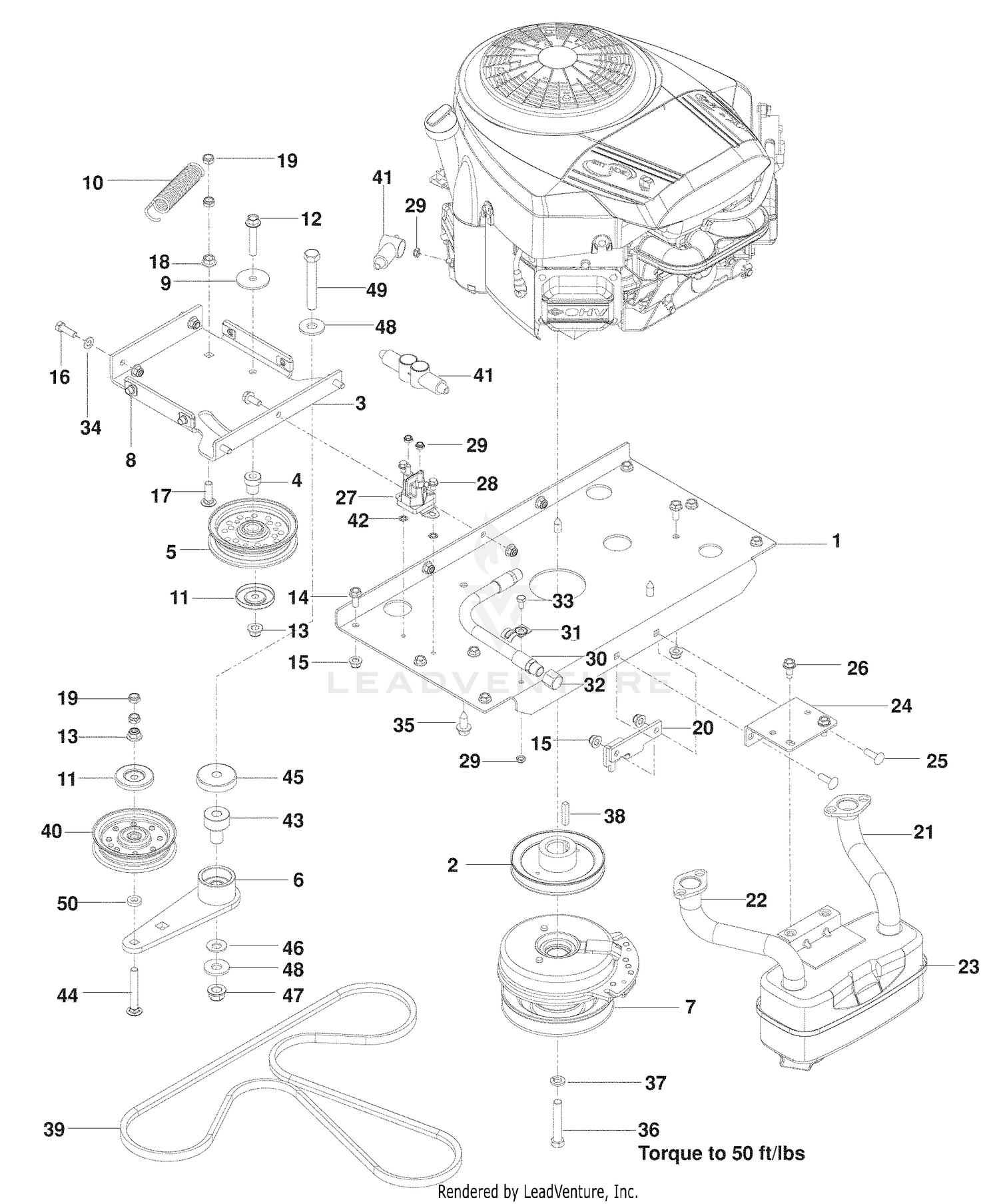

575608801 |
PLATE, ENGINE W/DECALS Price: $179.99 |
| 2 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 2 |
574811001 |
PULLEY, V, 1.125 BORE Price: $39.99 |
| 3 |
574846402 |
PLATE, IDLER, BLK Price: $79.99 |
| 3 |
69-6360-01 |
PLATE-GEARBOX, LH ASM Price: $258.21 |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 4 |
525435601 |
PIVOT, IDLER Price: $5.99 |
| 5 |
237-81 |
O-RING Price: $2.76 |
| 5 |
596739801 |
PULLEYS This part replaces 539976688. Price: $29.99 |
| 6 |
340-8 |
FITTING-STRAIGHT Price: $9.70 |
| 6 |
510041603 |
ARM, IDLER, STEEL, W/BGS Price: $49.99 |
| 7 |
237-65 |
O-RING Price: $2.50 |
| 7 |
574607001 |
CLUTCH 200 FT LB Price: $379.99 |
| 8 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 8 |
93-9918 |
HYD HOSE ASM Price: $441.28 |
| 9 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 9 |
93-9917 |
HYD HOSE ASM Price: $241.67 |
| 10 |
237-22 |
O-RING Price: $2.43 |
| 10 |
510254402 |
Springs This part replaces 510254401. Price: $5.99 |
| 11 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 11 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 12 |
237-42 |
O-RING Price: $2.78 |
| 12 |
525866201 |
HHFS 3/8-16 X 2.0 GD 5 Price: $3.99 |
| 13 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 13 |
94-4907 |
MOTOR-HYD Price: $1,685.80 |
| 14 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 14 |
63-0660 |
GEARBOX PULLEY WA This part replaces 63-0660-03. Price: $80.31 |
| 15 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 15 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 16 |
106-0051 |
LH OUTER COVER ASM This part replaces 69-6810. Price: $251.73 |
| 16 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 17 |
3269-25 |
RIVET-POP Price: $0.27 |
| 17 |
539100413 |
RHSNB 3/8-16 X 1-1/4 Price: $2.99 |
| 18 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 18 |
69-6870 |
PLATE-MAGNET Price: $4.91 |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 19 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 20 |
575017305 |
STOP CLUTCH STOP This part replaces 575017302. Price: $12.99 |
| 20 |
69-6260 |
MAGNET Price: $58.32 |
| 21 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 21 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 22 |
3233-30 |
SCREW-CARR Price: $3.26 |
| 22 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 23 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 23 |
69-6960 |
SPACER-IDLER Price: $22.57 |
| 24 |
140-5848 |
PULLEY-IDLER This part replaces 63-1540-03. Price: $62.48 |
| 24 |
575229902 |
BRKT, MUFFLER, BLK Price: $29.99 |
| 25 |
32128-23 |
NUT-HF Price: $1.51 |
| 25 |
596435701 |
Bolts This part replaces 539107271. Price: $2.99 |
| 26 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 27 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 27 |
539101714 |
SOLENOID Price: $22.99 |
| 28 |
596582701 |
Screws This part replaces 539990302. Price: $2.99 |
| 28 |
95-0845 |
DECAL-HOC Price: $11.75 |
| 29 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
539101363 |
CLAMP Price: $2.99 |
| 32 |
539101364 |
DRAIN CAP Price: $5.99 |
| 32 |
99-4442 |
FITTING-TEE Price: $73.84 |
| 33 |
596437001 |
Screws This part replaces 539990071. Price: $2.99 |
| 33 |
99-4443 |
FITTING Price: $27.38 |
| 34 |
354-79 |
CAP-DUST Price: $7.81 |
| 34 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 35 |
817120616 |
SCREW 3/8-16X1 This part replaces 532120616. Price: $4.99 |
| 36 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 37 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 38 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 39 |
574870901 |
BELT, HYDRO, 3400 Price: $34.99 |
| 40 |
596481401 |
Pulleys This part replaces 539107620. Price: $22.99 |
| 41 |
539102759 |
INSULATOR Price: $3.99 |
| 42 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 43 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 44 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 45 |
596394601 |
Shields This part replaces 539114662. Price: $2.99 |
| 46 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 47 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 48 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 49 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 50 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
