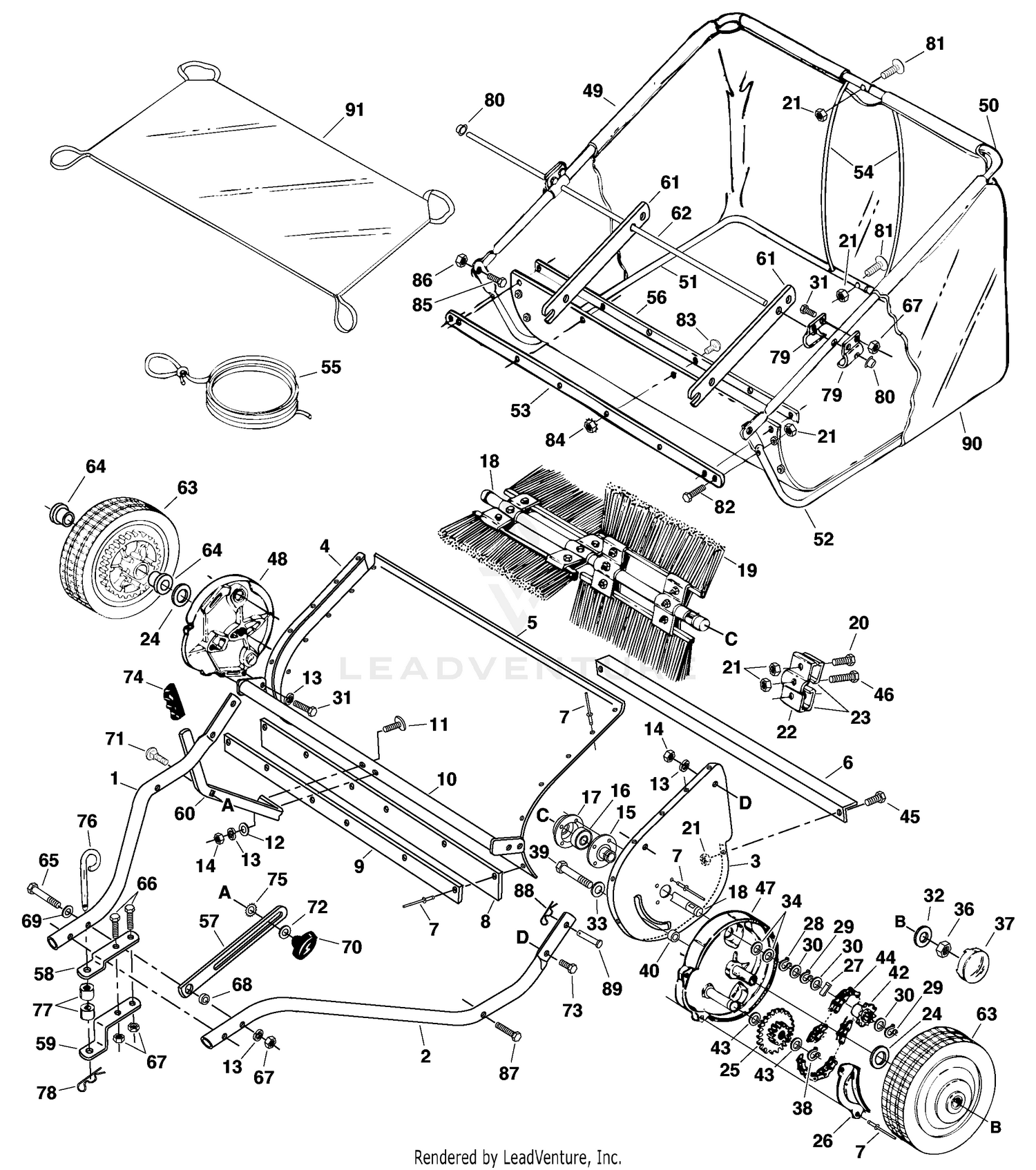

High Performance Lawnsweeper
Parts (105)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 531007409 | ROD Price: $54.99 |
| 1 | 531007410 | ROD Price: $59.99 |
| 2 | 531007411 | ROD Price: $42.63 |
| 2 | 531007412 | ROD Price: $59.99 |
| 3 | 531002808 | PLATE, L.H. Price: $27.73 |
| 4 | 531002809 | PLATE, R.H. Price: $31.53 |
| 5 | 531007413 | PLATE Price: $100.99 |
| 5 | 531007414 | PLATE Price: $62.99 |
| 6 | 531007415 | SUPPORT Price: $17.99 |
| 6 | 531007416 | SUPPORT Price: $23.99 |
| 7 | 722785402 | Rivet This part replaces 722787003. Price: $2.99 |
| 8 | 506622201 | SKIRT Price: $15.25 |
| 8 | 531007617 | LIST Price: $17.99 |
| 9 | 531007417 | Skirt Retainer 38" Price: Call Us |
| 9 | 531007609 | HOLDER Price: $15.99 |
| 10 | 531007418 | CONTROL Price: $66.99 |
| 10 | 531007419 | CONTROL Price: $65.99 |
| 11 | 531002815 | Curved Hd. Bolt 5/16-18 x 1-5/8" Price: $2.93 |
| 12 | 531002816 | WASHER Price: $1.52 |
| 13 | 735116405 | WASHER Price: $3.99 |
| 14 | 596436301 | Nuts This part replaces 873220500. Price: $2.99 |
| 15 | 506620201 | BRUSH BUSHING ASSY Price: $73.72 |
| 16 | 601002178 | This part replaces 531002817. Price: $20.07 |
| 17 | 506620401 | BEARING RETAINER Price: $24.99 |
| 18 | 531007615 | SHAFT Price: $65.11 |
| 18 | 601002177 | This part replaces 506620501. Price: $56.23 |
| 19 | 531007420 | BRUSH Price: $19.62 |
| 19 | 531007421 | BRUSH Price: $34.99 |
| 20 | 725237071 | SCREW This part replaces 725237051. Price: $3.99 |
| 21 | 531007629 | NUT Price: $1.99 |
| 22 | 506620601 | BRUSHRETAINER DOUBLE Price: $7.99 |
| 23 | 506620701 | BRUSH RETAINER SINGLE Price: $11.99 |
| 24 | 531002741 | Flat Washer 1-1/4" x .78 I.D. Price: $4.32 |
| 25 | 601001940 | This part replaces 506621701. Price: $36.66 |
| 26 | 506621801 | Dust Cover Price: $16.32 |
| 27 | 506621901 | PAWL Price: $10.65 |
| 28 | 506622301 | Retaining Ring 3/4" Price: $5.25 |
| 29 | 506622401 | Retaining Ring .594" I.D. Price: $4.77 |
| 30 | 506622501 | SHIM WASHER Price: $0.99 |
| 31 | 596030501 | SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 32 | 734117341 | Flat Washer 1-1/2" x .375" x .062" Price: $2.24 |
| 33 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 34 | 819251816 | WASHER T This part replaces 506624701. Price: $4.99 |
| 36 | 873610600 | NUT This part replaces 506622901. Price: $2.99 |
| 37 | 506623001 | HUB CAP Price: $8.99 |
| 38 | 506623101 | RETAINING RING 1/2Ä Price: $5.05 |
| 39 | 874610652 | This part replaces 506623301. Price: $1.51 |
| 40 | 506626601 | Spacer 13/32" x 5/8" x 3/16" Price: $15.23 |
| 42 | 506623501 | RATCHET SPROCKET Price: $54.99 |
| 43 | 506623601 | Washer 1/2" x 1" x .02" Price: $3.36 |
| 44 | 531002745 | ROLLERCHAIN 3/8X1/2" Price: $17.99 |
| 45 | 531002821 | Hex Bolt, 1/4-20 x 1/2" Price: $1.52 |
| 46 | 531007626 | BOLT Price: $1.99 |
| 47 | 531002744 | SHIELD Price: $166.56 |
| 48 | 531002743 | Wheel Drive Housing Ass'y. R.H. Price: $54.37 |
| 49 | 506623801 | UPPER HOPPER TUBE R-H Price: $31.65 |
| 49 | 531007603 | PIPE Price: $40.90 |
| 50 | 506623901 | UPPER HOPPER TUBE L-H Price: $33.45 |
| 50 | 531007602 | PIPE Price: $44.99 |
| 51 | 506624201 | LOWER HOPPER TUBE R-H Price: $31.65 |
| 51 | 531007604 | PIPE Price: $47.99 |
| 52 | 506624301 | LOWER HOPPER TUBE L-H Price: $33.45 |
| 52 | 531007605 | PIPE Price: $49.99 |
| 53 | 506621501 | BAG FRAME STRAP Price: $54.99 |
| 53 | 531007614 | STRAP Price: $34.99 |
| 54 | 506624401 | HOPPER SUPPORT ROD Price: $9.99 |
| 55 | 531002734 | ROPE Price: $12.99 |
| 56 | 506620901 | SKIRT AND BAG RETAINER Price: $12.82 |
| 56 | 531007609 | HOLDER Price: $15.99 |
| 57 | 531002828 | ARM Price: $19.99 |
| 58 | 531002772 | Hitch Bracket Price: $46.33 |
| 59 | 506621201 | HITCH BRACKET Price: $29.99 |
| 60 | 531002831 | Height Adjustment Handle Price: $25.50 |
| 61 | 531007423 | ARM Price: $24.99 |
| 62 | 531007424 | ROD Price: $22.99 |
| 62 | 531007425 | ROD Price: $22.99 |
| 63 | 601001889 | WHEEL & TIRE ASS'Y CPL This part replaces 531002746. Price: $100.99 |
| 64 | 506625401 | WHEEL BEARING Price: $5.37 |
| 65 | 531002834 | Hex Bolt 5/16-18 x 3" Price: $1.38 |
| 66 | 531002835 | SCREW Price: $5.99 |
| 67 | 531007616 | NUT Price: $2.99 |
| 68 | 531002836 | SPACER Price: $1.38 |
| 69 | 734115201 | WASHER - M6 Price: $2.99 |
| 70 | 506626001 | Wing Knob 5/16-18 Thread Price: $22.27 |
| 71 | 595901601 | GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 72 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 73 | 531007426 | BOLT Price: $1.99 |
| 74 | 506626401 | Rubber Grip Price: $20.50 |
| 75 | 531002839 | WASHER, TOOTH LOCK Price: $1.99 |
| 76 | 506625601 | Hitch Pin Price: $24.08 |
| 77 | 506626501 | Hitch Adjustment Tube Price: $20.57 |
| 78 | 721680251 | R-CLIP Price: $4.99 |
| 79 | 506626701 | HOPPER MOUNTING CLAMPS Price: $32.99 |
| 80 | 531002840 | NUT Price: $1.99 |
| 81 | 725237251 | Curved Head Bolt 1/4-20 x 1" Price: $1.33 |
| 82 | 725237471 | SCREW M6S 6X30 Price: $4.99 |
| 83 | 725232951 | Slotted Truss Head Screw #10-32 x 5/8" Price: $2.99 |
| 84 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 85 | 534200501 | BOLT HEX PATCH 3/8-16X3/4 This part replaces 506625301. Price: $1.99 |
| 86 | 596322601 | Nuts This part replaces 873680600. Price: $2.99 |
| 87 | 522751501 | BOLT This part replaces 531002838. Price: $0.99 |
| 88 | 531004637 | PIN Price: $10.99 |
| 90 | 531002855 | BAG This part replaces 531007606. Price: $192.99 |
| 90 | 601000967 | BAG, HOPPER A-F HI-BAG This part replaces 506624001. Price: $106.12 |
| 91 | 531002856 | SCREEN This part replaces 531007607. Price: $44.99 |
